3 FBD Program
12-36 SmartAXIS Touch User's Manual

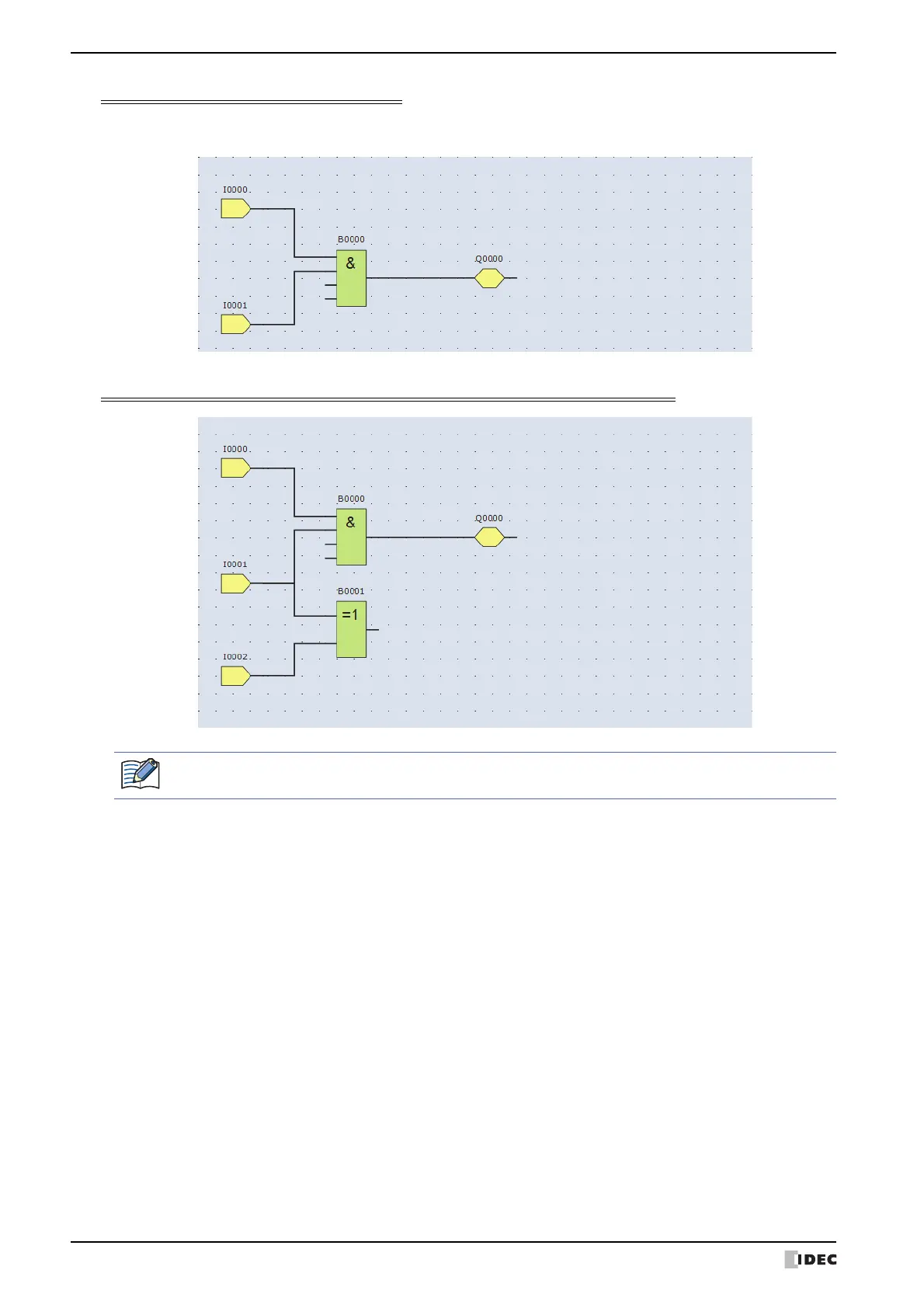

Insert input I1 and connect it to AND B0 input 2
Insert input I1 in the same manner as “Insert input I0” on page 12-33 and connect it with a connection line in the
same manner as “Connect input I0 and AND B0 with a connection line” on page 12-34.
Insert input I2 and XOR B1 and connect input I1 and input I2 to XOR B1 input 1 and input 2
The FB output connectors can be connected to multiple FB input connectors. Multiple FB output connectors
cannot be connected to a single FB input connector.
To Next Page
