4 Using the Data
17-16 SmartAXIS Touch User’s Manual
14

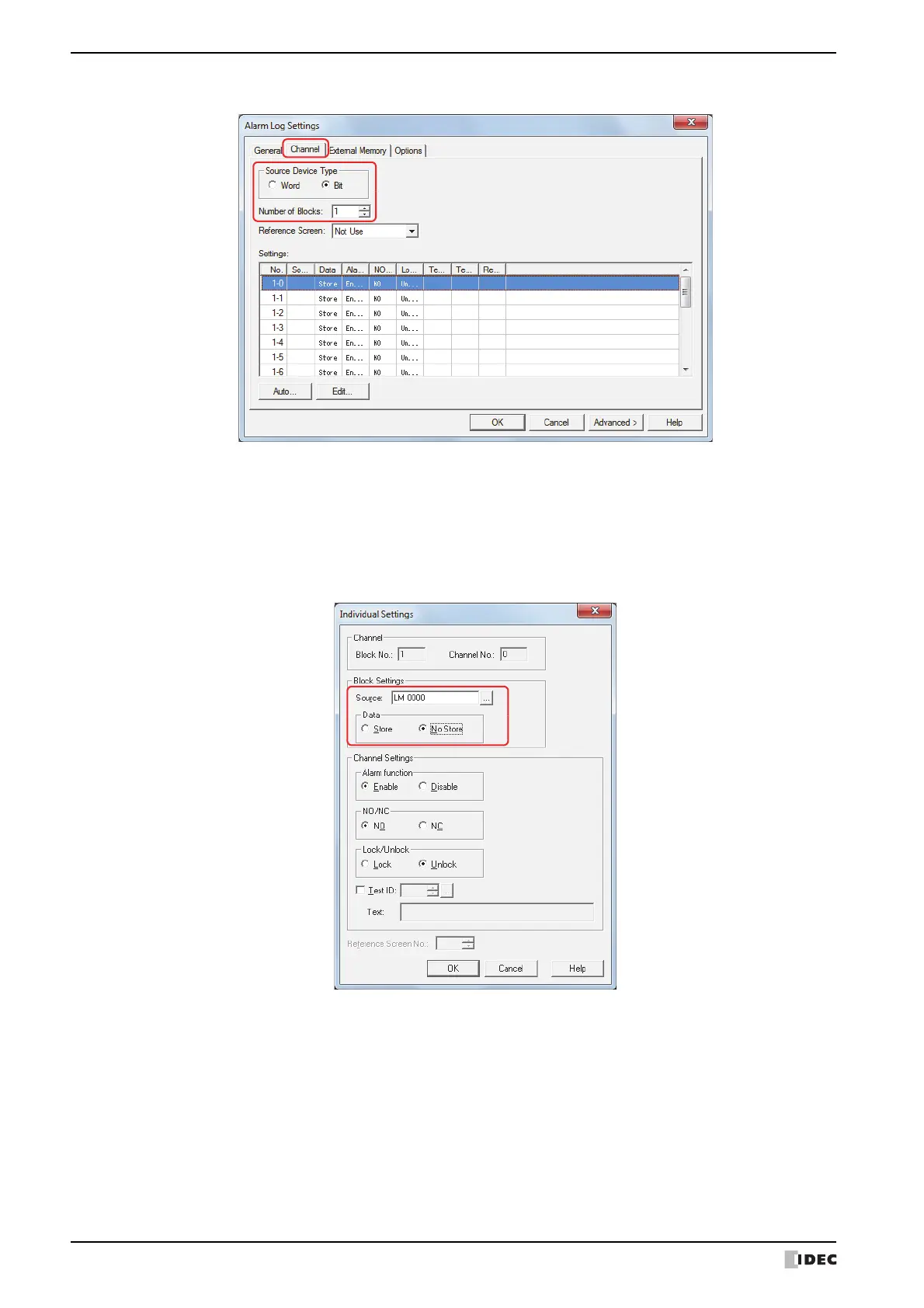

On the Channel tab, under Source Device Type, select Bit and specify Number of Blocks.
15
Select the channel number to register the Level 1 Report Device to, and then click Edit.
The Individual Settings dialog box is displayed.
16
Specify the Level 1 Report Device in Source and select No Store under Data.
Set Source to the Level 1 Report Device configured on the Operation Time tab in the Preventive Maintenance
settings Individual Settings dialog box.
17
Select Enable under Alarm function, select NO under NO/NC, and then click OK.
To Next Page
