IDEC SmartAXIS Touch FT1A Series

2 Security Function Configuration Procedure
21-28 SmartAXIS Touch User’s Manual

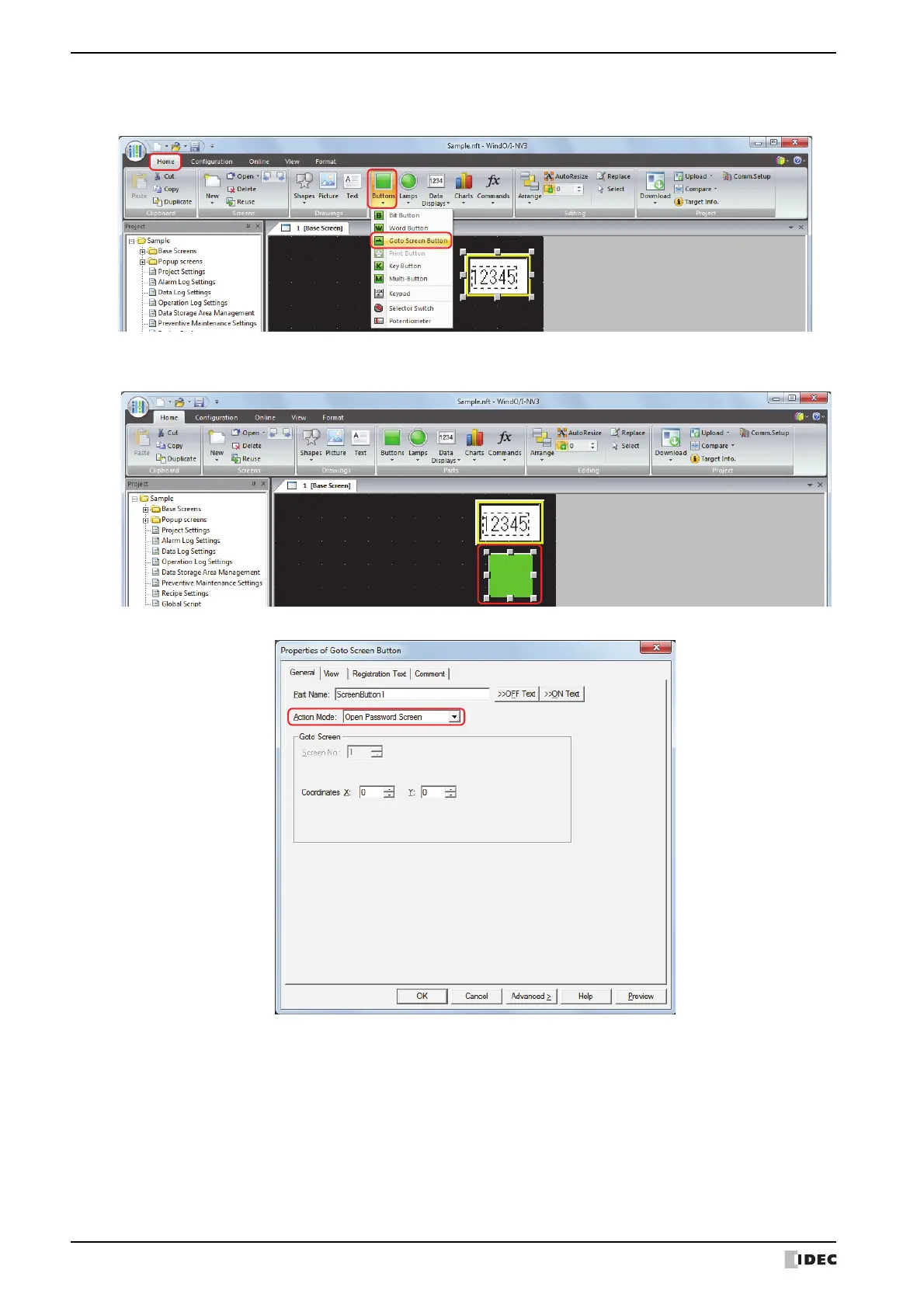

9 Place a Goto Screen Button to display the password screen on the Base Screen.
On the Home tab, in the Parts group, click Buttons, and then click Goto Screen Button.
10 Click a point on the edit screen where you want to place the Goto Screen Button.
11 Double-click the dropped Goto Screen Button and the Properties dialog box is displayed.
12 Select Open Password Screen for Action Mode.
13 Specify the display location in coordinates for the password screen to open above the Base Screen with Coordinates
X, Y.
With the upper-left corner of the screen as the origin, the upper-left corner of the window is the X and Y coordinates.
X: 0 to (Base Screen horizontal size - 1)
Y: 0 to (Base Screen vertical size - 1)
