SEQUENCER > EQ/X-Y/Controllers 1–6: X-Y CC
473
+X [Off…MIDI CC#119]
This assigns the controller sent by the +X X-Y. You can use
this as an AMS source to control Program parameters, or as a
Dmod source to control Effects parameters. It will be grayed
out if the X-Y X Mode, above, is set to Negative.
In addition to the standard list of MIDI controllers, you can
also assign the +X X-Y to duplicate the function of several
front-panel controllers, including JS X, JS+X, JS-X, Knobs
1–6, and SW 1–2.
For instance, if you assign +X to Knob 6, the X-Y’s +X will
use the controller assigned to Knob 6 on the EQ/X-
Y/Controllers– Controllers page.
Finally, you can also assign +X to control the Master
Vo l u m e .
–X [Off…MIDI CC#119]
This assigns the controller sent by the –X X-Y. It will be
grayed out if the X-Y X Mode, above, is set to Positive.
The selections are the same as for +X, above.
X-Y Y Mode [Positive, Negative, Xfade, Split]
This controls the X-Y CC pattern for the Y axis. For more
information, see the description under X-Y X Mode, above.
+Y [Off…MIDI CC#119]
This assigns the controller sent by the +Y X-Y. It will be
grayed out if the X-Y Y Mode, above, is set to Negative.
The selections are the same as for +X, above.
–Y [Off…MIDI CC#119]
This assigns the controller sent by the +Y X-Y. It will be
grayed out if the X-Y Y Mode, above, is set to Positive.
The selections are the same as for +X, above.
X-Y CC Modes
Show Point [X-Y Control,
X-Y Envelope Point 0…4]
You can view the volume and CC values for any of the EG’s
five points. This selects the point whose values will be shown.
CC at Show Point [%]
This read-only display shows the volume values for the current
X-Y point, as selected by the Show Point parameter, above.
Track 01
Enable Song X-Y CC [Off, On]
This controls whether or not the Track will receive the
Song’s X-Y CCs.
If this is On, the Track will receive the CCs, and the Track’s
Program will respond to them according to its own AMS
settings.
If this is Off, the Track will not receive the CCs. This can be
useful if the Song’s X-Y CCs are causing unwanted
modulation, or conflicting with the Program’s own X-Y
CCs.
Enable Program X-Y CC [Off, On]
This controls whether or not the Program’s own X-Y CCs
will be active.
If this is On, the Program’s X-Y CCs and X-Y Envelope will
work as AMS sources, just as they did in PROGRAM mode.
The CCs will not affect any other Tracks, even if they are set
to the same MIDI channel.
Note that. in some cases, the X-Y CCs may have been used
for modulating the Program’s effects via Dmod. This
functionality is not carried into the Song; for modulating the
Song’s effects, use the Song’s X-Y CCs instead.
If this is Off, then the Program’s X-Y CCs will have no
effect. This can be useful if they are conflicting with the
Song’s X-Y CCs.
Tracks 02–16
The settings for Tracks 2–16 are identical to those for Track
01, as described above.
v
1–6: Page Menu Commands
• Compare →p.112
• Memory Status →p.521
• Exclusive Solo →p.113
• Rename Song →p.521
• Initialize Song →p.522
• Copy From Song →p.522
• Load Template Song →p.522
• Save Template Song →p.523
• FF/REW Speed →p.523
• Set Location (for Locate Key) →p.523
• GM Initialize →p.523
• Copy from Combi →p.525
• Copy From Program →p.525
•PAGE →p.126
•MODE →p.126

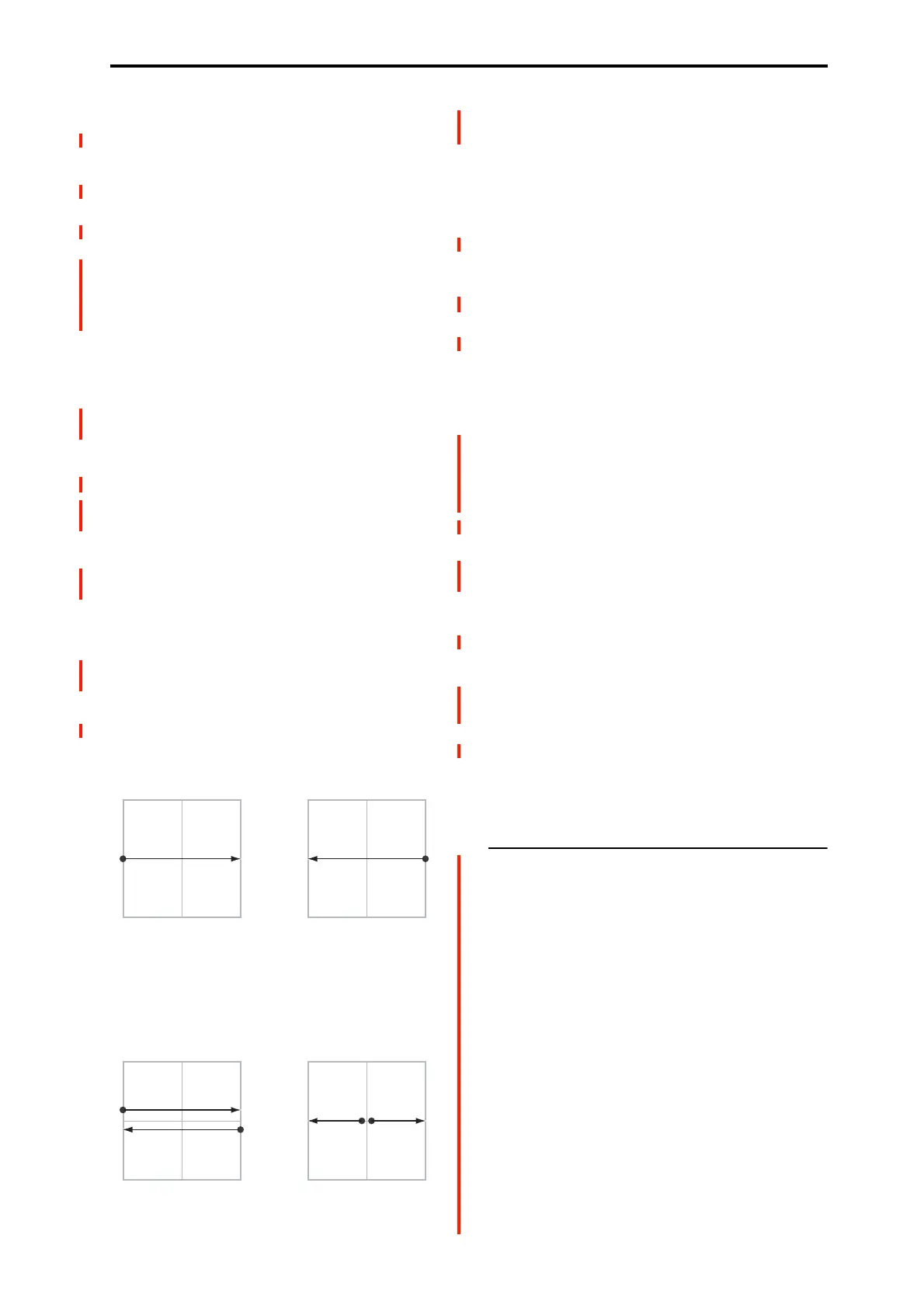

+127–127
X-Axis
0
Positive
+X CC0 127
+127–127
X-Axis
0
Negative
–X CC127 0
+127–127
X-Axis
0
Xfade
+X CC0 127
–X CC0 127
+127–127
X-Axis
0
Split
+X CC
0 127
–X CC
127 0
Generates only +X,
increasing from left to right.
Generates both +X and –X.
One increases as the other
decreases.
Generates both +X and -X.
Both are 0 in the center.
+X increases to the right;
–X increases to the left.
Generates only –X,
increasing from right to left.
