UX Mail Installation
UX Mail Manual Installation 3
1
Installing the UX Mail Blade
Installing the UX Mail Blade
To install the UX Mail Blade:
1. Take adequate anti-static precautions.
1a. You should always wear a grounded wrist strap when installing or removing UX5000 blades.
1b. Be sure the wrist strap is attached to a known electrical service ground (such as the earth ground
lug on the UX5000 chassis).
1c. Discharge any built-up static electricity by touching the chassis earth ground lug.
2. Insert the UX Mail CompactFlash into UX Mail blade as shown below.
3. For any available universal slot, carefully line up the UX Mail blade with the card guides in the chassis.
4. Plug the UX Mail blade into the chassis and and ensure that the blade is firmly seated in the backplane.
5. Tighten the two thumbscrews that secure the UX Mail blade to the chassis.
5a. Take care not to overtighten the thumbscrews.

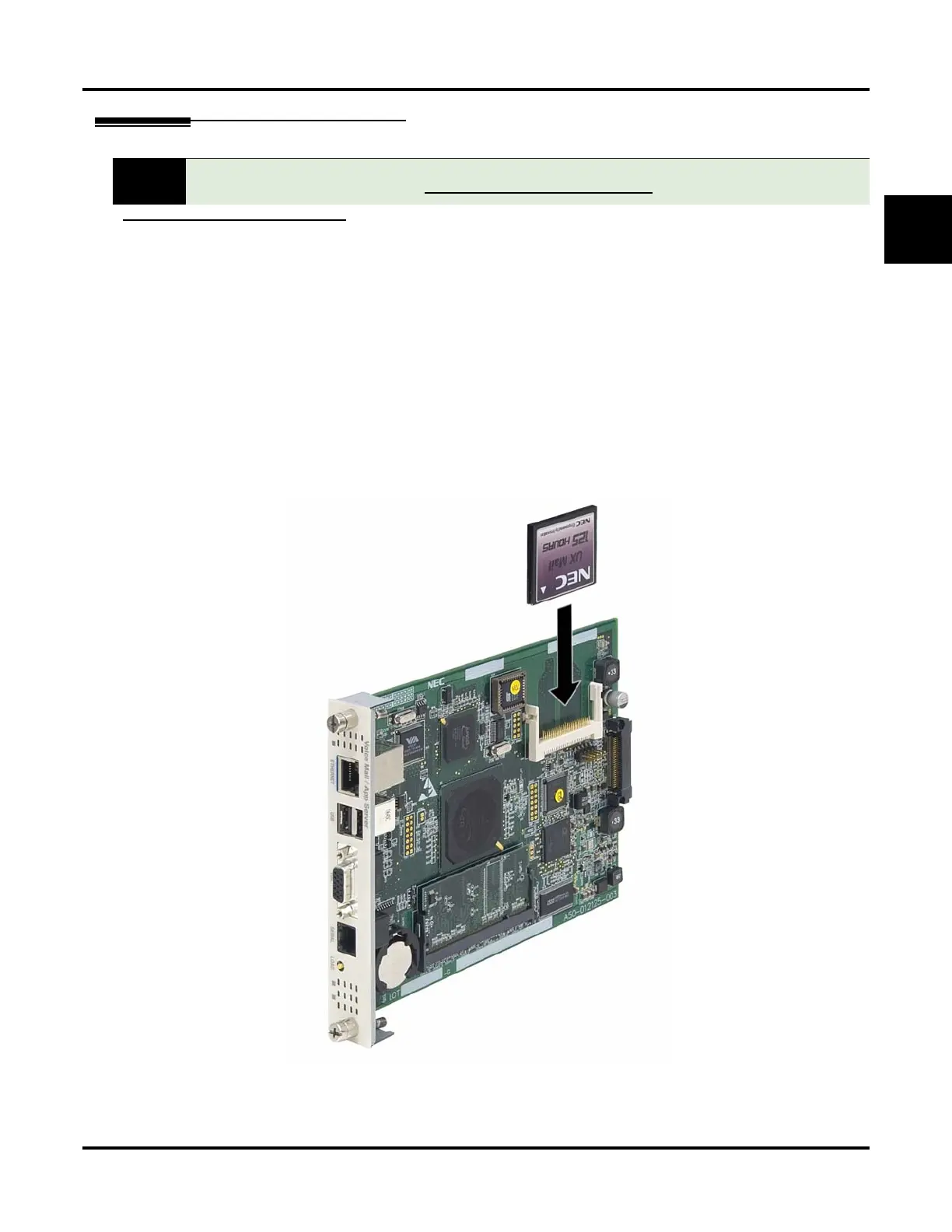

Figure 3: Installing the UX Mail Blade
You can insert the UX Mail “hot” (with power applied) or power down and then insert.
Before powering down, Go to POWERING DOWN THE SYSTEM (OPTIONAL) (PAGE 2).
