Parameters:
<Type> OFF | DIAGrams | SCReen
OFF – touchscreen (e.g. the remote screen) remains active. You
can use the buttons in "Remote" softtool panels. If you switch
back to manual control, the drag and drop functions (e.g. for
markers) are still available.
DIAGrams – lock the drag and drop functions in diagrams .
SCReen – lock the entire screen including the remote screen
buttons.
*RST: n/a (*RST does not affect the tochscreen lock set-
ting).
Example:
SYSTem:TSLock SCReen
Lock the entire screen.
Manual operation: See "Enabled / Lock Diagrams / Lock Screen" on page 696
SYSTem:TTLout<Pt>:STATus[:STATe]
<Boolean>
Defines the default values of CALCulate<Chn>:LIMit:TTLout<Pt>[:STATe] for
new traces.
Suffix:
<Pt>
.
1 - TTL out pass 1 (pin 13 of USER PORT connector)
2 - TTL out pass 2 (pin 14 of USER PORT connector)
Parameters:
<Boolean> OFF (0)
New traces are created with
CALCulate<Chn>:LIMit:TTLout<Pt>[:STATe] set to OFF
(0).
ON (1)
New traces are created with
CALCulate<Chn>:LIMit:TTLout<Pt>[:STATe] set to ON
(1).
*RST: Not affected by *RST; factory default is OFF
Manual operation: See "TTL Pass Default Values" on page 707
SYSTem:USER:DISPlay:TITLe <String>

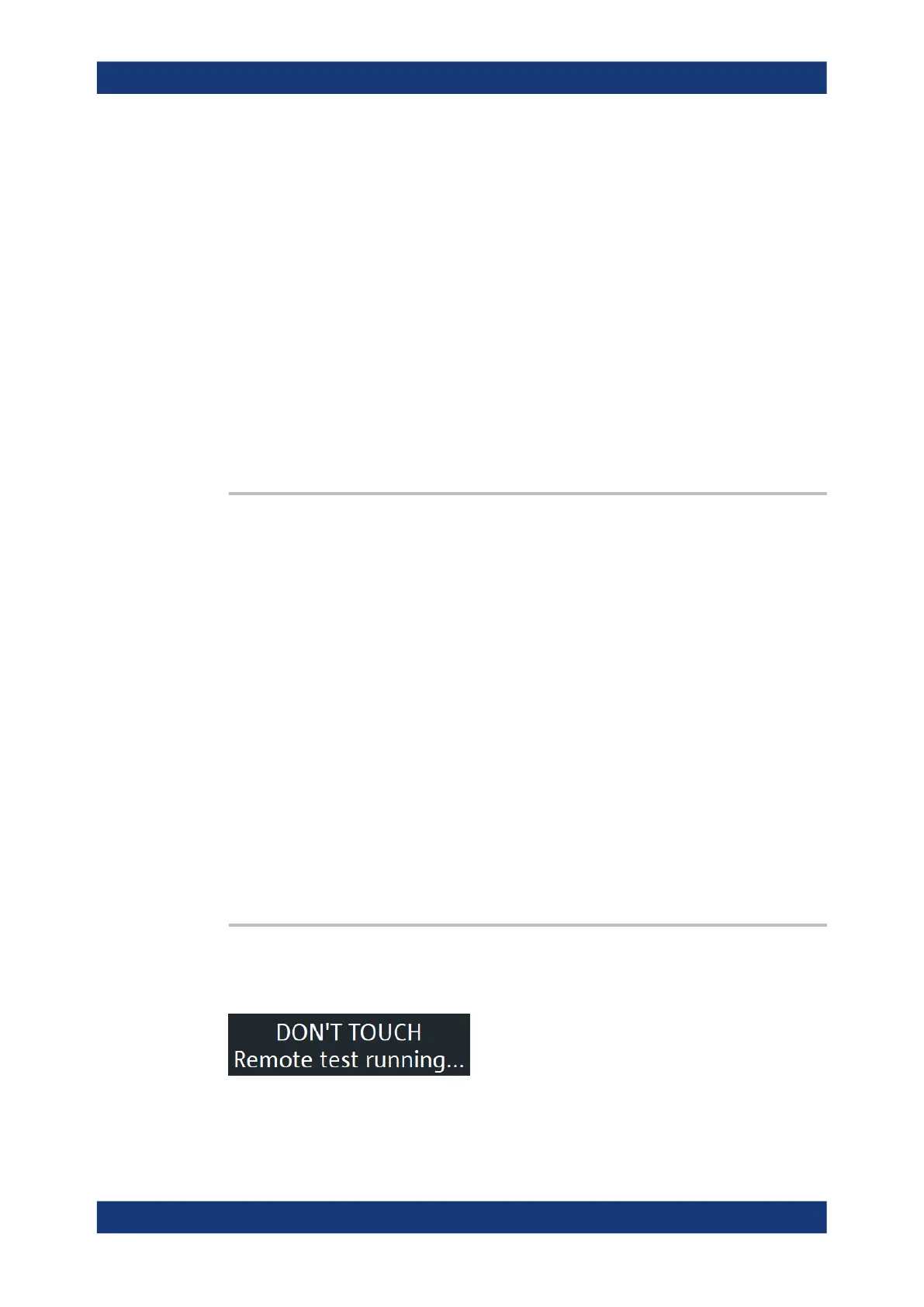

Defines a title for the remote display, i.e. for the screen that is shown at the instrument,
if a remote session is established and the standard display is switched off.
