R&S ZNB - Page 444

GUI Reference
R&S
®
ZNB/ZNBT
444User Manual 1173.9163.02 ─ 55
Remote command:
SOURce<Ch>:POWer<PhyPt>:CORRection[:ACQuire]:VERification:
RESult?
Port Overview
Shows all source ports together with the possible power calibrations.
For each analyzer port P1 ... PN, a "Ref. Receiver", a "Meas. Receiver" and a "Source
Flatness" calibration can be performed.
●

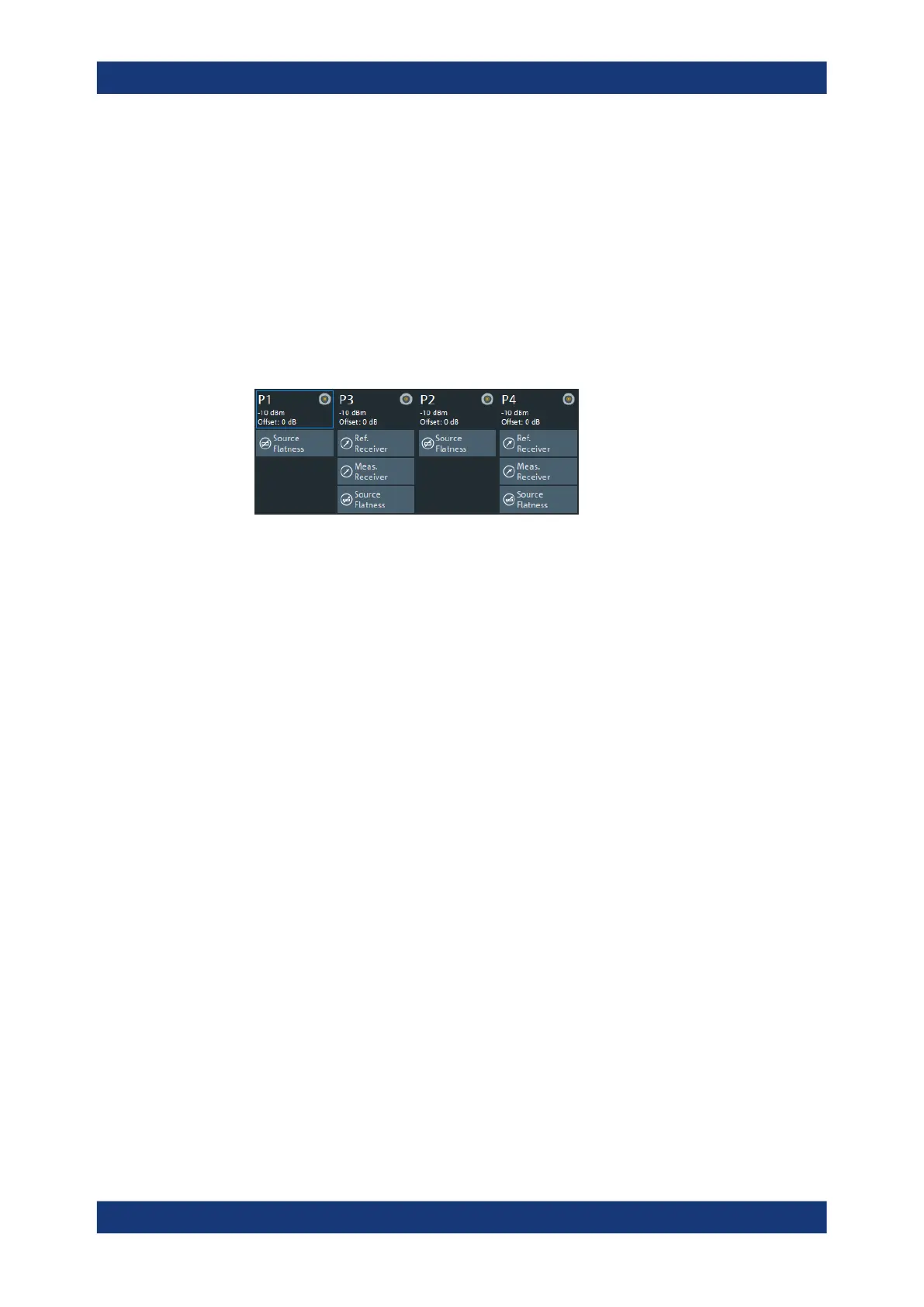

If a "SMARTerCal" is active, additional receiver power calibrations are not allowed
and the R&S ZNB/ZNBT only offers the possibility to perform "Source Flatness"
calibrations of the related test ports:
See Chapter 5.5.7.3, "Combining SMARTerCal with Scalar Power Calibration",
on page 180 for details.
●
If external generators are configured, they appear as additional source ports G1 ...
Gm in the port overview. A source power (flatness) calibration is available at each
generator port.
Select a "Ref. Receiver" or "Meas. Receiver" or "Source Flatness" symbol to start the
related calibration. See "Power Cal Dialog (Ref. Receiver)" on page 445, and "Power
Cal Dialog (Meas. Receiver)" on page 446, and "Power Cal Dialog (Source Flatness)"
on page 447.
A green checkmark indicates that the calibration data has been acquired successfully.
Remote command:
SOURce<Ch>:POWer<PhyPt>:CORRection[:ACQuire]
[SENSe<Ch>:]CORRection:POWer<PhyPt>:ACQuire
SOURce<Ch>:POWer:CORRection:DATA:PARameter<Wv>?
SOURce<Ch>:POWer<PhyPt>:CORRection:DATA:PARameter<Wv>:COUNt?
Apply
Is enabled when a new set of power calibration data has been acquired for either a
"Power" source or a "Meas. Receiver". The button applies all available source and/or
measurement receiver calibrations to the active channel, aborts the verification
sweeps, and closes the port overview section.
The power calibration state is indicated in the trace list, see Chapter 5.5.6.3, "Power
Calibration Labels", on page 177. Use the functions in the Chapter 6.11.4, "Use Cal
Tab", on page 494 to activate, deactivate, or store power calibrations.
Remote command:
SOURce<Ch>:POWer<PhyPt>:CORRection[:ACQuire]
[SENSe<Ch>:]CORRection:POWer<PhyPt>:ACQuire
SOURce<Ch>:POWer:CORRection:DATA
Cal Softtool
