GUI Reference
R&S
®
ZNB/ZNBT
560User Manual 1173.9163.02 ─ 55
Measurement Parameter Channel Name Trace Name
LO[m] Feedthrough
S<j><k>
Ch_LO LO_Thru
<i> = RF test port number, <j> = IF test port number,<k> = LO test port number
[m] = Mixer number (only if 2 mixers are measured)
1)
measured w/o frequency conversion
Note that LO parameters can only be measured if a VNA port was selected as the
respective LO in the previous step. This in turn requires a second internal source
(see Chapter 5.7.13, "Internal Second Source", on page 232).

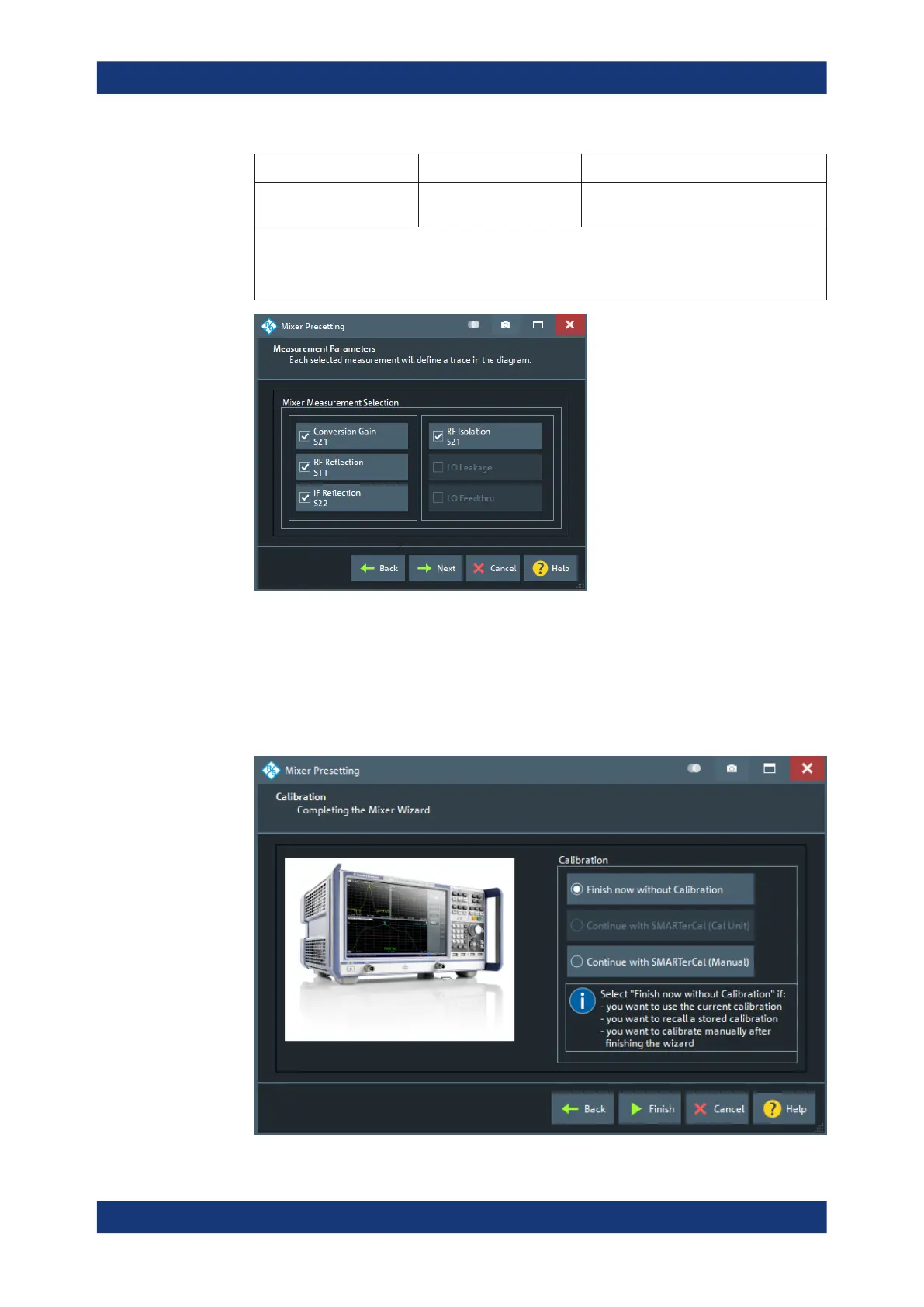

3. The configuration of the mixer measurement is now prepared and can be applied
using the "Finish" button. If changes were made in the previous wizard steps, it is
highly recommended to recalibrate the channel.
Channel Config Softtool
