Common Procedures
SM 3-7 B234/B235/B236/D101/D102/D103
Replacement
Adjustment

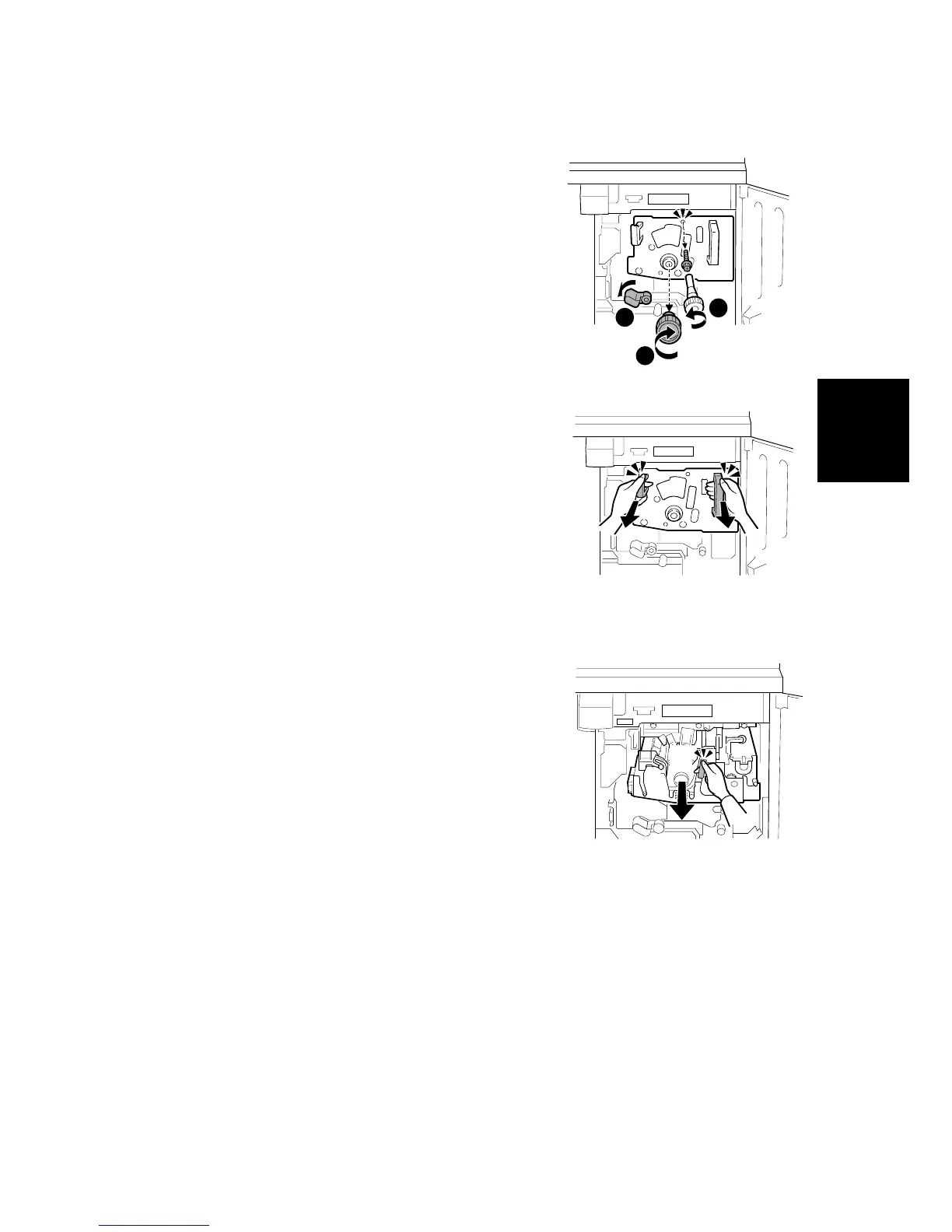

15. Gently lower Lever C1 n.
16. Remove the black screw o ( x1).
17. Rotate the black knob p clockwise and
remove it.
18. Pull the purple handles toward you and remove
the faceplate.
19. Pull the purple handle toward you until the
drawer stops.
NOTE: The development unit n will shift
slightly to the right when you pull the drawer
out.
Important: Use a sheet of clean paper to cover
the slit in the PCU where the drum is visible.
This protects the photo-sensitive surface of the
drum from overhead light and direct sunlight.
1
3
2
B234R904.WMF
B234R913.WMF
B234R914.WMF
n
