SCANNER UNIT
3-40

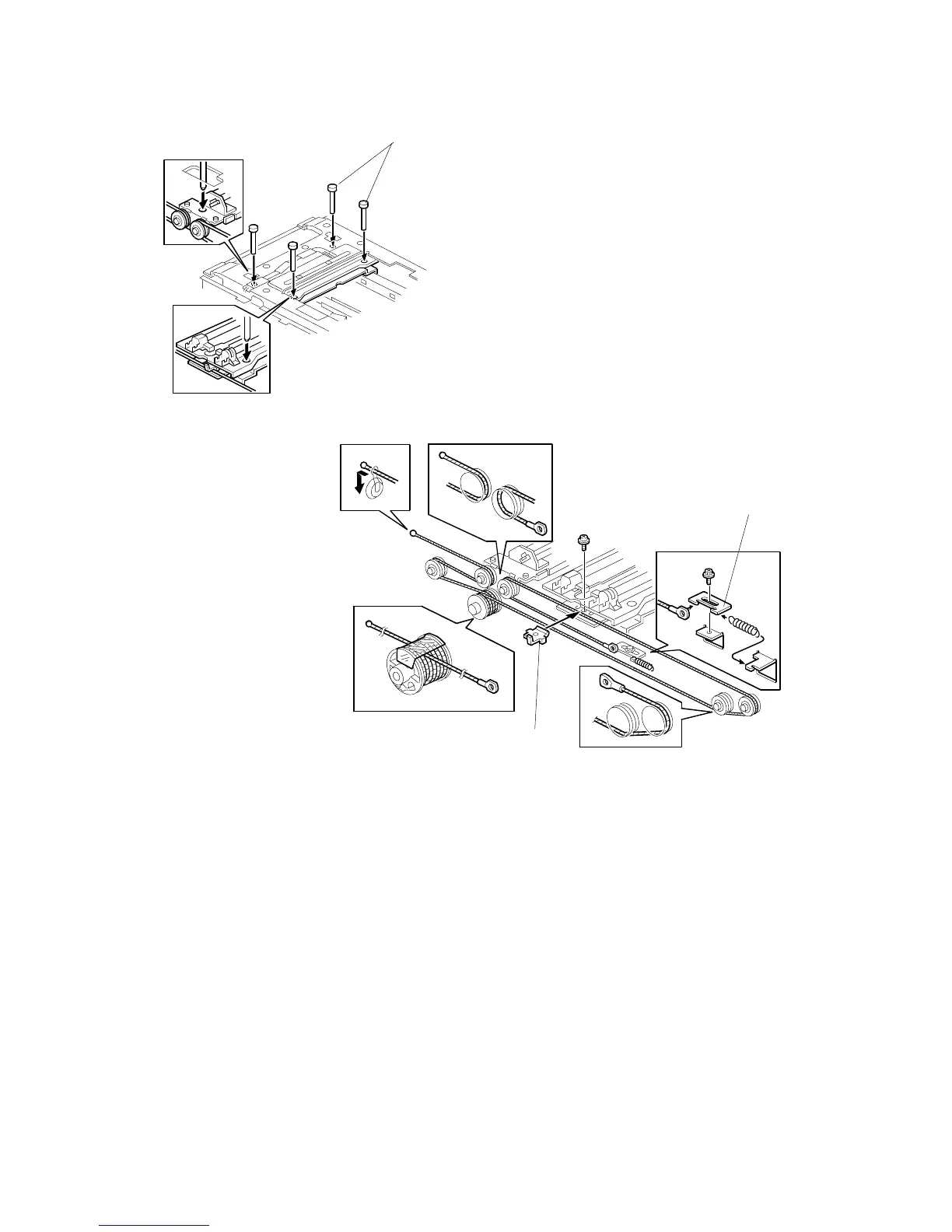

7. Install the 1st scanner and adjust the position with the positioning tools [A].
8. Secure the 1st scanner with the scanner wire bracket [B] ( x 1).
9. Tighten the tension bracket [C] and remove the tape.
10. Remove the positioning tools. After sliding the scanner to the right and left
several times, set the positioning tools to check the scanner wire bracket and
the tension bracket again.
11. Reassemble the scanner and do the scanner and copy adjustments (3.15)
NOTE: The tension of the scanner wire must be adjusted every 3000K. To do
this adjustment, set the positioning tools [A], then loosen the screw [B]
and retighten it.
B234R015.WMF
B234R013.WMF
[A]
[B]
[C]
