Motors
SM 3-179 B234/B235/B236/D101/D102/D103
Replacement
Adjustment

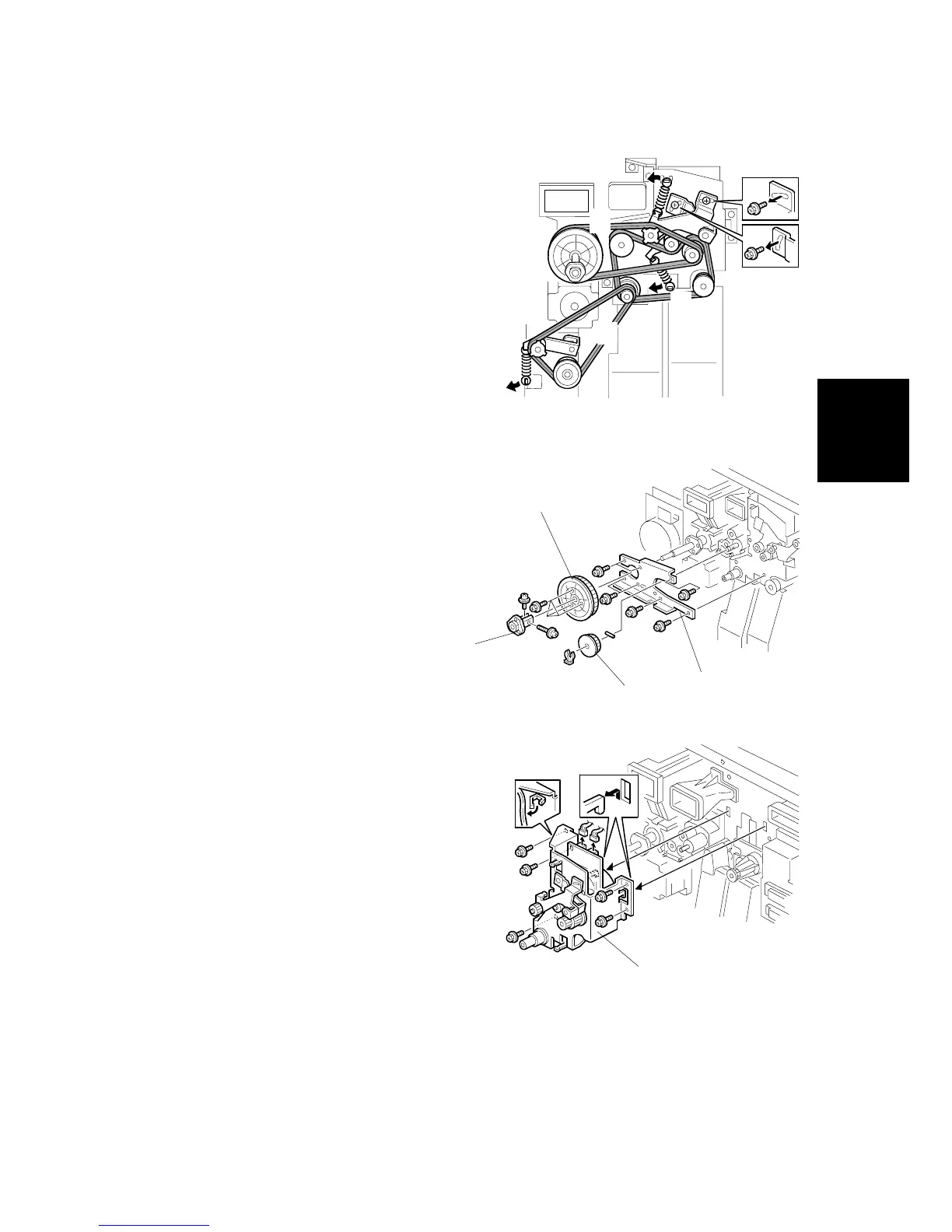

3. Timing belts , , (Springs x3,
x2)
4. Flywheel holder [A] ( x2)
5. Drum pulley [B] ( x3)
6. Cleaning drive pulley [C]
( x1, Pin x1)
7. Drum motor plate [D] (Tapping x4,
x3)
8. Drum motor unit [E]
( x2, = x1, x5)
9. Drum motor ( x4)
B234R962.WMF
B234R963.WMF
B234R964.WMF
[A]
[B]
[C]
[D]
[E]
To Next Page
