COPIER (B234/B235/B236/D101/D102/D103)
SM 1-21 B234/B235/B236/D101/D102/D103
Installation

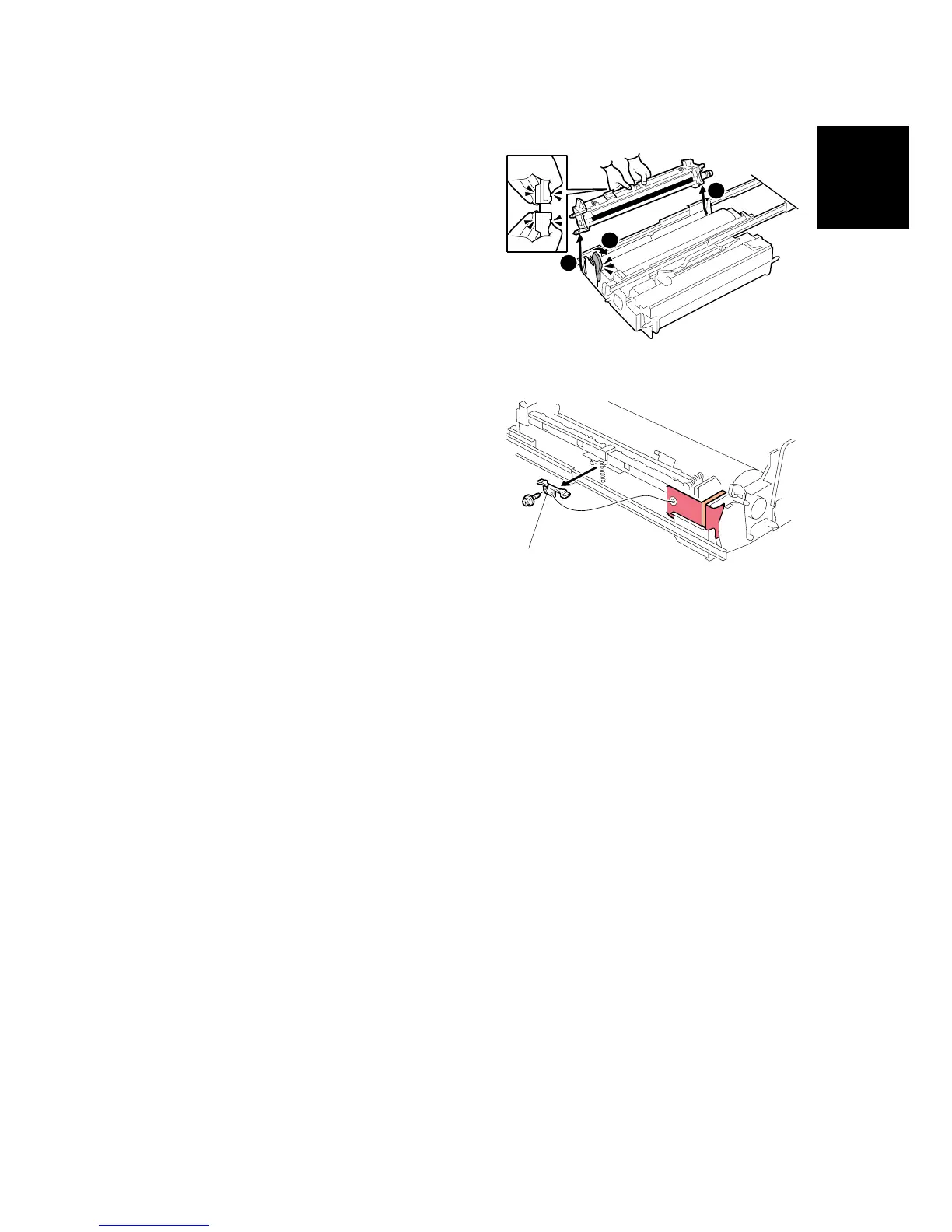

8. Remove the drum cleaning unit.
Raise the purple lever n and pull
the cleaning unit to the left o until it
disengages the lever
Lift the unit out of the drawer
Important: Grasp the cleaning unit by
its handles as shown and lift it straight
up.
9. Remove the retainer [A] from the
cleaning unit ( x1).
1
2
2
B234I113.WMF
B234I117.WMF
[A]
