To supply power 24 hours a day
Doing the connection in the previous procedure assures that power is supplied to
the machine for the heaters even after the copier is switched off with the main
power switch (for example, in auto off mode). However, with only this connection,
the heaters do not operate while the copier is operating.
Another connection can be done so the heaters in the paper tray unit will switch on
and off while the copier is operating. This connection will also allow the LCT heater
(option) to operate while the copier is switched off with the main power switch (for
example, in auto off mode). In energy saver and low power modes, the heaters
switch off.
1. Remove the small connector [A] from the relay connector, then connect it to
connector CN606.
2. Clamp the relay connector [B] to bracket of the AC drive board.
3. Connect the large connector [C] to connector CN602 as described in the
previous procedure.

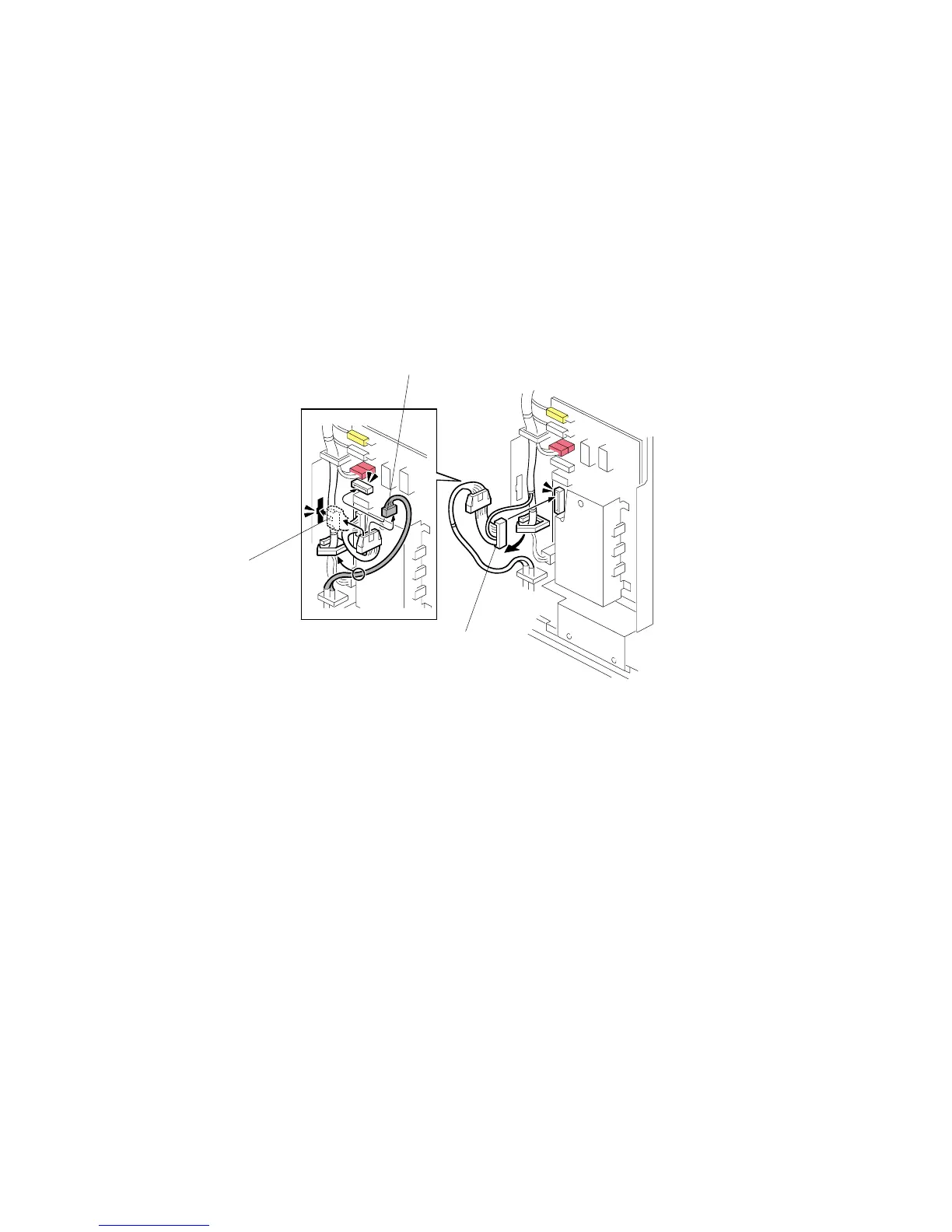

B234I391.WMF
[A]
[B]
[C]
