SCANNING
SM 6-31 B234/B235/B236/D101/D102/D103
Detailed
Descriptions
6.7 SCANNING

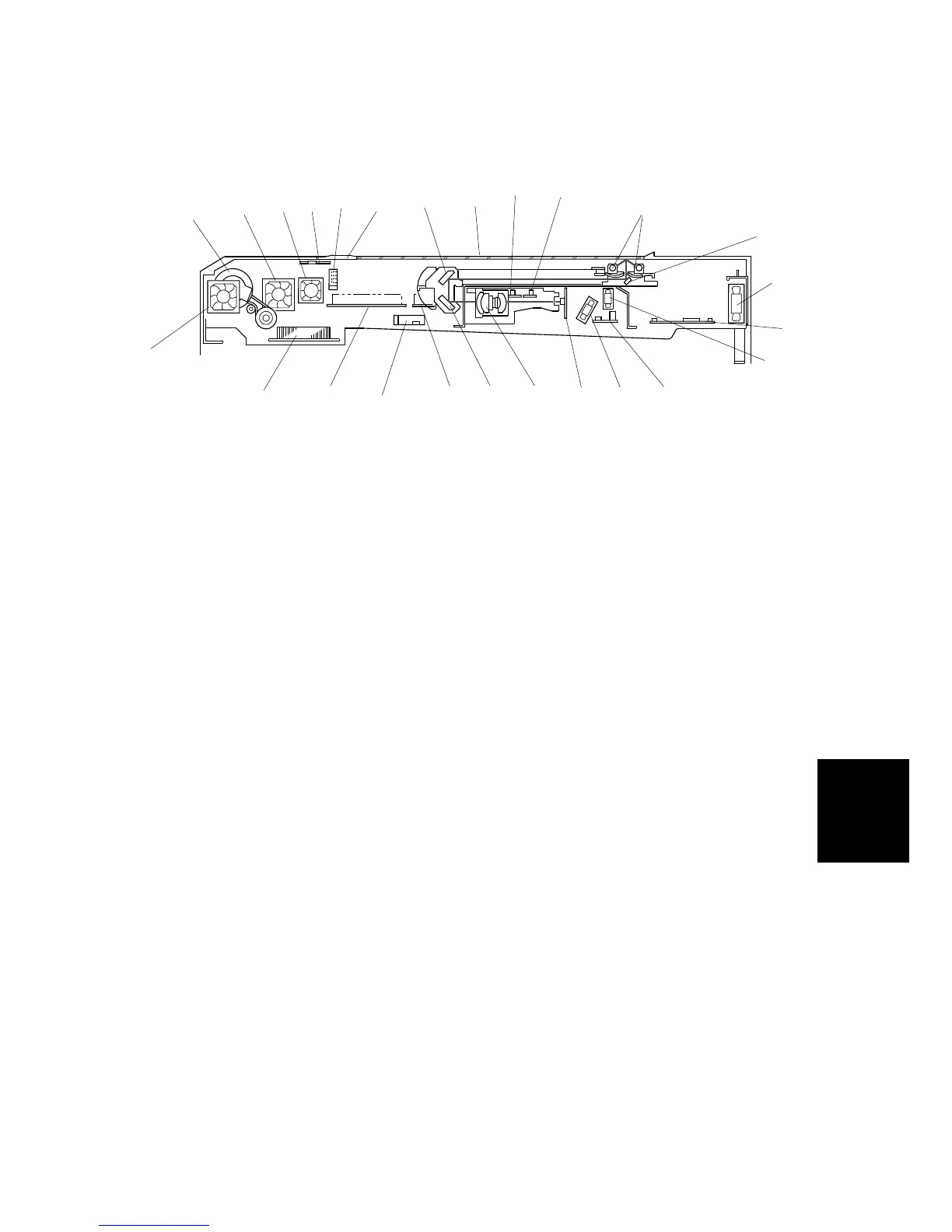

6.7.1 OVERVIEW
1. Scanner Motor
2. Optics Exhaust Fan
3. Lamp Regulator Fan (Left)
4. Thermistor
5. Scanner HP Sensor
6. White Plate (on exposure glass)
7. 2nd Mirror
8. Exposure Glass
9. Original Length Sensors 1 (APS)
10. Original Length Sensors 2 (APS)
11. Exposure Lamps (x2 Xenon)
12. 1st Mirror
13. Optics Intake Fan
14. SIB (Scanner Interface Board)
15. Lamp Regulator Fan (Right)
16. Connector Board
17. SBU (CCD) Cooling Fan
18. SBU (CCD)
19. Scanner Lens
20. 3rd Mirror
21. Lamp Regulator (Right)
22. Original Width Sensors 1, 2, 3
(APS)
23. Lamp Regulator (Left)
24. MCU
25. Scanner Motor Cooling Fan
B234D001.WMF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
