LCIT RT5010 (B834)
SM 1-61 B234/B235/B236/D101/D102/D103
Installation

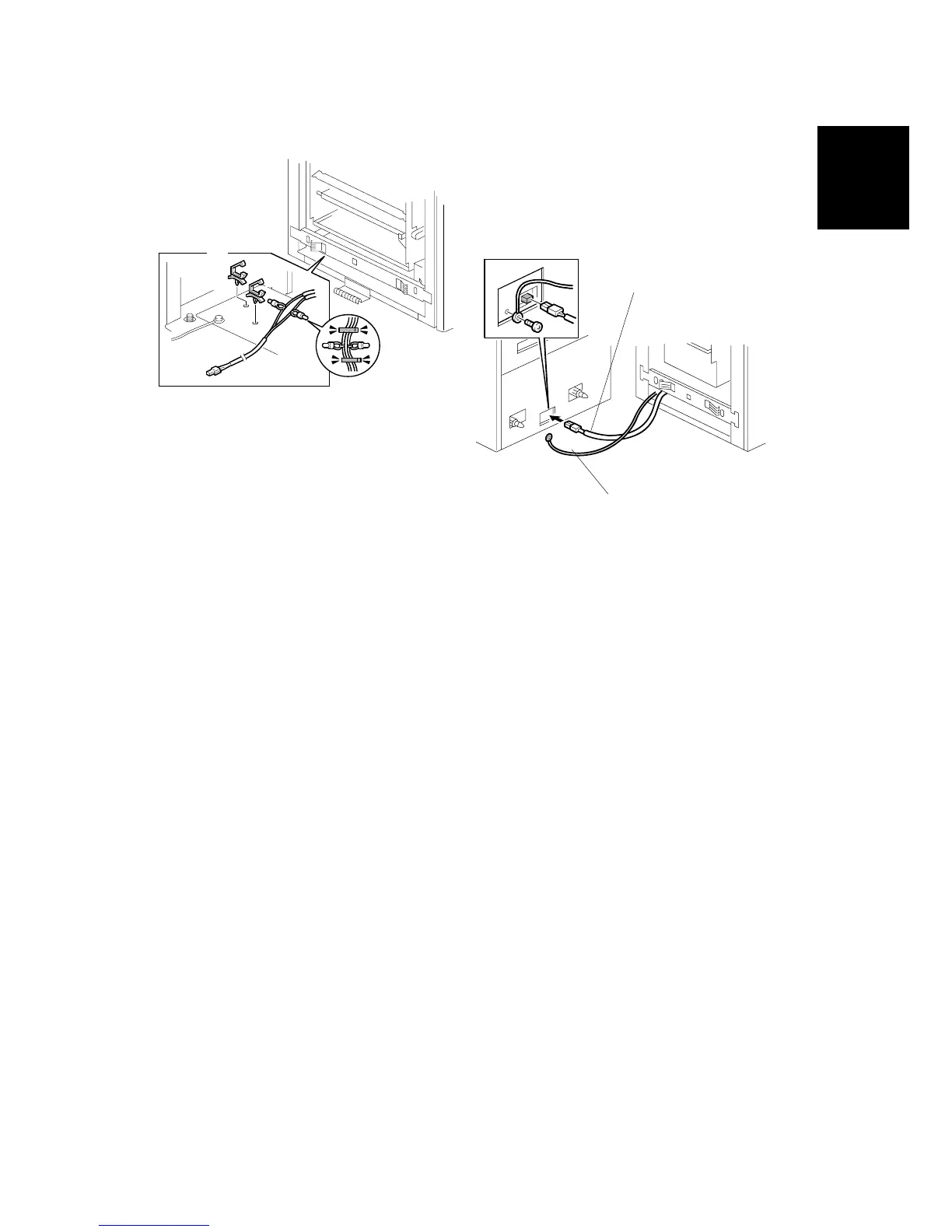

16. Attach the harness clamps , to the LCT.
17. Set the harnesses in the clamps, then close them (=x2).
18. Attach the LCT relay harness [A] to the mainframe.
19. Reconnect the ground wire [B] to the mainframe ( x1).
20. Dock the LCT to the mainframe.
• Lock bar ( x1)
• Interface cable
NOTE: Confirm that neither the relay harness nor ground wire is pinched
between the mainframe and the LCT.
B834I123.WMF
B834I124.WMF
[A]
[B]
