General-purpose timers (TIM2 to TIM5) RM0008

356/1096 Doc ID 13902 Rev 12

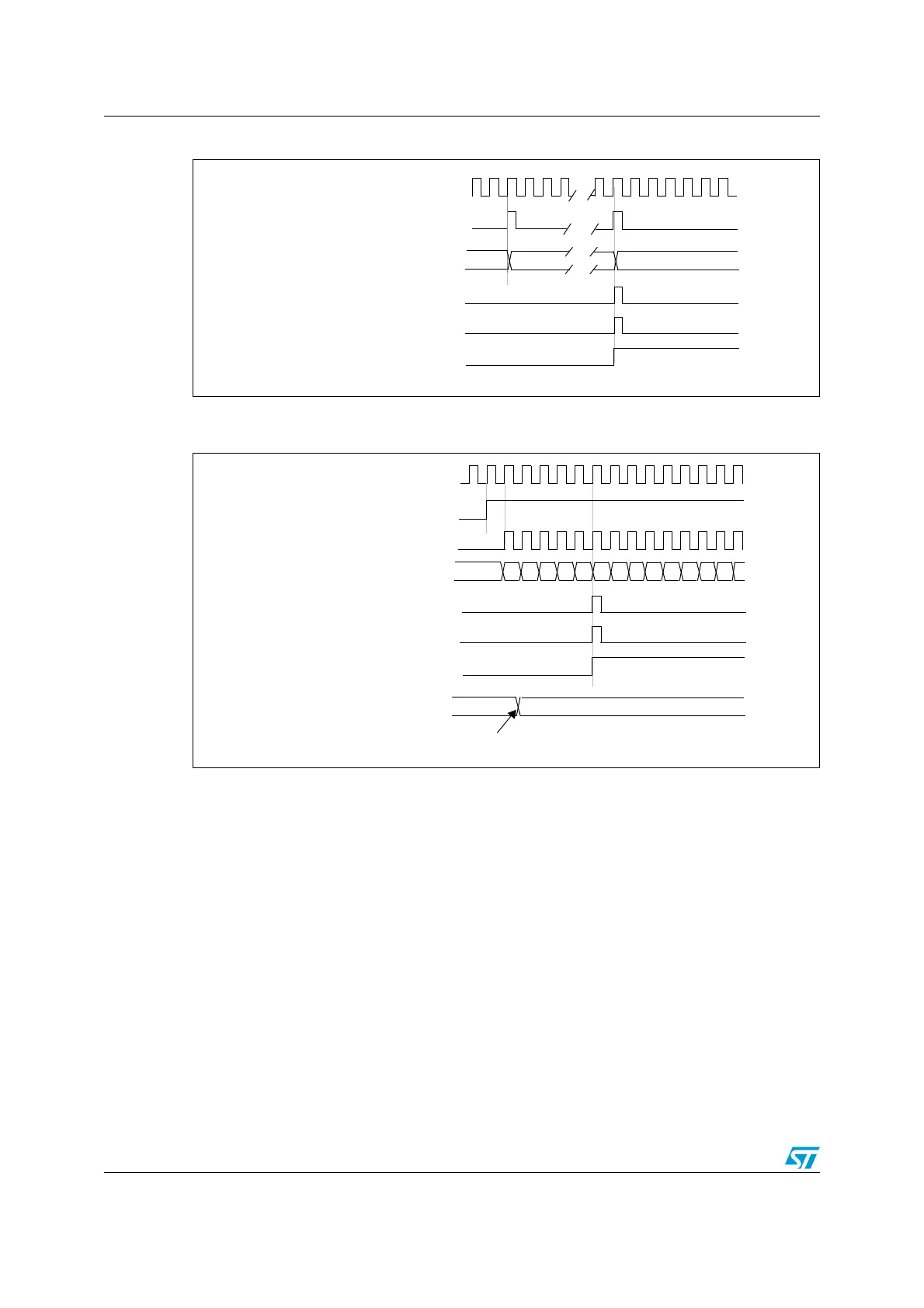

Figure 112. Counter timing diagram, internal clock divided by N

Figure 113. Counter timing diagram, Update event when repetition counter is not

used

Center-aligned mode (up/down counting)

In center-aligned mode, the counter counts from 0 to the auto-reload value (content of the

TIMx_ARR register) – 1, generates a counter overflow event, then counts from the auto-

reload value down to 1 and generates a counter underflow event. Then it restarts counting

from 0.

Center-aligned mode is active when the CMS bits in TIMx_CR1 register arenot equal to '00'.

The Output compare interrupt flag of channels configured in output is set when: the counter

counts down (Center aligned mode 1, CMS = "01"), the counter counts up (Center aligned

mode 2, CMS = "10") the counter counts up and down (Center aligned mode 3, CMS =

"11").

In this mode, the direction bit (DIR from TIMx_CR1 register) cannot be written. It is updated

by hardware and gives the current direction of the counter.

The update event can be generated at each counter overflow and at each counter underflow

or by setting the UG bit in the TIMx_EGR register (by software or by using the slave mode

controller) also generates an update event. In this case, the counter restarts counting from

0, as well as the counter of the prescaler.

Timer clock = CK_CNT

Counter register

Update interrupt flag (UIF)

Counter underflow

Update event (UEV)

CK_INT

CNT_EN

Timer clock = CK_CNT

Counter register

Update interrupt flag (UIF)

Counter underflow

Update event (UEV)

35 34 33 32 31 30 2F04 03 02 01 0005

Auto-reload register

FF 36

Write a new value in TIMx_ARR

CK_INT
