Flexible static memory controller (FSMC) RM0008
502/1096 Doc ID 13902 Rev 12

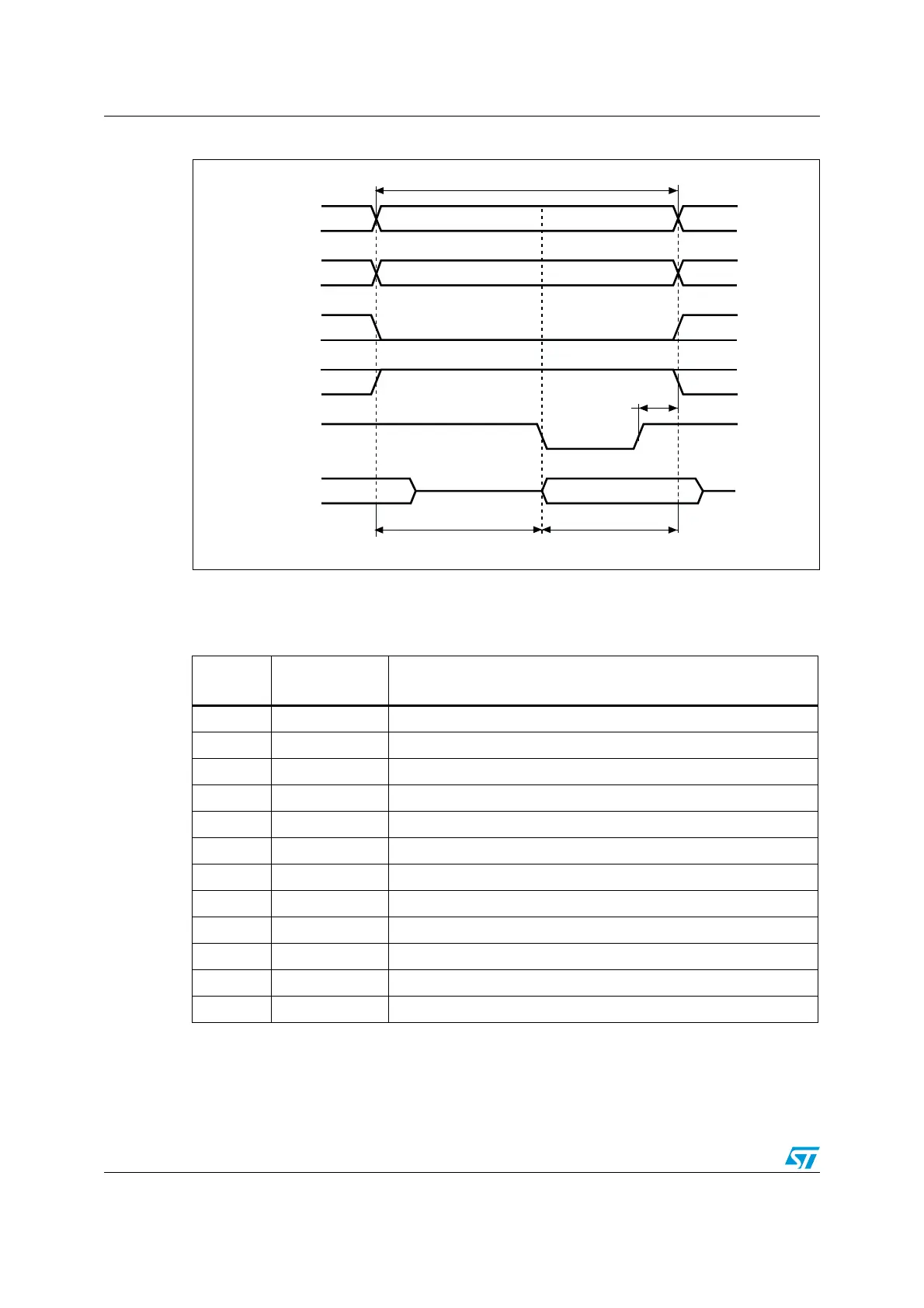

Figure 190. ModeA write accesses
The differences compared with mode1 are the toggling of NOE and the independent read
and write timings.
Table 110. FSMC_BCRx bit fields
Bit
number
Bit name Value to set
31-16 0x0000
15 ASYNCWAIT Set to 1 if the memory supports this feature. Otherwise keep at 0.
14 EXTMOD 0x1
13-10 0x0
9 WAITPOL Meaningful only if bit 15 is 1
8 BURSTEN 0x0
7 -
6 FACCEN -
5-4 MWID As needed
3-2 MTYP As needed, exclude 10 (NOR Flash)
1 MUXEN 0x0
0 MBKEN 0x1
A[25:0]
NOE
(ADDSET +1) (DATAST + 1)
Memory transaction
NEx
D[15:0]
HCLK cycles HCLK cycles
NWE
NBL[1:0]
data driven by FSMC
ai14721c
1HCLK
