In connectivity line devices the main system consists of:
● Five masters:
– Cortex™-M3 core DCode bus (D-bus) and System bus (S-bus)
– GP-DMA1 & 2 (general-purpose DMA)
– Ethernet DMA
● Three slaves:
– Internal SRAM
– Internal Flash memory
– AHB to APB bridges (AHB to APBx), which connect all the APB peripherals
These are interconnected using a multilayer AHB bus architecture as shown in Figure 2:

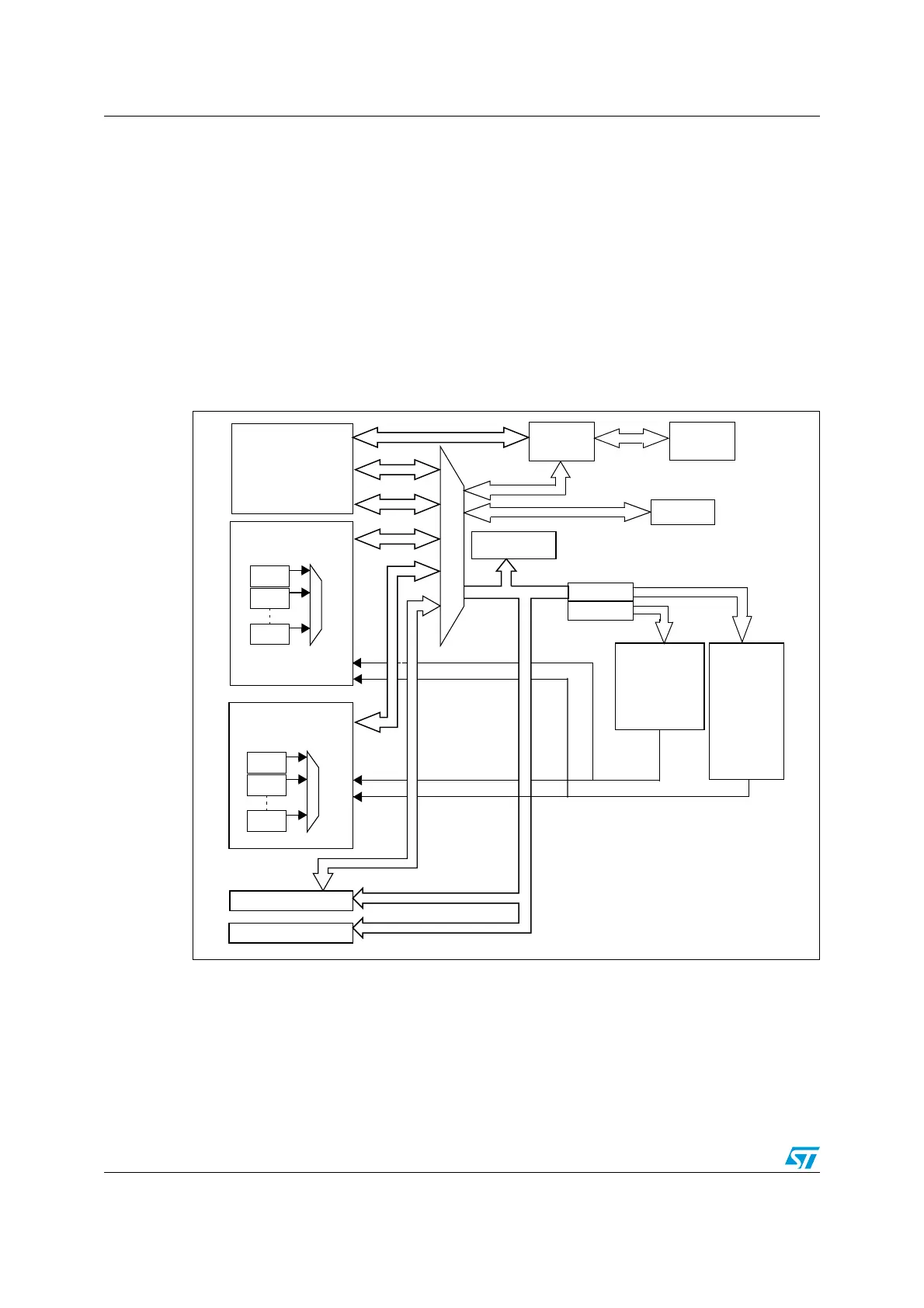

Figure 2. System architecture in connectivity line devices
ICode bus
This bus connects the Instruction bus of the Cortex™-M3 core to the Flash memory
instruction interface. Prefetching is performed on this bus.
