ST STM32F101xx User Manual

RM0008 Debug support (DBG)
Doc ID 13902 Rev 12 1049/1096

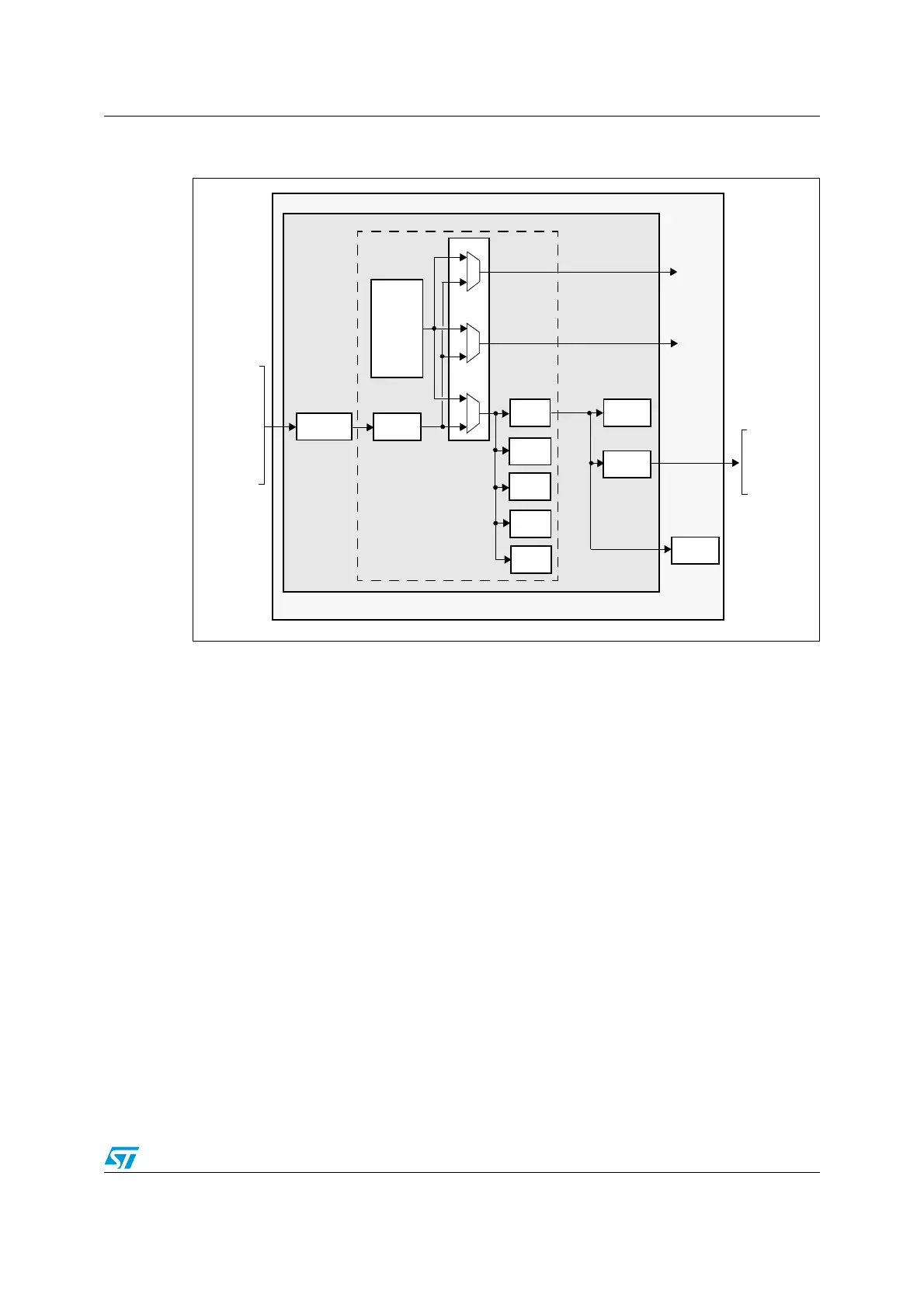

Figure 359. Block diagram of STM32F10xxx-level and
Cortex-M3-level debug support
Note: The debug features embedded in the Cortex-M3 core are a subset of the ARM CoreSight
Design Kit.
The ARM Cortex-M3 core provides integrated on-chip debug support. It is comprised of:
● SWJ-DP: Serial wire / JTAG debug port
● AHP-AP: AHB access port
● ITM: Instrumentation trace macrocell
● FPB: Flash patch breakpoint
● DWT: Data watchpoint trigger
● TPUI: Trace port unit interface (available on larger packages, where the corresponding
pins are mapped)
● ETM: Embedded Trace Macrocell (available on larger packages, where the
corresponding pins are mapped)
It also includes debug features dedicated to the STM32F10xxx:
● Flexible debug pinout assignment
● MCU debug box (support for low-power modes, control over peripheral clocks, etc.)
Note: For further information on debug functionality supported by the ARM Cortex-M3 core, refer
to the Cortex-M3-r1p1 Technical Reference Manual and to the CoreSight Design Kit-r1p0
TRM (see Section 31.2: Reference ARM documentation).
Cortex-M3
Core
SWJ-DP
AHB-AP
Bridge
NVIC
DWT
FPB
ITM
ETM
DCode
interface
System
interface
Internal private
peripheral bus (PPB)
External private
peripheral bus (PPB)
Bus matrix
Data
Trace port
DBGMCU
STM32F10xxx debug support
Cortex-M3 debug support
JTMS/
JTDI
JTDO/
NJTRST
JTCK/
SWDIO
SWCLK
TRACESWO
TRACESWO
TRACECK
TRACED[3:0]
TPIU
ai17113
