ST STM32F101xx User Manual

RM0008 General-purpose timers (TIM9 to TIM14)
Doc ID 13902 Rev 12 409/1096
16.2 TIM9 to TIM14 main features
16.2.1 TIM9/TIM12 main features
The features of the TIM9/TIM12 general-purpose timers include:
● 16-bit auto-reload upcounter
● 16-bit programmable prescaler used to divide the counter clock frequency by any factor
between 1 and 65535 (can be changed “on the fly”)
● Up to 2 independent channels for:
– Input capture
– Output compare
– PWM generation (edge-aligned mode)
– One-pulse mode output
● Synchronization circuit to control the timer with external signals and to interconnect
several timers together
● Interrupt generation on the following events:
– Update: counter overflow, counter initialization (by software or internal trigger)
– Trigger event (counter start, stop, initialization or count by internal trigger)
– Input capture
● Output compare

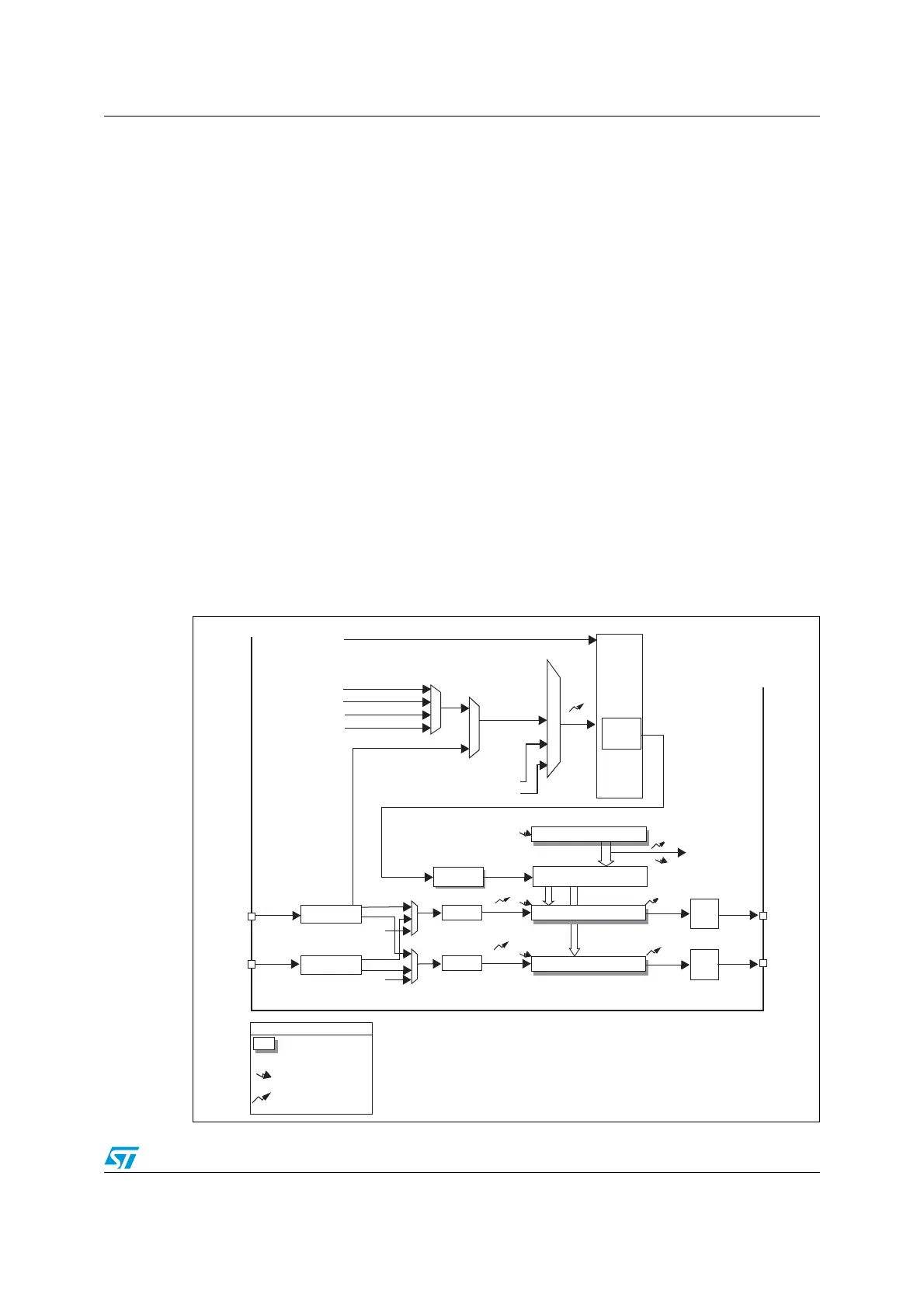

Figure 146. General-purpose timer block diagram (TIM9 and TIM12)
Auto-reload register
Capture/Compare 1 register
Capture/Compare 2 register
U
U
U
CC1I
CC2I
Tr i g ge r
controller
Stop, Clear
TI1FP1
TI2FP2
ITR0
ITR1
ITR2
ITR3
TRGI
output
control
OC1
OC1REF
OC2REF
U
UI
Reset, Enable, Count
IC1
IC2
Prescaler
Prescaler
Input filter &
Edge detector
IC2PS
IC1PS
TI1FP1
output
control
OC2
Reg
event
Notes:
Preload registers transferred
to active registers on
U
event
according to control bit
interrupt
TGI
TRC
TRC
ITR
TRC
TI1F_ED
Input filter &
Edge detector
CC1I
CC2I
TI1FP2
TI2FP1
TI2FP2
TI1
TI2
TIMx_CH1
TIMx_CH2
TIMx_CH1
TIMx_CH2
Prescaler COUNTER
+/-
CK_PSC
PSC
CNT
CK_CNT
controller
mode
Slave
Internal clock (CK_INT)
ai17190
