Chapter 3
Theory of Operation
P/N 57150002, Revision 5.0 3 - 83 Trimble S, VX, SPS & RTS Service Manual
F
FineLock is supported in Survey Controller version 12.20 or higher. From version 12.42 FineLock
control can be run from Trimble Functions menu.

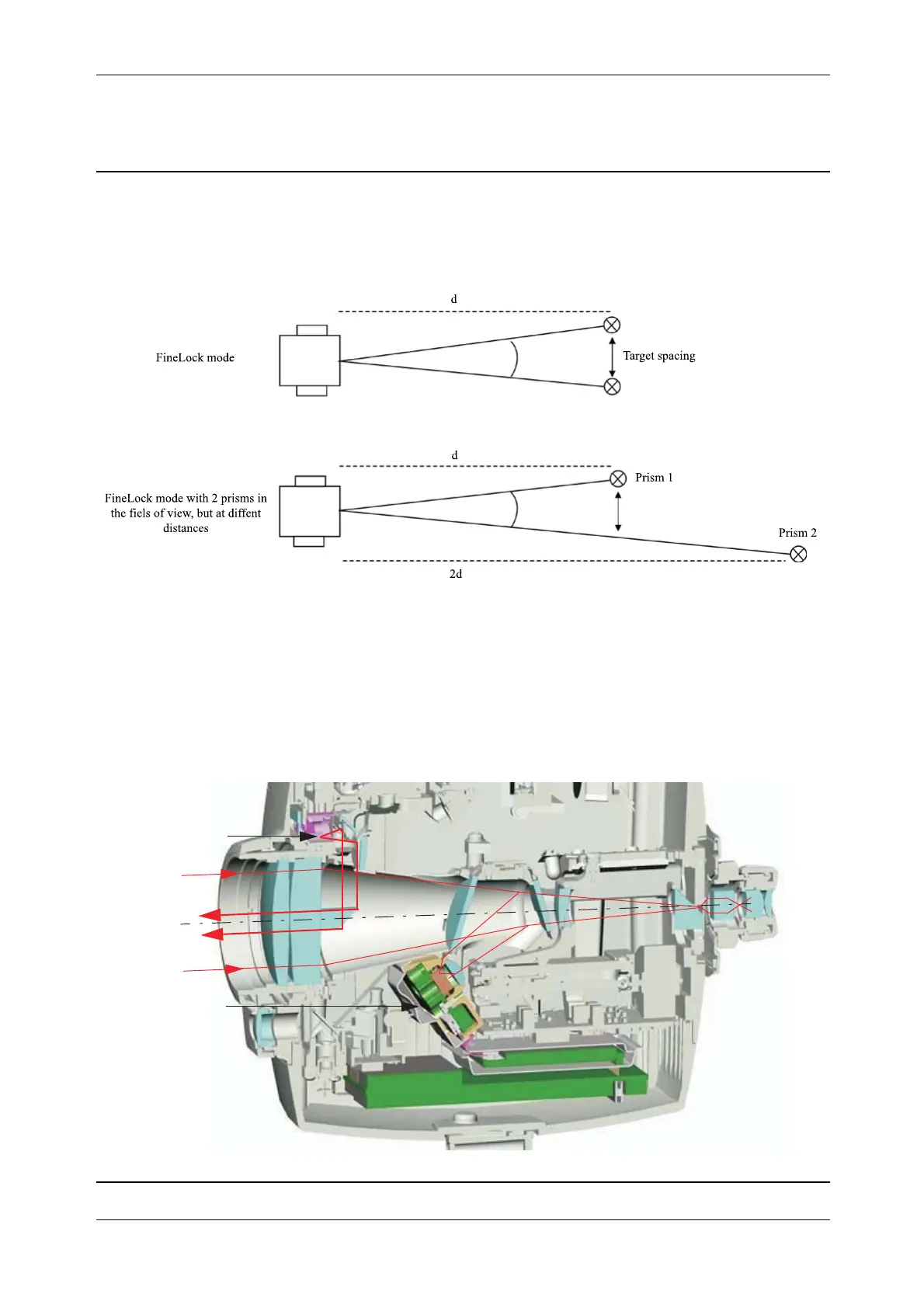

Fig. 3-75 Measuring in FineLock mode
Technical specifications
• Range (min./max) passive mode: <2 meter / >500 meter
• Width of passive tracker beam: 50 mrad (5 m at 100 m distance)
• Number of ID channels: 8
Location of tracker unit
Fig. 3-76 Location of the Tracker
Transmitter
Receiver
