Trimble S User Manual

Chapter 8
Replacement Parts & Tooling
Trimble S, VX, SPS & RTS Service Manual8 - 16 P/N 57150002, Revision 5.0
F

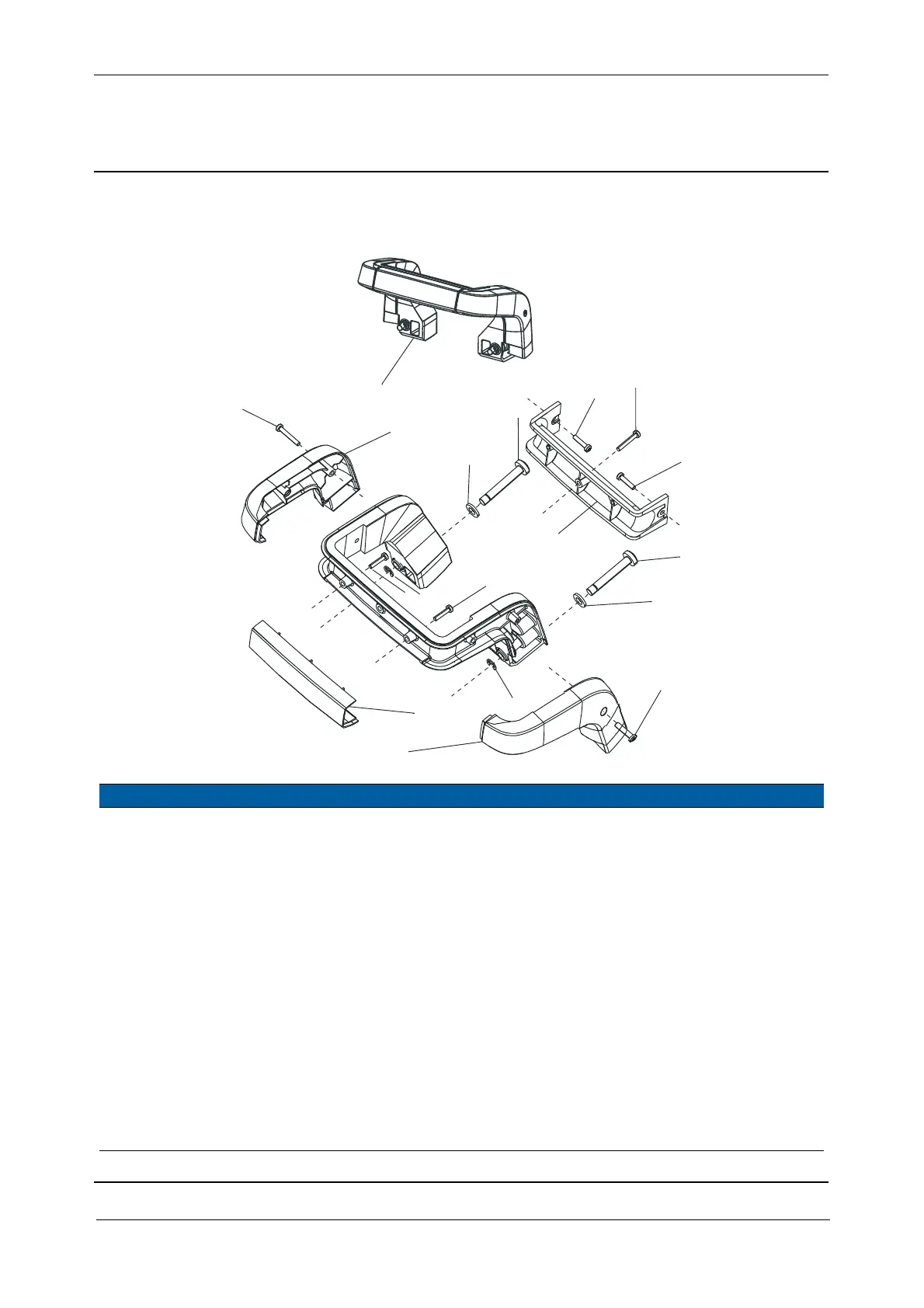

Handle - Trimble S6/S8/VX
Handle
Item Description Part number Qty
1 Handle complete 59007001 1
1 Handle dark grey complete 59016025 1
2 Package screw M3 x 20 A2-70, 20p 59000174 3
3 Cover left handle 59168001 1
3 Cover left, handle dark grey 59018025 1
4 Package screw M3 x 14 A2-70, 20p 59000173 4
5 Package washer 6,4 x 12, 5p R44482153 2
6 Package screw for alidade handle, 5p 59025001 2
7 Grip inner 59173001 1
8 Cover right handle 59169001 1
8 Cover right, handle dark grey 59019025 1
9 Package washer lock RS 4,3, 20p 59000556 2
10 Grip outer 59174001 1
1
2
2
2
3
4
4
4
4
5
5
6
6
7
10
9
9
8
