Chapter 5
Maintenance and Repair
P/N 57150002, Revision 5.0 5 - 13 Trimble S, VX, SPS & RTS Service Manual
F
BRC board replacement
Performance
4 Configure the radio. See page 6-2. Configuration of
radio is done to
Global or French
settings.
5 Make a radio range
test.
See page 6-3.
6 Make a radio short
range test.
See page 6-4.
Item Performance Action Results Notes
1 Remove battery/radio
side cover.
See page 5-10.
2 Remove radio. If necessary remove radio,
see page 5-12
3 Replace BRC board A. Remove the four
screws and the plate.
B. Remove the screw for
BRC board.
C. Replace BRC board.
D. Mount screws and
plate.
35 Ncm. Use a torque wrench
with a torx T8 bit.

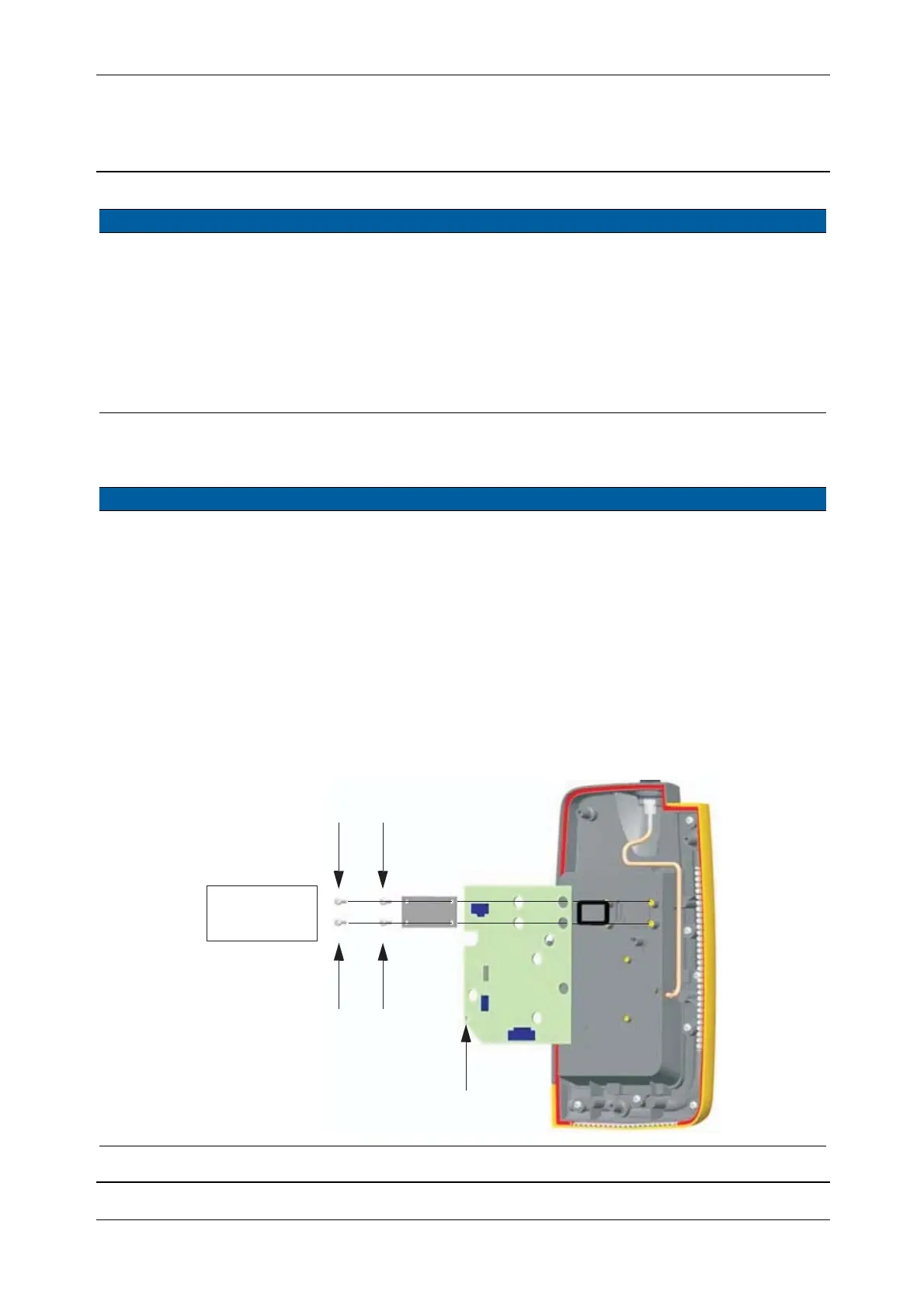

Fig. 5-16 BRC board replacement
Item Performance Action Results Notes
35 Ncm /
3.1 lbfin
B
