Chapter 1
General Information and safety
P/N 57150002, Revision 5.0 1 - 9 Trimble S, VX, SPS & RTS Service Manual
F
The instrument contains visible and invisible laser sources:
• A laser diode for distance measuring in DR mode and laser pointer function operating at 660
nm (visible light), with a beam divergence of 0.4 x 0.4 mrad and an output power of <5 mW,
while the emission is coaxial with the telescope. This mode operates in LASER CLASS 3R.
• The laser diode for distance measuring in prism mode operates at 660 nm (visible light), with
a beam divergence of 0.4 x 0.4 mrad and an output power of <0.017 mW, while the emission is
coaxial with the telescope. This mode operates in LASER CLASS 1.
• An Autolock laser diode operates at 785 nm (infrared, non-visible light), with a beam
divergence of 38.5 mrad and an output power of < 0.35 mW, while the emission is coaxial with
the telescope. This mode operates in LASER CLASS 1.
Laser and LED Information Trimble S3 DR / RTS555 DR / RTS655 DR / SPS620 DR /
SPS720 DR
The Trimble S3 DR, RTS555 DR, RTS 655 DR, SPS620 DR, SPS720 DR Total Stations have been
tested, and complies with the regulations for Class 3R Laser products

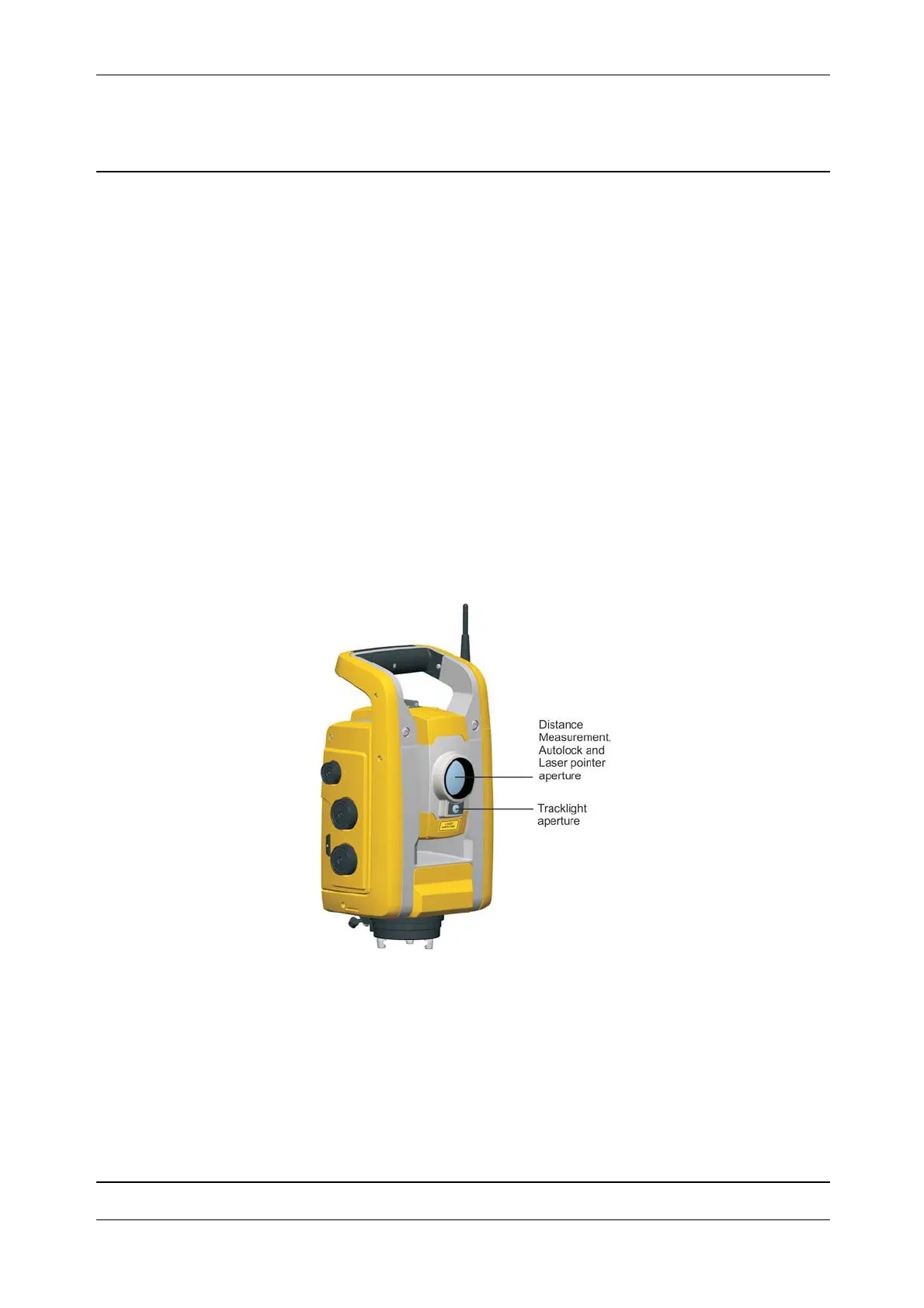

Fig. 1-4 Trimble S3 DR Total Station apertures
