Trimble S - Location of Long Range Tracker unit

Chapter 3
Theory of Operation
Trimble S, VX, SPS & RTS Service Manual3 - 98 P/N 57150002, Revision 5.0
F
Location of Long Range Tracker unit
The tracker is located below the telescope instead of the Track light module. Because the TLR- and
HPL module outweigh the Track light module, a weight is necessary to balance the telescope. It is
located in diagonal opposite.

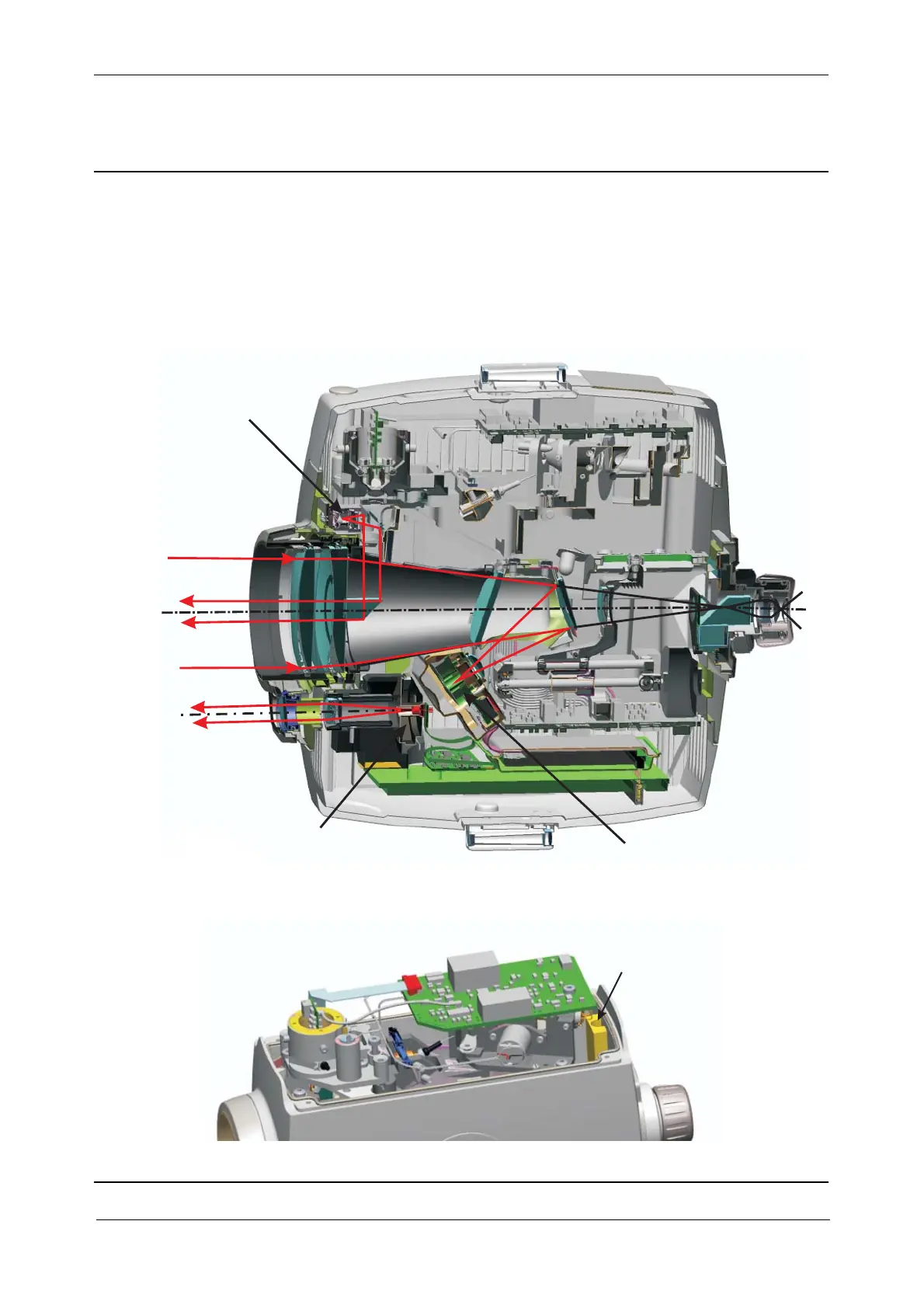

Fig. 3-88 Location of the Long Range Tracker
Fig. 3-89 Location of the weight to balance the telescope
Standard
transmitter
Tracker Long Range
transmitter
Receiver
0,2 gon
2 gon
Weight balance
