Chapter 5
Maintenance and Repair
Trimble S, VX, SPS & RTS Service Manual5 - 124
P/N 57150002, Revision 5.0
F
Replacement of Video front lens
Performance
Item
Performance
Action
Result
Notes
1
Remove Tracker unit
cover.
See page 5-3
.
2
Remove the Video
front lens.
Keep the lens fixed
using a 12mm
wrench while
removing the
adjustable focus nut
using a 11mm
wrench.
Tool:
Wrench 11mm
Wrench 12mm

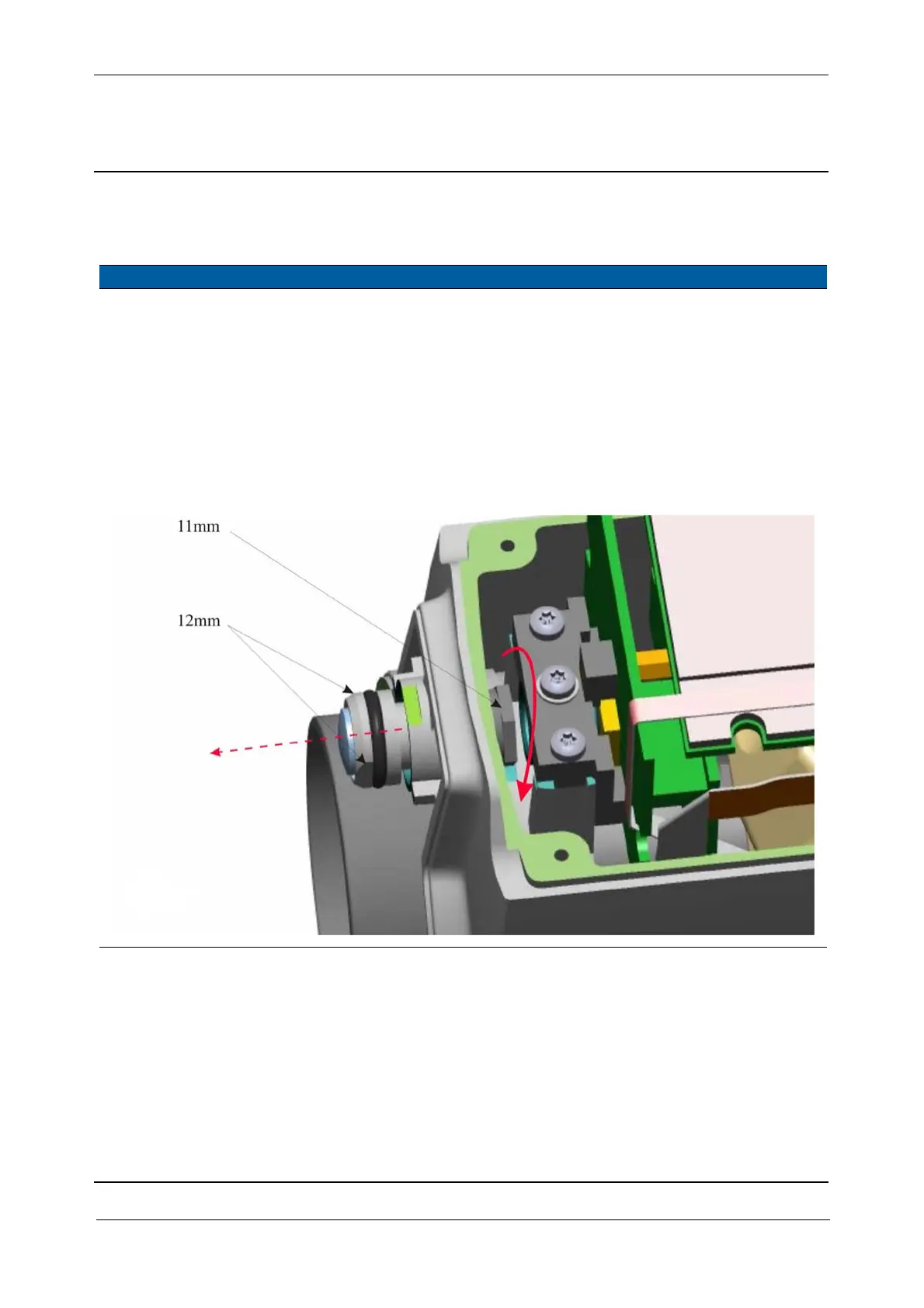

Fig. 5-117 Remove Video front lens.
