Trimble S - TCU attachment with USB; TCU attachment replacement

Chapter 5
Maintenance and Repair
Trimble S, VX, SPS & RTS Service Manual5 - 20 P/N 57150002, Revision 5.0
F
TCU attachment with USB
• TCU attachment replacement
• USB Board replacement
Tools and equipment
TCU attachment replacement
Performance
Description Part number
Torque wrench 120 Ncm T71600280
Torx T8,T10 bit Local tool
Item Performance Action Results Notes
1 Replace TCU
attachment.
A. Remove the two
screws and the cable to
the PSM board.
B. Replace TCU
attachment.
C. Mount cable and
screws.
35 Ncm. Use a torque wrench
with a torx T10 bit.
Note – When
mounting the
attachment make sure
the hook is in correct
place.

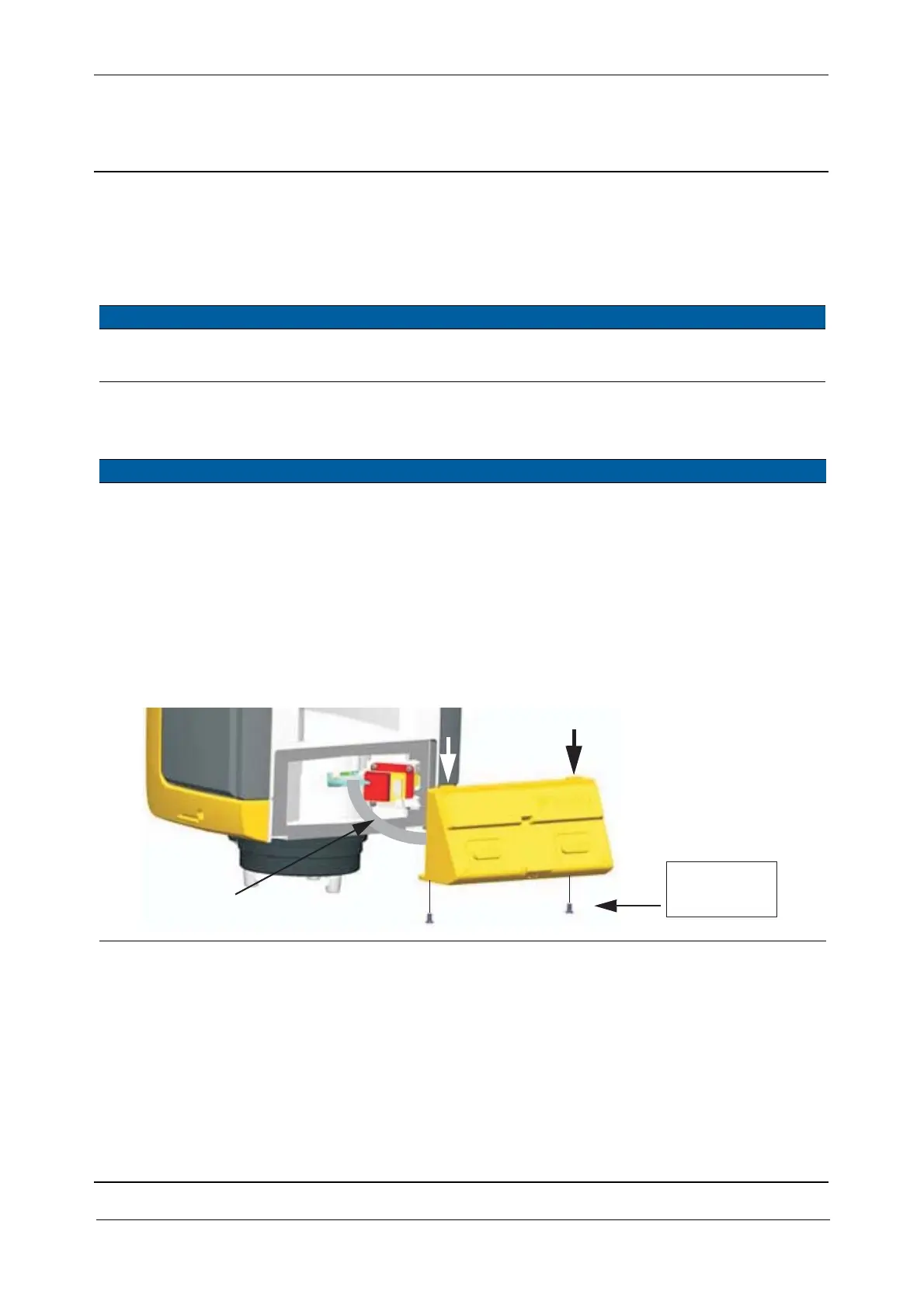

Fig. 5-20 TCU attachment replacement
Cable
Hook
35 Ncm /
3.1 lbfin
