Check servo focus specifications
Performance
10 Lubricate the spindle. Run the lens several times
between the end positions
and remove excess grease
at the end positions.
Lubricate the spindle
with the correct
Grease, BEM 34-32.
11 Mount Servo Focus
unit.
See “Servo focus
replacement” on page 5-
116. for instructions.
Item Performance Description Result Notes
1 Start up instrument /
PASS.
See page 7-3 how to set-up
the instrument.
2 Start the test. Select
Servo focus
specification
from Servo
focus
in Maintenance &
Service
.

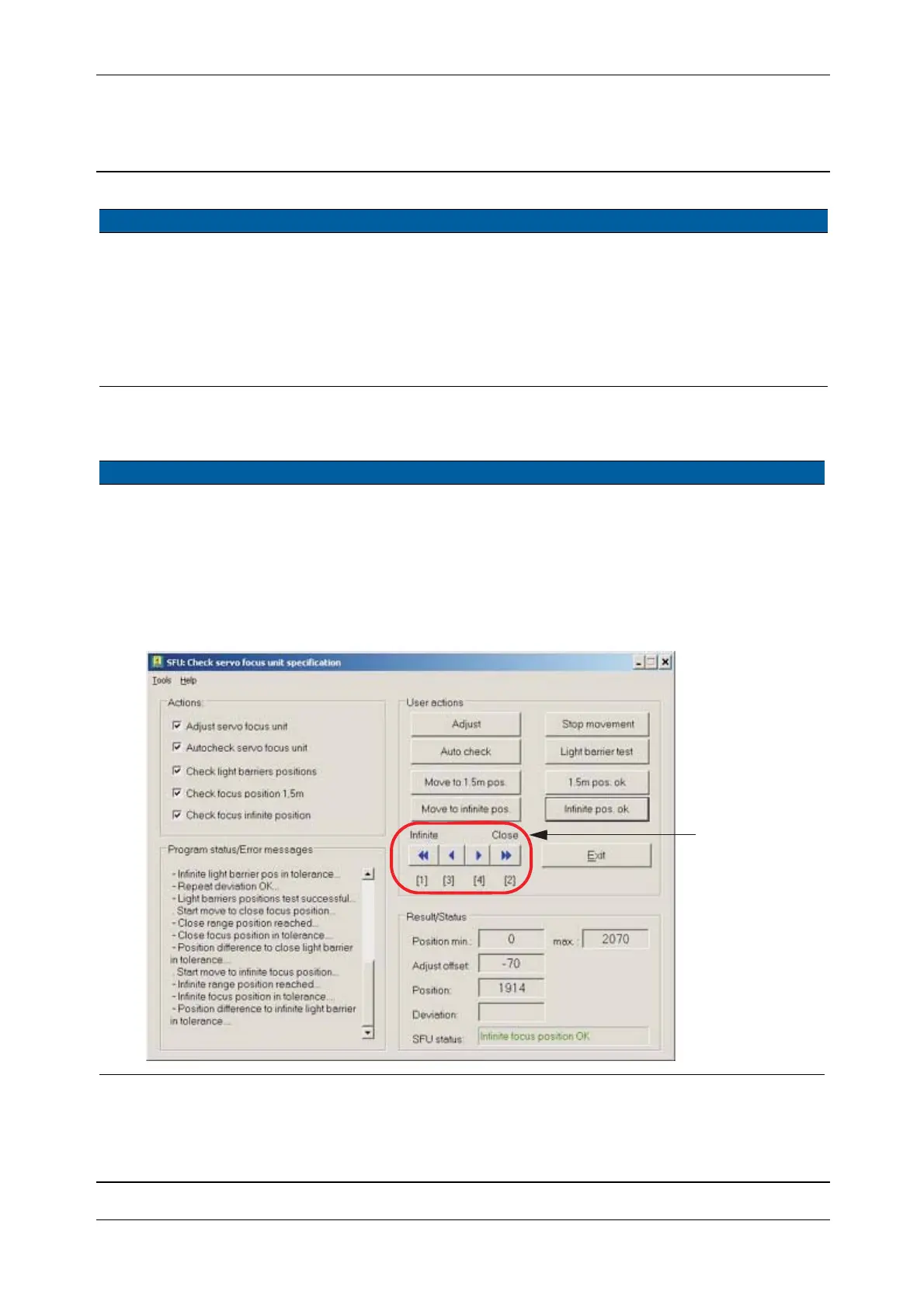

Fig. 6-169 Servo focus unit specification dialogue
Item Performance Description Result Notes
Item 6 & 7

Trimble S Specifications
