Trimble S - Laser and LED Information Trimble S6 DR300+; VX; SPS DR300+; RTS DR300+

Chapter 1
General Information and safety
P/N 57150002, Revision 5.0 1 - 15 Trimble S, VX, SPS & RTS Service Manual
F
The instrument contains visible and invisible laser sources:
• A laser diode for the distance measuring function operating at 870 nm (infrared, non-visible
light), with a beam divergence of 0.40.8 mrad and an output power of <0.48 mW, laser
CLASS 1.
• A laser diode for laser pointer function operating at 630 - 680 nm (visible light), with a beam
divergence of 0.3 mrad and an output power of < 0.8 mW, while the emission is coaxial with
the telescope. This mode operates in LASER CLASS 2.
• The laser diode for distance measuring in prism and DR mode operates at 870 nm (infrared,
non-visible light), with a beam divergence of 0.40.8 mrad and an output power of <0,48 mW.
This mode operates in LASER CLASS 1.
• As an option, an Autolock laser diode operates at 785 nm (infrared, non-visible light), with a
beam divergence of 38.5 mrad and an out put power of <0.35 mW, while the emission is coaxial
with the telescope. This mode operates in LASER CLASS 1.
When operating in prism mode with Autolock and/or distance measurement the accessible radiation
does not exceed the limits of LASER CLASS 1.
Laser and LED Information Trimble S6 DR300+ / VX / SPS DR300+ / RTS DR300+
The Trimble S6 DR300+ (with Autolock
®
), VX, SPS DR300+ and RTS DR300+ has been tested and
complies with the regulations for a Class 1 and Class 2 Laser product.

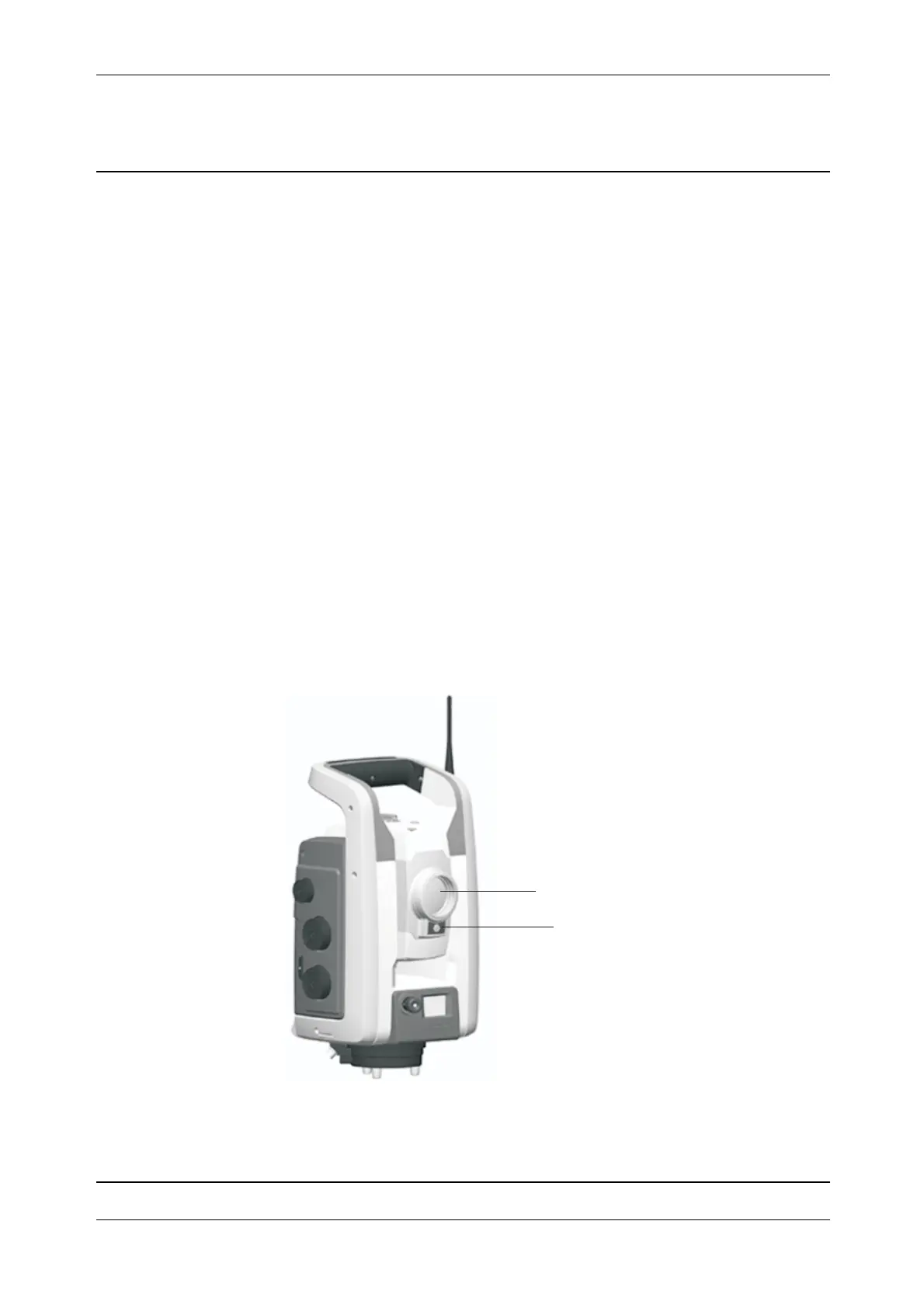

Fig. 1-16 Trimble S6 DR300+ / VX / SPS DR300+ / RTS 300+
The laser pointer warning label, see Fig. 1-15 on page 1-14 is located on top of the distance unit
cover.
Distance
measurement
Autolock and
Laser pointer
aperture
Tracklight®
aperture
