Chapter 1
General Information and safety
Trimble S, VX, SPS & RTS Service Manual1 - 22 P/N 57150002, Revision 5.0
F

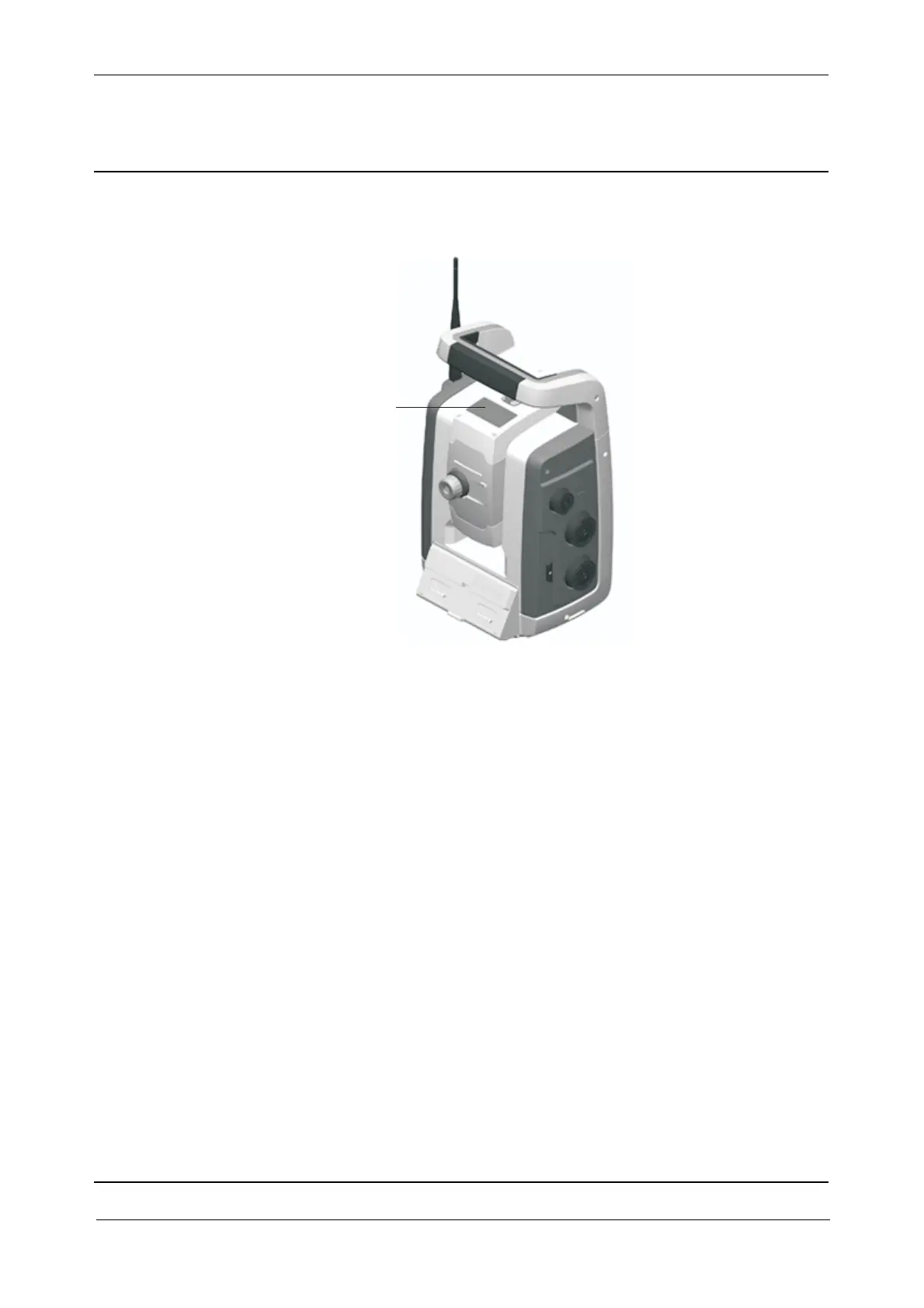

Fig. 1-27 Location of laser pointer warning label on a Trimble S6 High Precision / S8 High Precision
/ SPS DR Standard / RTS DR Standard
Trimble S8 Series High Precision with Long Range FineLock
The Trimble S8 Series High Precision with Long Range FineLock is a CLASS 2 LASER PRODUCT.
The instrument contains visible and invisible laser sources:
• A laser diode for distance measuring in DR- mode and laser pointer function operating at 660
nm (visible light), with a beam divergence of 0.4 x 0.4 mrad and an output power of <1 mW,
while the emission is coaxial with the telescope. This mode operates in LASER CLASS 2.
• The laser diode for distance measuring in prism mode operates at 660 nm (visible light), with
a beam divergence of 0.4 x 0.4 mrad and an output power of <0,017 mW, while the emission is
coaxial with the telescope. This mode operates in LASER CLASS 1.
• An Autolock laser diode operates at 785 nm (infrared, non-visible light), with a beam
divergence of 38.5 mrad and an output power of < 0.35 mW, while the emission is coaxial with
the telescope. This mode operates in LASER CLASS1.
• A Long Range FineLock laser diode operates at 785 nm (infrared, non-visible light), with a
beam divergence of 2,5 mrad and an output power of <0.35 mW, while the emission is biaxial
and eccentric with the telescope axis. This mode operates in LASER CLASS 1.
The Autolock laser diode and the Long Range FineLock laser diode can not operate at the same time.
When operating in prism mode with Autolock and/or distance measurement the accessible radiation
does not exceed the limits of LASER CLASS 1.
Laser pointer
warning label
