Trimble S User Manual

Chapter 6
Adjustment and verification
P/N 57150002, Revision 5.0 6 - 133 Trimble S, VX, SPS & RTS Service Manual
F
Tracker receiver alignment (within screw holes only)
Procedure to align tracker receiver using reticle as a reference to eliminate small deviations which
can be done within the screw holes of the fixing screws
Performance
Item Performance Description Result Notes
1 Start up instrument /
PASS.
See page 7-3 how to set-
up the instrument.
2 Prepare for adjustment
of tracker receiver.
Remove:
A. Distance unit cover.
B. Tracker transmitter
board, see page 5-72.
C. OTC board, see page
5-112.
D. Tracklight, see page 5-
113.
Procedure to adjust
tracker receiver using
reticle as a reference.
3 Start the test. A. Place the instrument
on the collimator
bench.
B. Select
Adjust Tracker
receiver
from Tracker
in Maintenance &
Service
.
C. Click Holding mode
ON.
This software
dialogue is used just
to set the holding
mode.

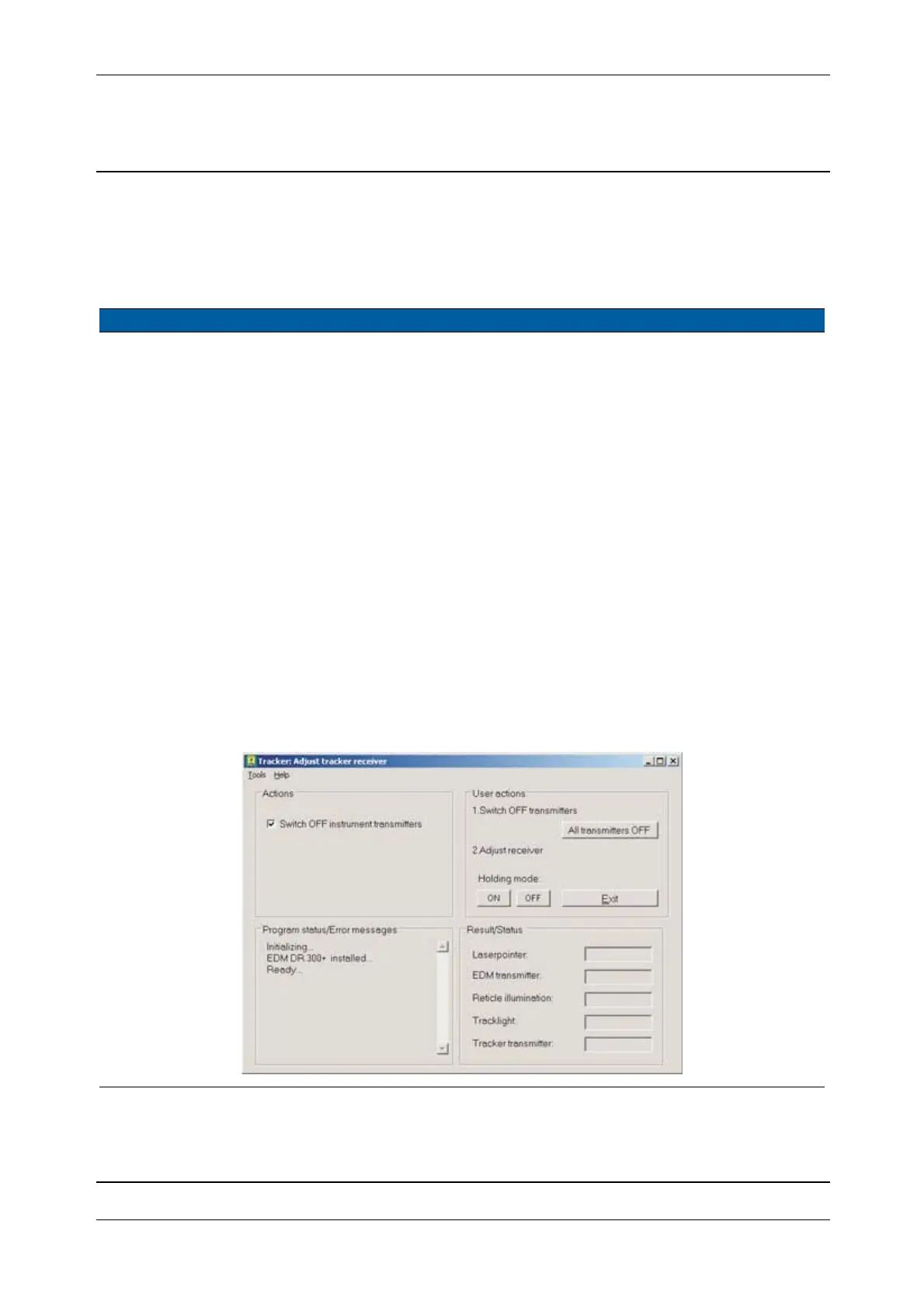

Fig. 6-143 Tracker receiver adjustment
