Trimble S User Manual

Chapter 6
Adjustment and verification
P/N 57150002, Revision 5.0 6 - 47 Trimble S, VX, SPS & RTS Service Manual
F
Reticle collimation (HA/VA collimation)
Performance

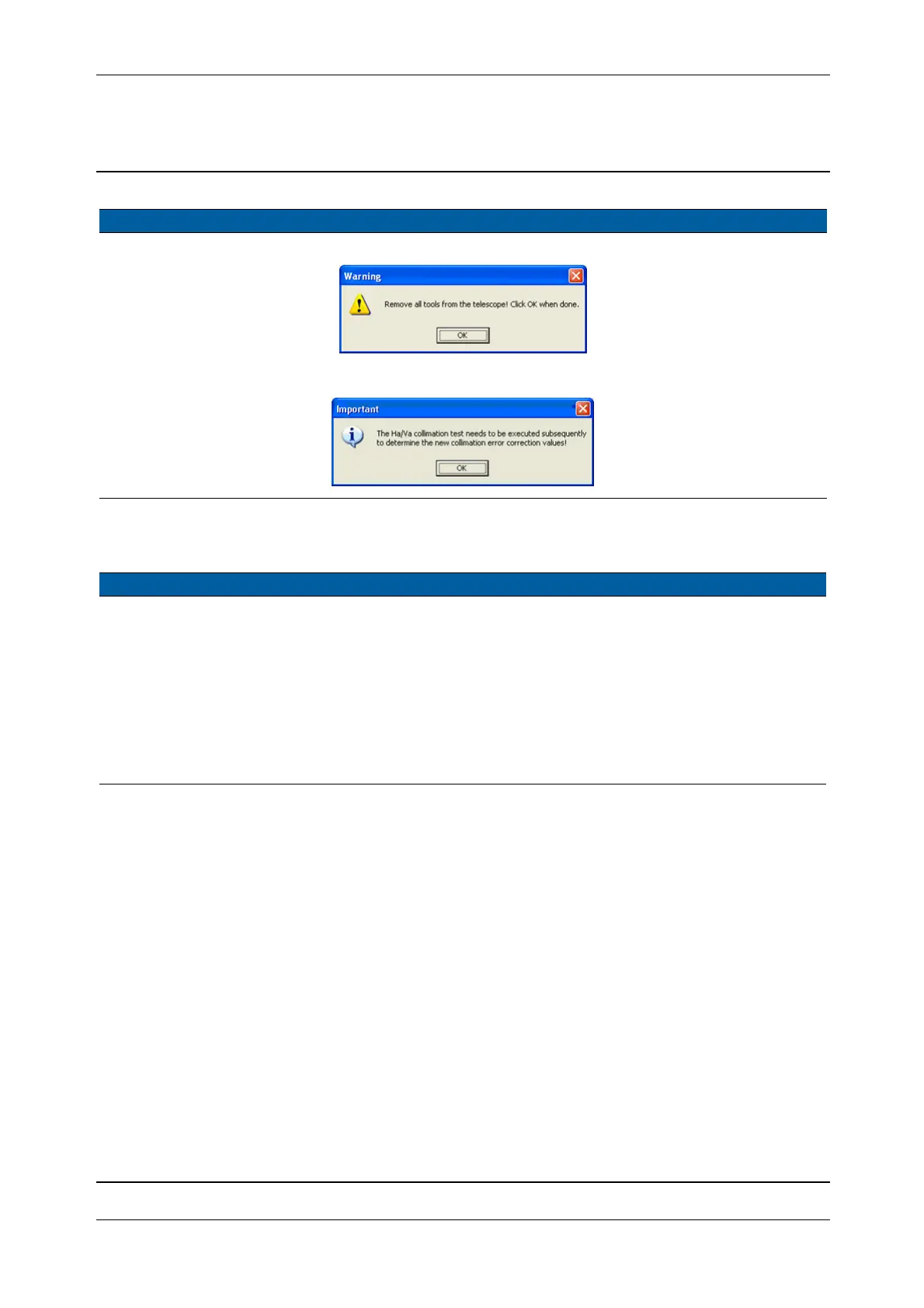

Fig. 6-38 Remove tools from instrument
Fig. 6-39 Run HA/VA Collimation
Item Performance Description Result Notes
1 Run Tilt offset. Run Tilt sensor offset in
Final Test & Report.
Vertical offset will
affect the vertical
collimation.
2 Run reticle
collimation test.
A. Select
HA/VA
collimation correction
from Final Test &
Report.
B. Level the instrument.
C. Follow instructions.
The horizontal line of
sight will become 100
gon.
Item Performance Description Result Notes
