Chapter 8
Replacement Parts & Tooling
Trimble S, VX, SPS & RTS Service Manual8 - 10 P/N 57150002, Revision 5.0
F

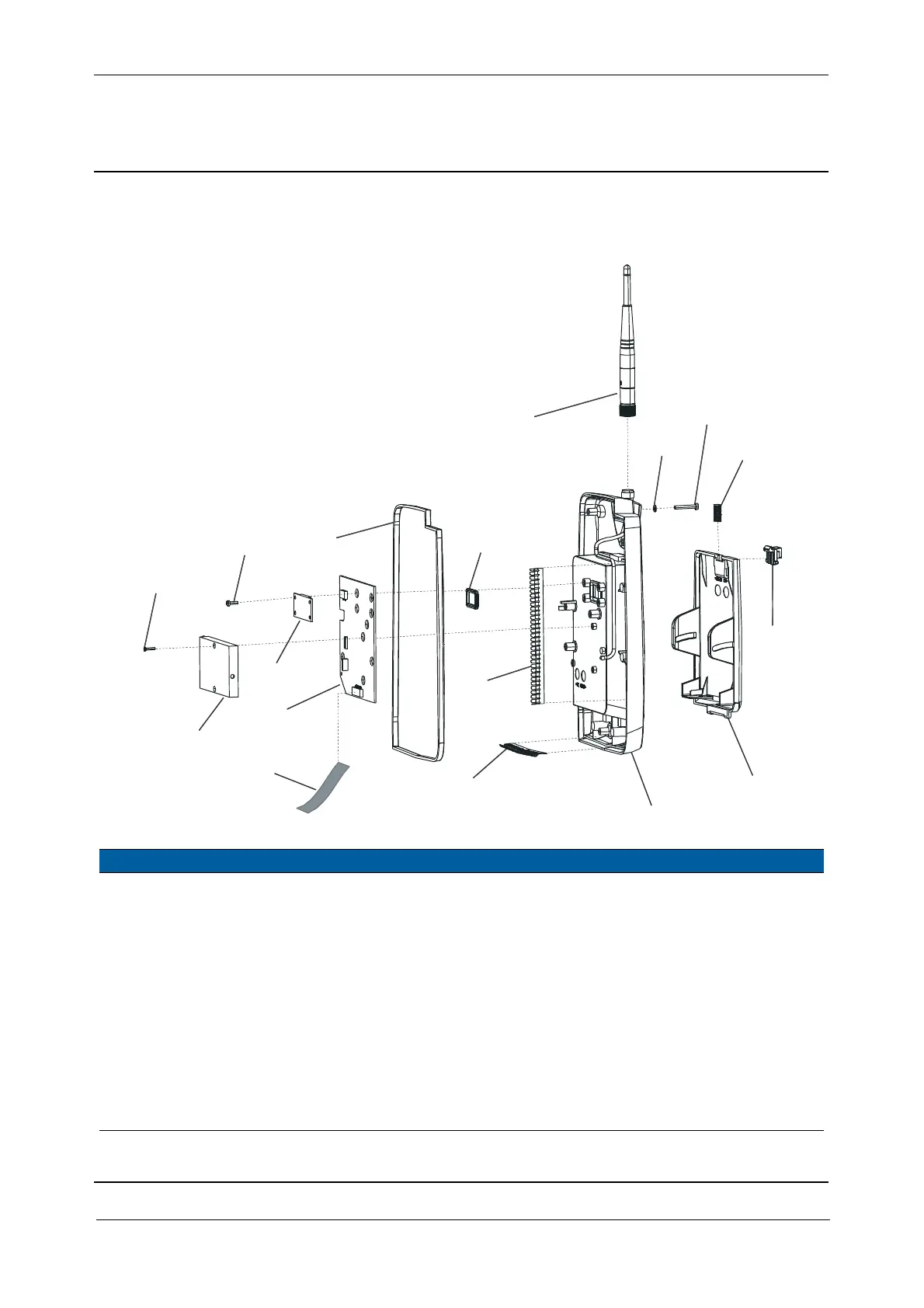

Radio Side Cover
Radio side cover
Item Description Part number Qty
1 Package screw M2 x 10 A2-70 59000176 2
2 Radio Module 59000019 1
3 Package screw M2,5 x 8 A2-70, 20p 59000170 5
4 Pressure plate 59163001 1
5 Board BRC - RoHS 59034019 1
5 Board BRB incl. WLAN radio 59068025 1
6 Package cable C2 - PSM, PSM -BRC 59181001 1
7 Package gasket conductive side covers, 10p replaces old gasket +
spring (item 9 & 10)
59008025 1
8 Package gasket batt./radio terminal, 5p 59157001 1
2
1
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
