Trimble S - Battery; radio side cover; Location of side cover; Detailed function description

Chapter 3
Theory of Operation
Trimble S, VX, SPS & RTS Service Manual3 - 8 P/N 57150002, Revision 5.0
F
Battery / radio side cover
The left side cover of the Trimble S-series can be equipped with a radio / battery side cover or a
battery side cover. The only visual difference is the antenna.
Location of side cover

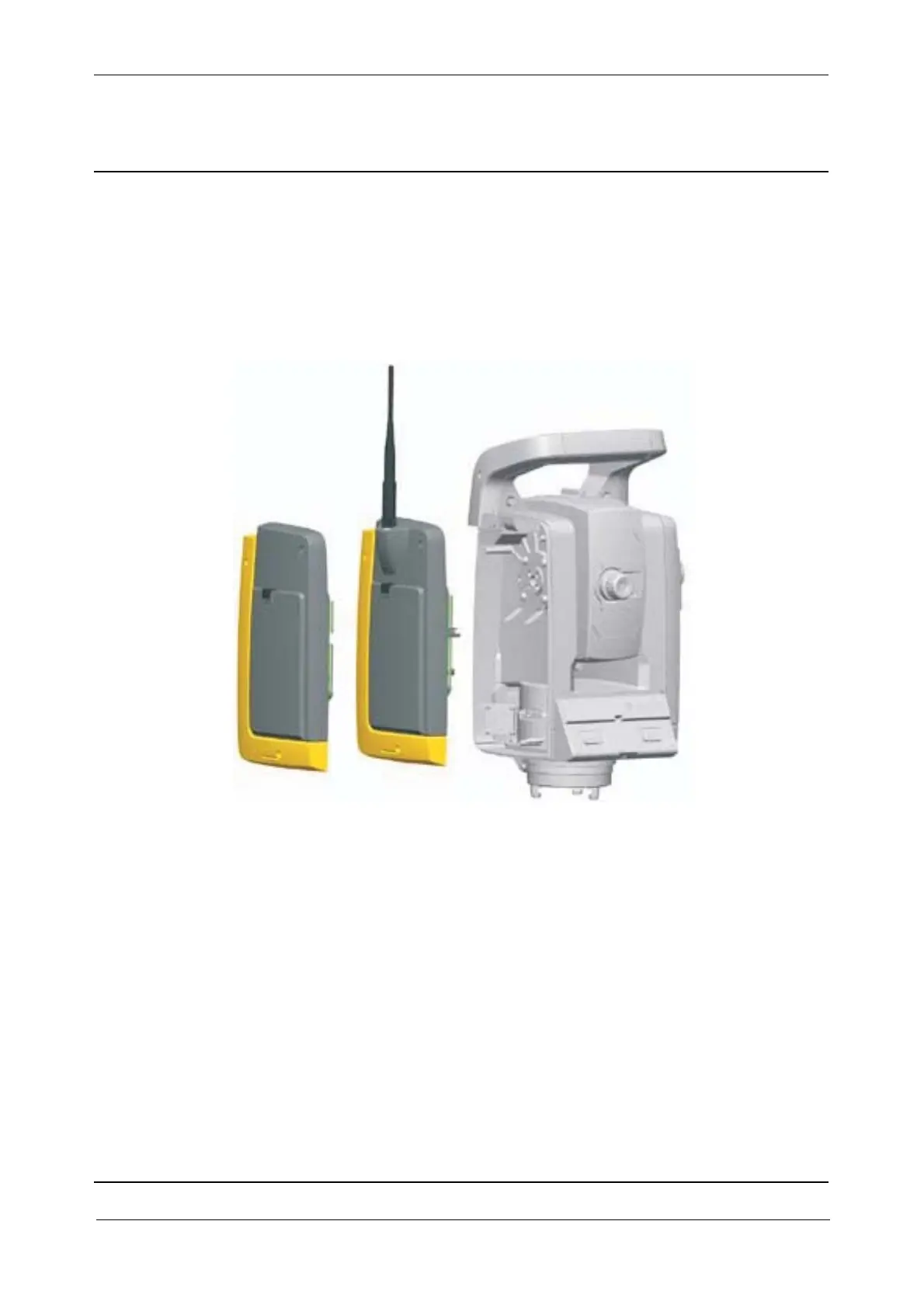

Fig. 3-7 Battery or radio side cover location
Detailed function description
The battery / radio side cover includes:
• Internal battery compartment
• BRC board incl. connector to internal battery
• Radio module incl. antenna and cable
Battery
side cover
Radio
side cover
