Chapter 5
Maintenance and Repair
P/N 57150002, Revision 5.0 5 - 15 Trimble S, VX, SPS & RTS Service Manual
F
Servo side cover
• Servo side cover replacement
• KNB board and trigger key replacement
Tools and equipment
Servo side cover replacement
Performance
Description Part number
Torque wrench 120 Ncm T71600280
Torx T10 bit Local tool
Item Performance Action Results Notes
1 Replace servo side
cover
A. Remove the three
screws and the cable.
B. Replace cover and
connect cable.
C. Mount the three screws
incl. washers.
35 Ncm. Use a torque wrench
with a torx T10 bit.

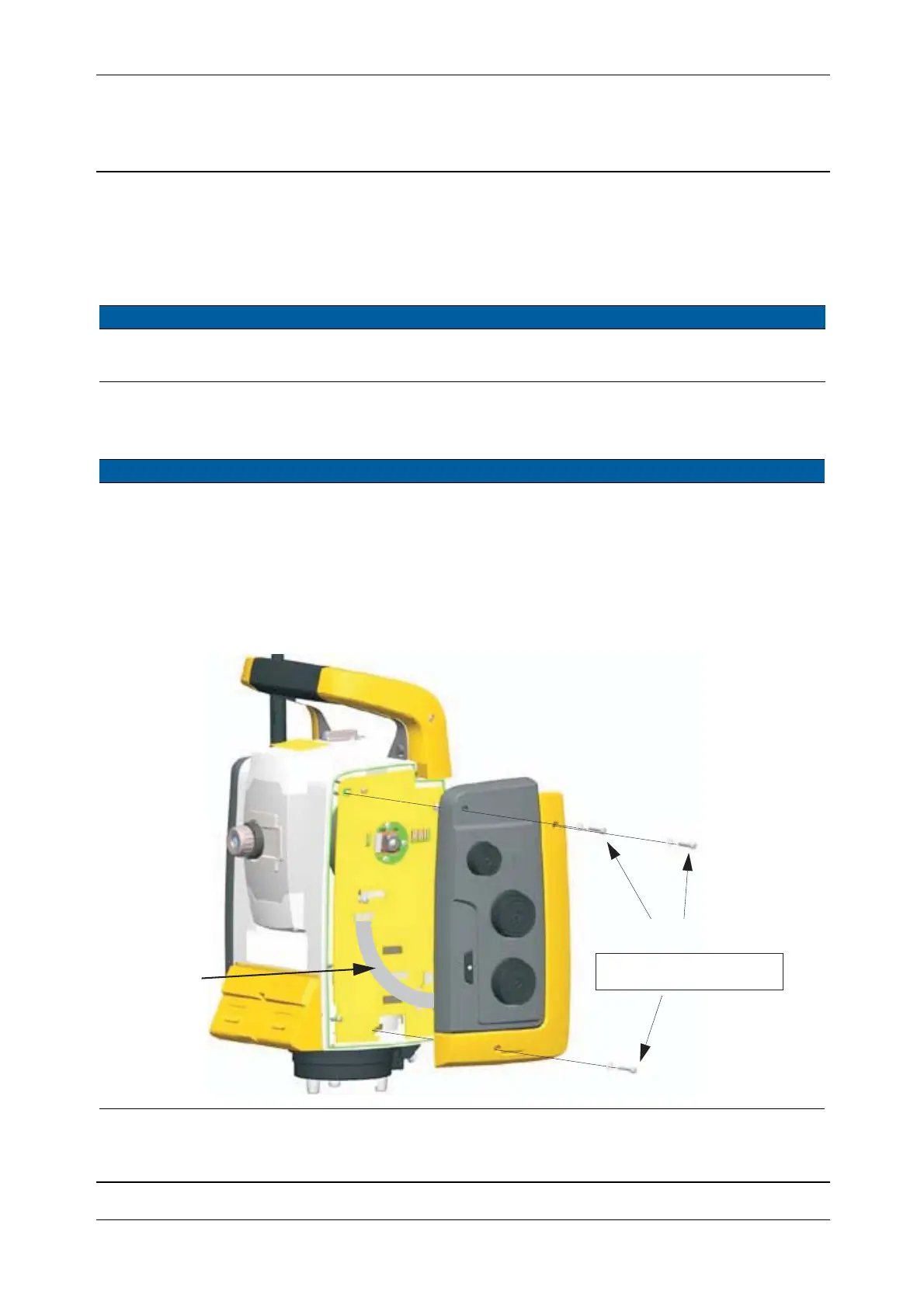

Fig. 5-17 Servo side cover replacement
Cable
35 Ncm / 3.1 lbfin
A&C
