Trimble S - Tracklight; Tracklight alignment

Chapter 6
Adjustment and verification
P/N 57150002, Revision 5.0 6 - 149 Trimble S, VX, SPS & RTS Service Manual
F
Tracklight
• Tracklight alignment
Tools and equipment
Tracklight alignment
Performance
Description Part number
Prism Local tool
Item Performance Description Result Notes
1 Start up instrument /
PASS.
See page 7-3 how to set-up
the instrument.
2 Start the test. Select
Tracklight from
Tracklight in Maintenance
& Service
, see Fig. 6-161
on page 6-149 .
3 Prepare for tracklight
alignment.
A. Place the instrument on
the collimator and aim
to the cross hair.
B. Select Adjustment
tracklight
check box.

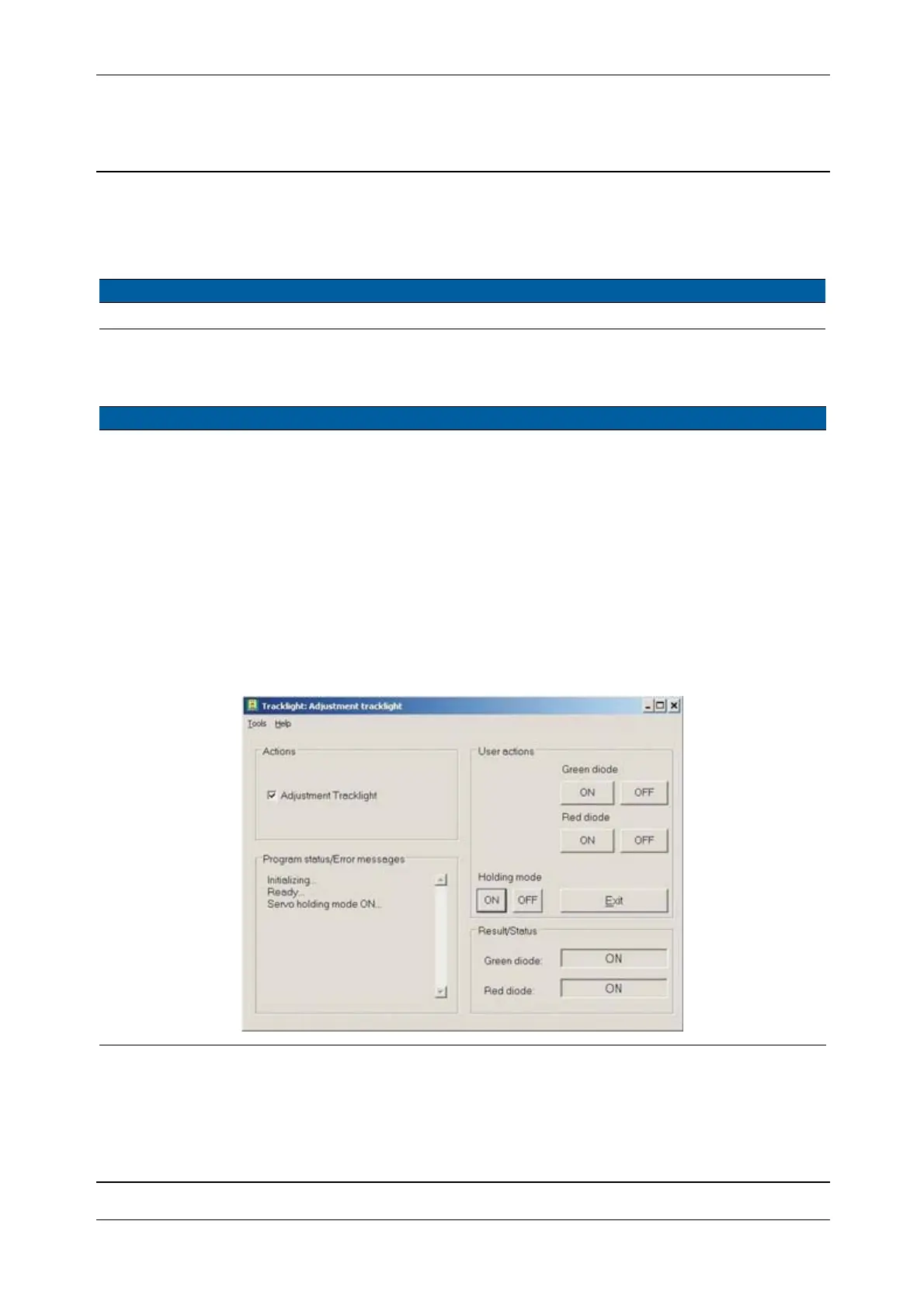

Fig. 6-161 Software dialogue adjustment Tracklight
