Trimble S - Centre Unit - High Precision; DR Standard; DR

Chapter 8
Replacement Parts & Tooling
Trimble S, VX, SPS & RTS Service Manual8 - 20 P/N 57150002, Revision 5.0
F

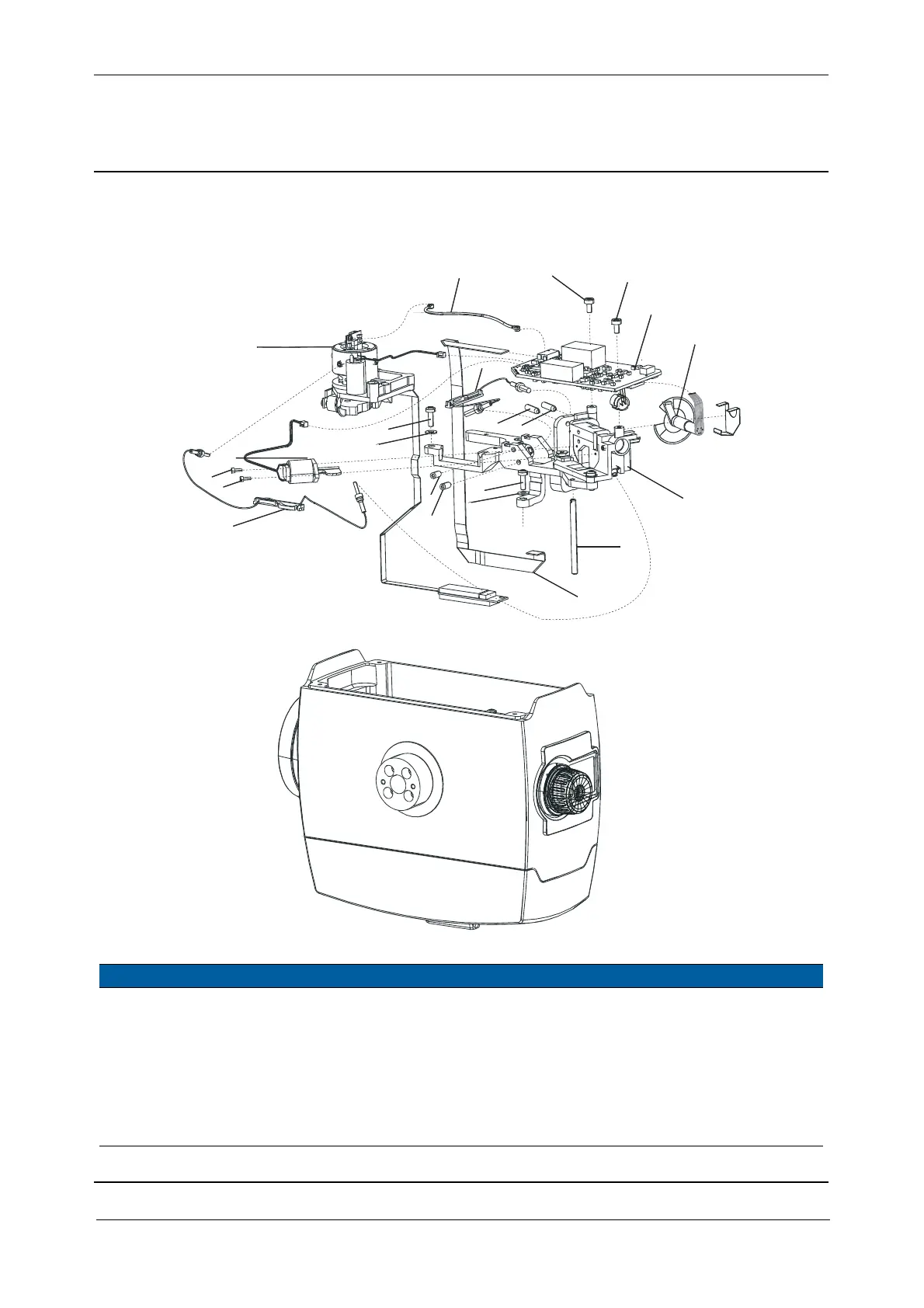

Centre Unit - High Precision / DR Standard / DR
Centre Unit - High Precision
Item Description Part Number Qty
1 Transmitter unit EDM High Precision - RoHS 79916019 1
1 Transmitter unit EDM DR 59078025 1
2 Switch motor - RoHS 79725019 1
3 Package screw M1 4x4, 20p 79000288 2
4 Reference fibre 79847001 1
5 Package screw M2,5 x 8 A2 - 70, 20p 79000170 3
1
2
4
5
6
7
7
5
6
8
9
10
11
12
13
13
14
15
7
7
3
3
