Trimble S - Check reference fibre

Chapter 6
Adjustment and verification
Trimble S, VX, SPS & RTS Service Manual6 - 76 P/N 57150002, Revision 5.0
F
Check reference fibre
Note – To evaluate if adjustment of the reference signal should be made, a warm up of 30 min. must
be made.
Performance
Item Performance Description Result Notes
1 Start up instrument /
PASS.
See page 7-3for how to
set-up the instrument.
2 Start reference signal
adjustment software.
Select
APD / Reference
fibre
from EDM in
Maintenance & Service,
see Fig. 6-84.
3 Prepare reference fibre
check.
A. Mount light cover
front lens, see Fig. 6-
76.
B. Select
Reference fibre
check
check box.
C. Click
Start Test button.
D. Click
OK button, this is
only a test, no
adjustment should be
made.

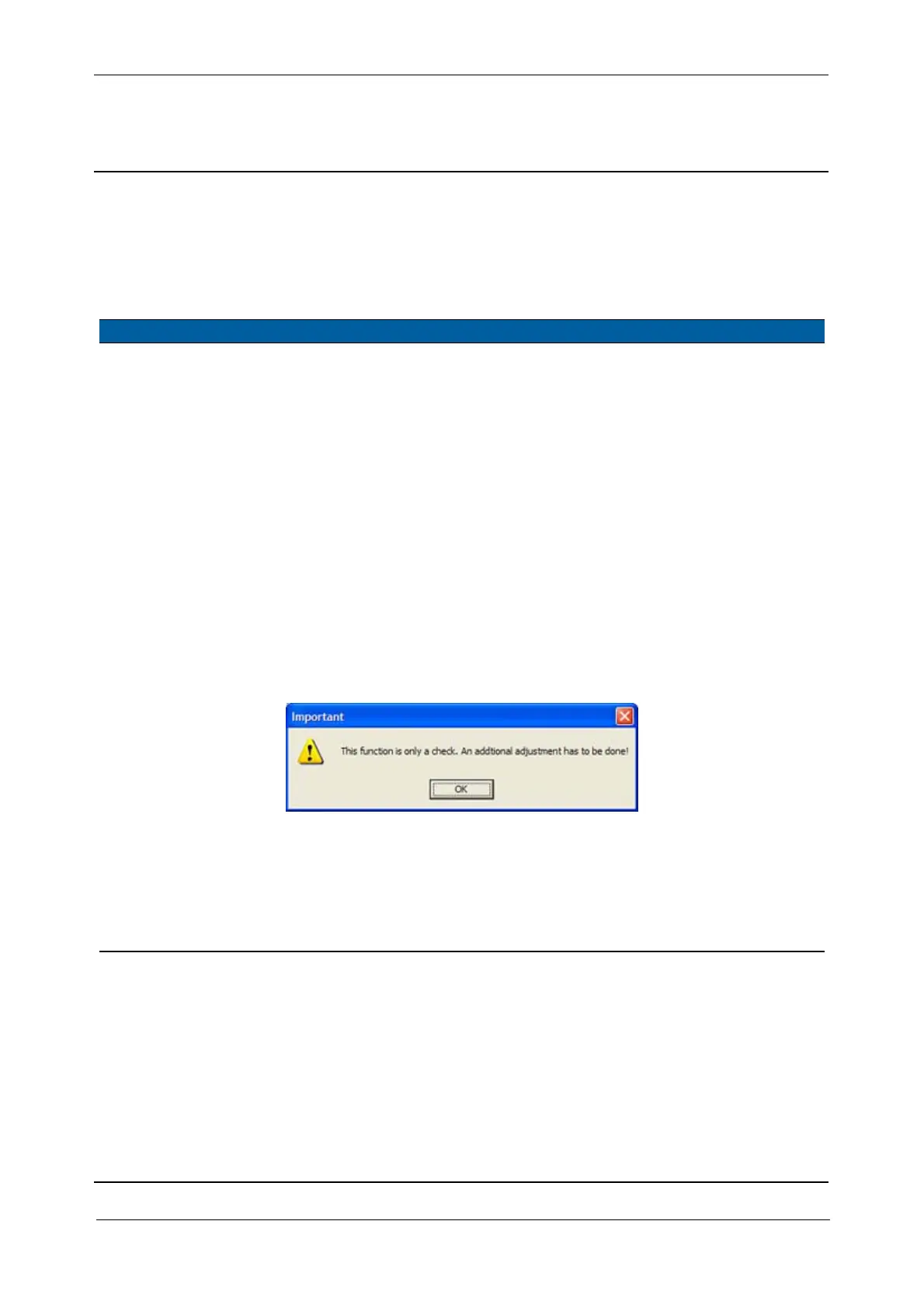

Fig. 6-83 Reference fibre test info
4 Check reference fibre. A. Observe the reference
fibre signal.
B. Click
Stop when
finished, see Fig. 6-84
on page 6-77 .
Note – To evaluate if
adjustment of the
reference signal
should be made, a
warm up of 30 min.
must be made.
