Chapter 6
Adjustment and verification
P/N 57150002, Revision 5.0 6 - 199 Trimble S, VX, SPS & RTS Service Manual
F
Remote control power test - Trimble S8
A test to verify the function to switch instrument between ON and STANDBY mode via cable/radio
connection (PSM3R board).
Tools and equipment
Performance
Description Part number
Cable stub 0,05m Hirose (H6-H6) 53094001
Item Performance Description Result Notes
1 Test Remote control
function.
A. Connect cable
53094001 to the
instruments COM
connector.
B. Connect power to the
instruments 12V
connector.
The instrument
should start
when power is
connected.
If instrument does not
start when power is
connected, check that
a PSM3R board is
mounted or replace
the PSM3R board.

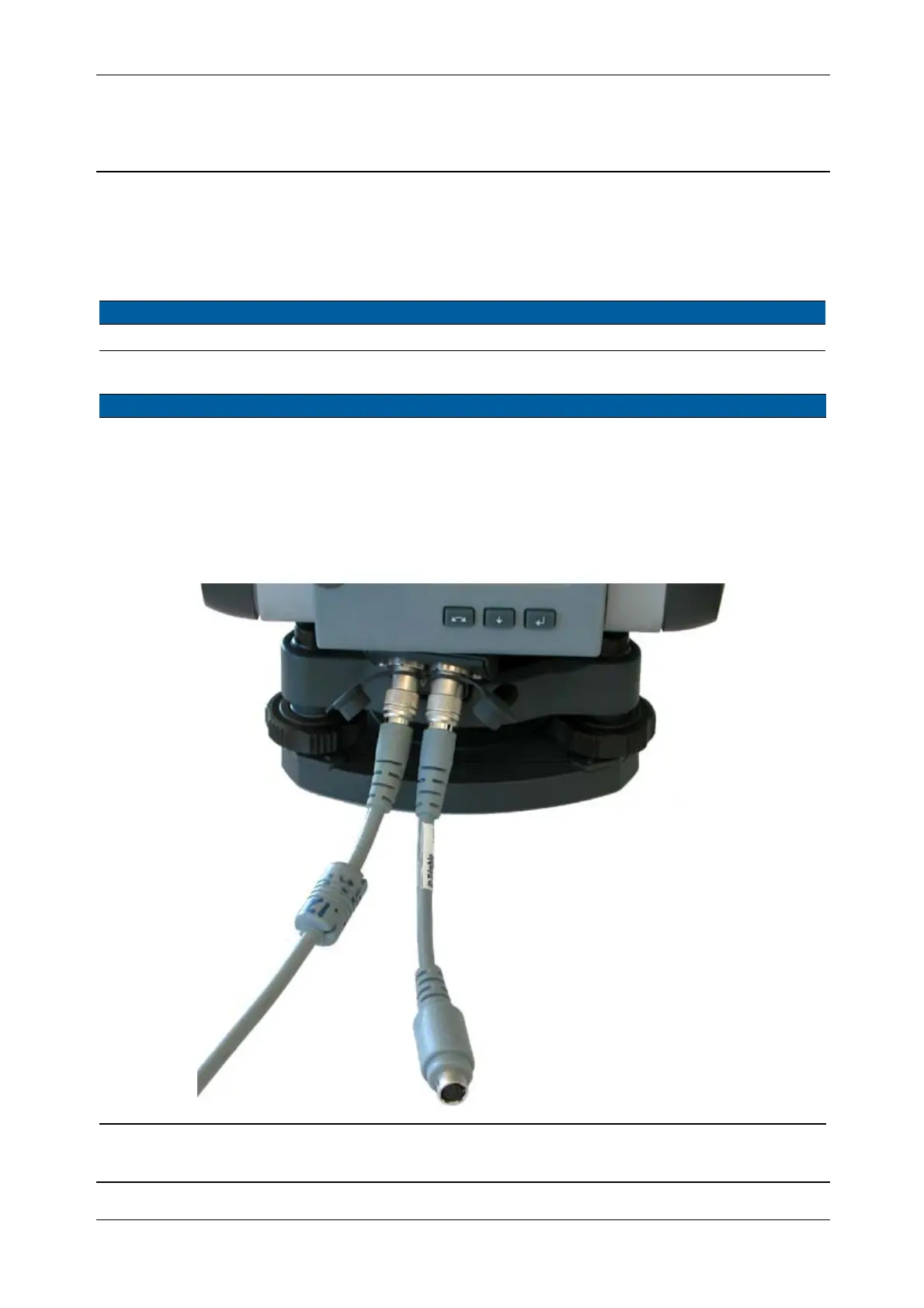

Fig. 6-206 Remote control power test
To Next Page
