Chapter 8
Replacement Parts & Tooling
Trimble S, VX, SPS & RTS Service Manual8 - 24 P/N 57150002, Revision 5.0
F

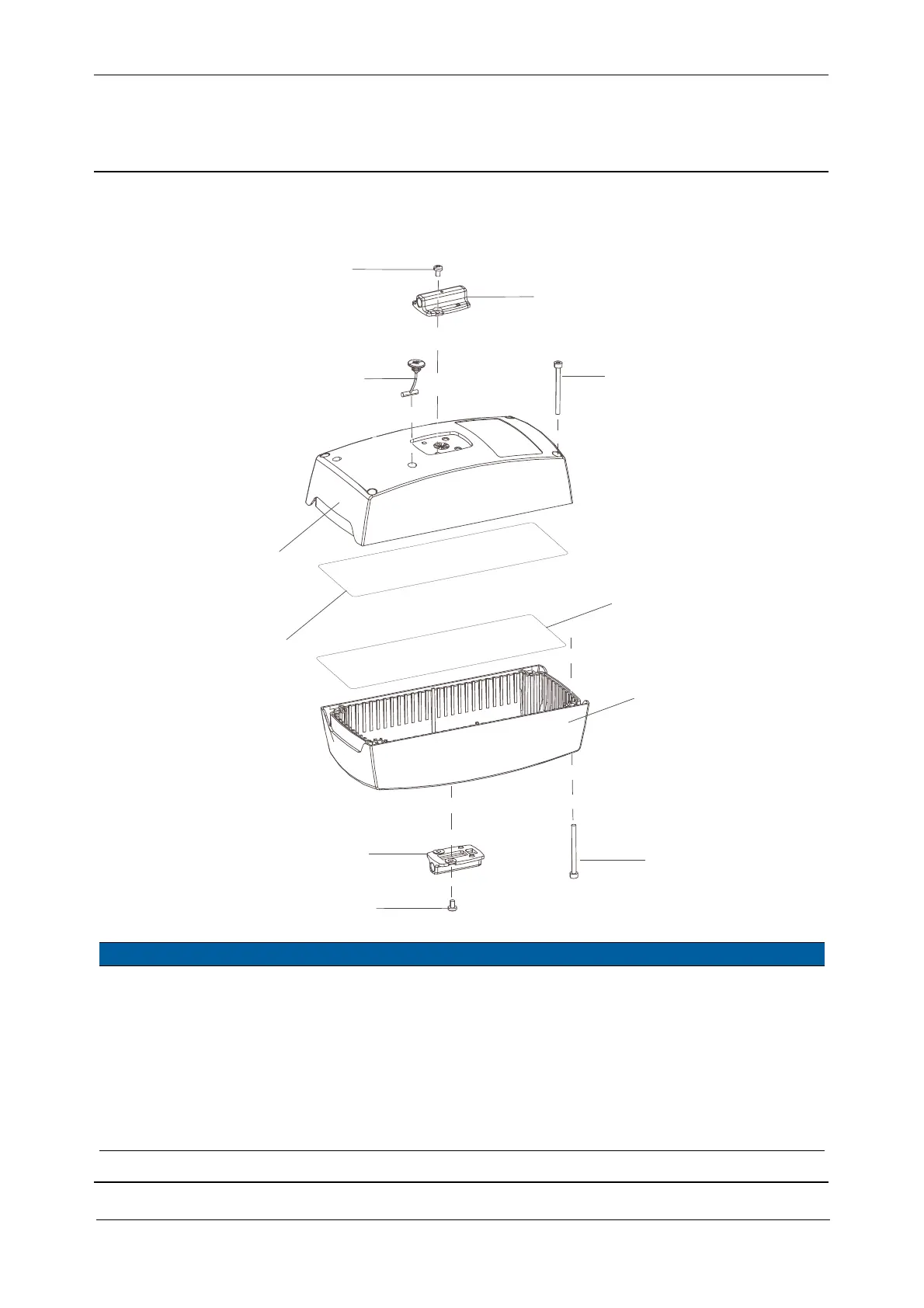

Centre Unit - Covers
Centre Unit - Covers
Item Description Part number Qty
1 Package screw ISO1483 - M2,5 x 4 A2-70, 20p 59000263 4
2 Coarse sight 79623001 2
3 Package screw ISO1458 - M2,5 x 30 A2 - 70, 20p 59000255 8
4 Rubber plug 79007285 2
4 Package rubber plug yell, 20p 59075025 2
5 Cover upper Dist. Meter 79621001 1
5 Cover upper Dist. Meter yellow 59076025 1
1
2
3
4
5
6
7
3
1
2
7
