Chapter 8
Replacement Parts & Tooling
Trimble S, VX, SPS & RTS Service Manual8 - 2 P/N 57150002, Revision 5.0
F

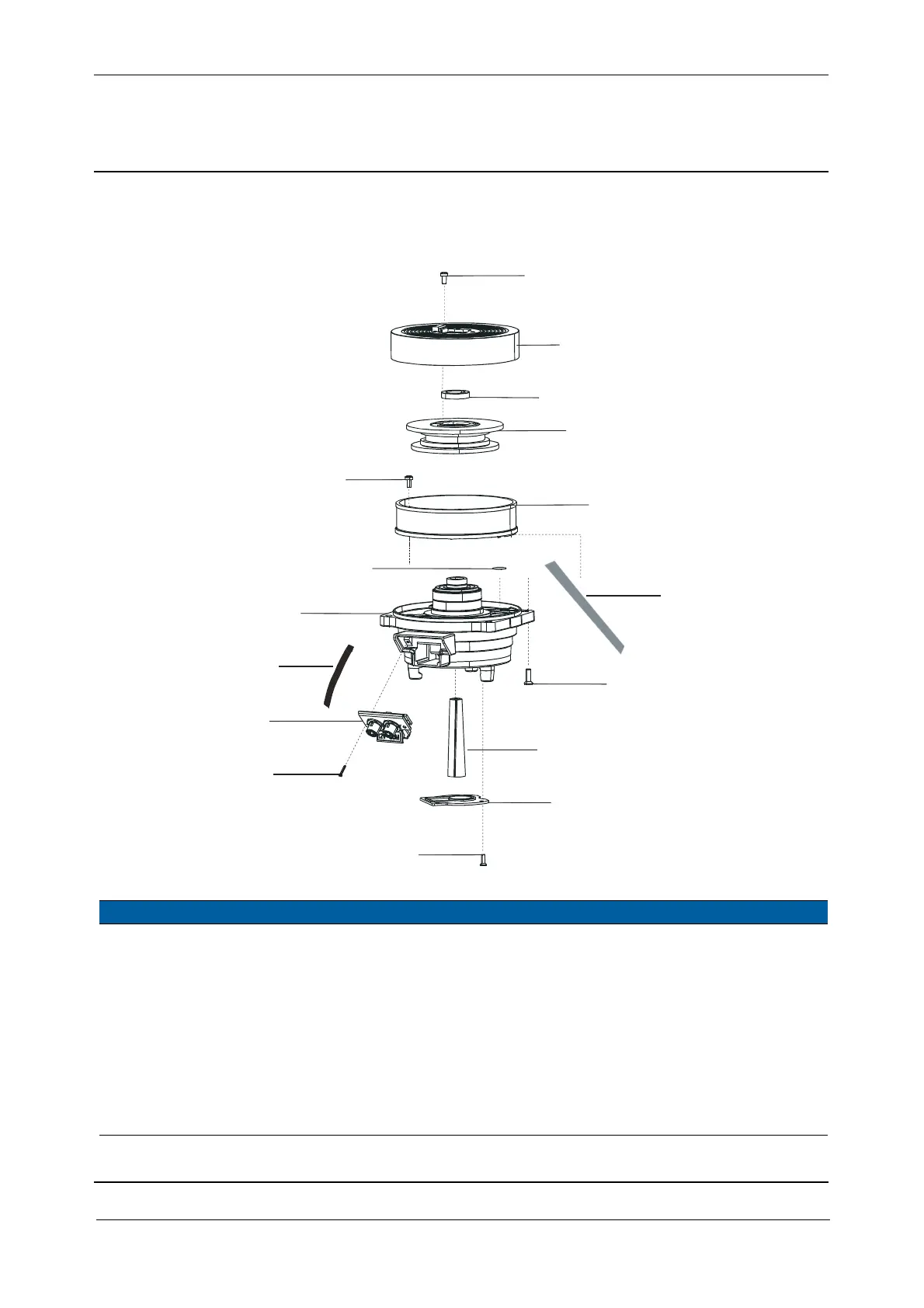

Horizontal Turning Unit
Horizontal turning unit
Item Description Part number Qty
1 Package screw M3 x 6 A2-70, 20p 59000171 3
2 Board SRC incl. magnets - RoHS 59016019 1
3 Nut to fasten angle unit 59114001 1
4 Angle disc - horizontal 59107001 1
5 Package screw M3 x 6 A2-70, 20p 59000171 4
6 Board MSB incl. winding - RoHS 59118019 1
7 Gore-tex vent, 10,2 x 5,5mm R71908466 1
8 Package cable IPC - MSB, 5p 59104002 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
