Chapter 4
Troubleshooting
P/N 57150002, Revision 4.0
4 - 7
Trimble S6, S8, VX, SPS & RTS Service Manual
F
Check Units
Select
Check units
check box.
Start
buttons for sensors: Tilt, Angle, Servo & Servo focus will be active.

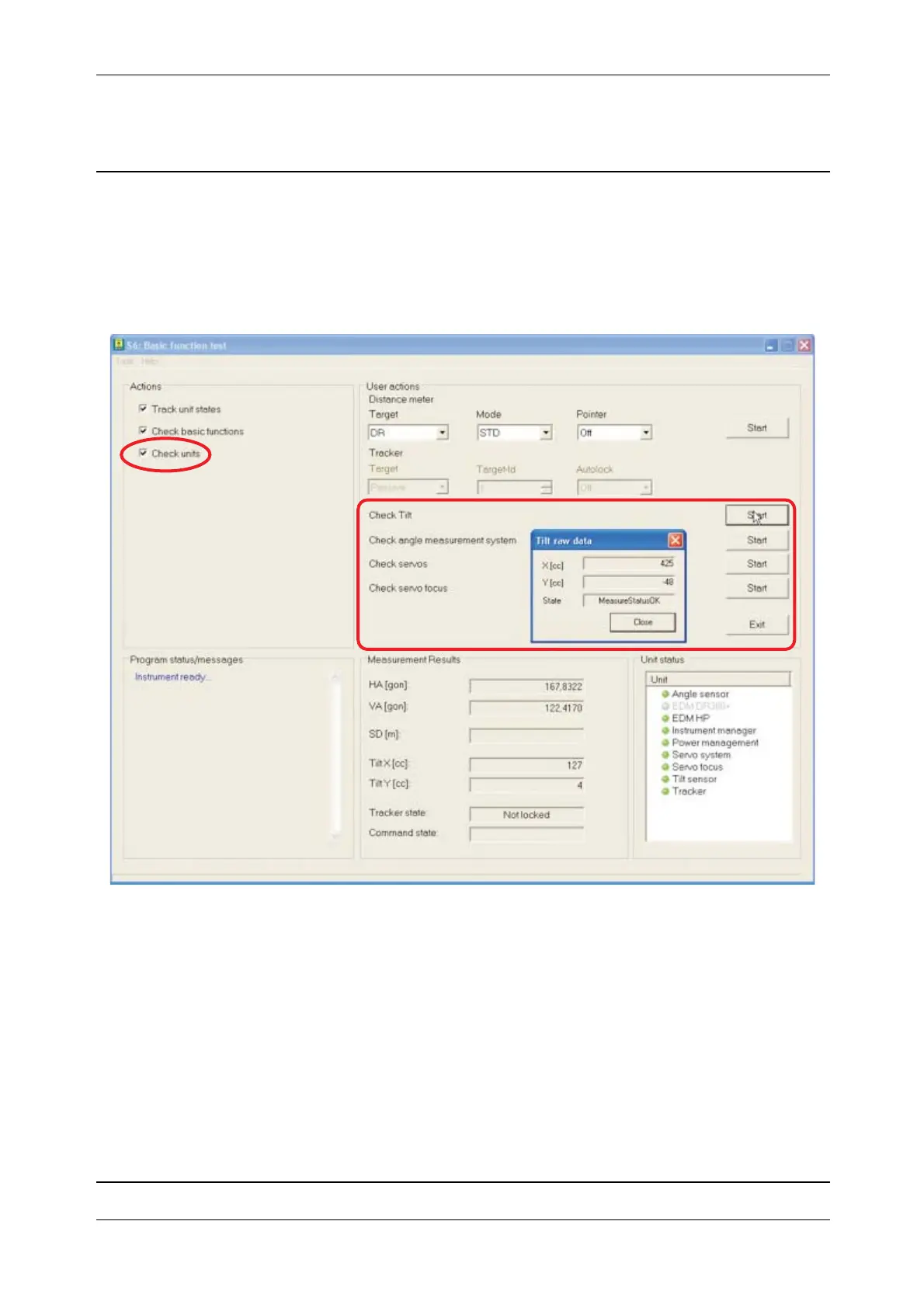

Fig. 4-6 Check units
168
170
