Chapter 6
Adjustment and verification
Trimble S, VX, SPS & RTS Service Manual6 - 138 P/N 57150002, Revision 5.0
F
Check of tracker crosstalk
Performance
Item Performance Description Result Notes
1 Start up instrument /
PASS.
See page 7-3 how to set-
up the instrument.
To perform this
determination the
Tracker system has to
be working
2 Start the test. Select
Check tracker
function/Crosstalk
from
Tracker in Maintenance &
Service,
See Fig. 6-149 on
page 6-138 .
EDM
transmitter will
switch off.

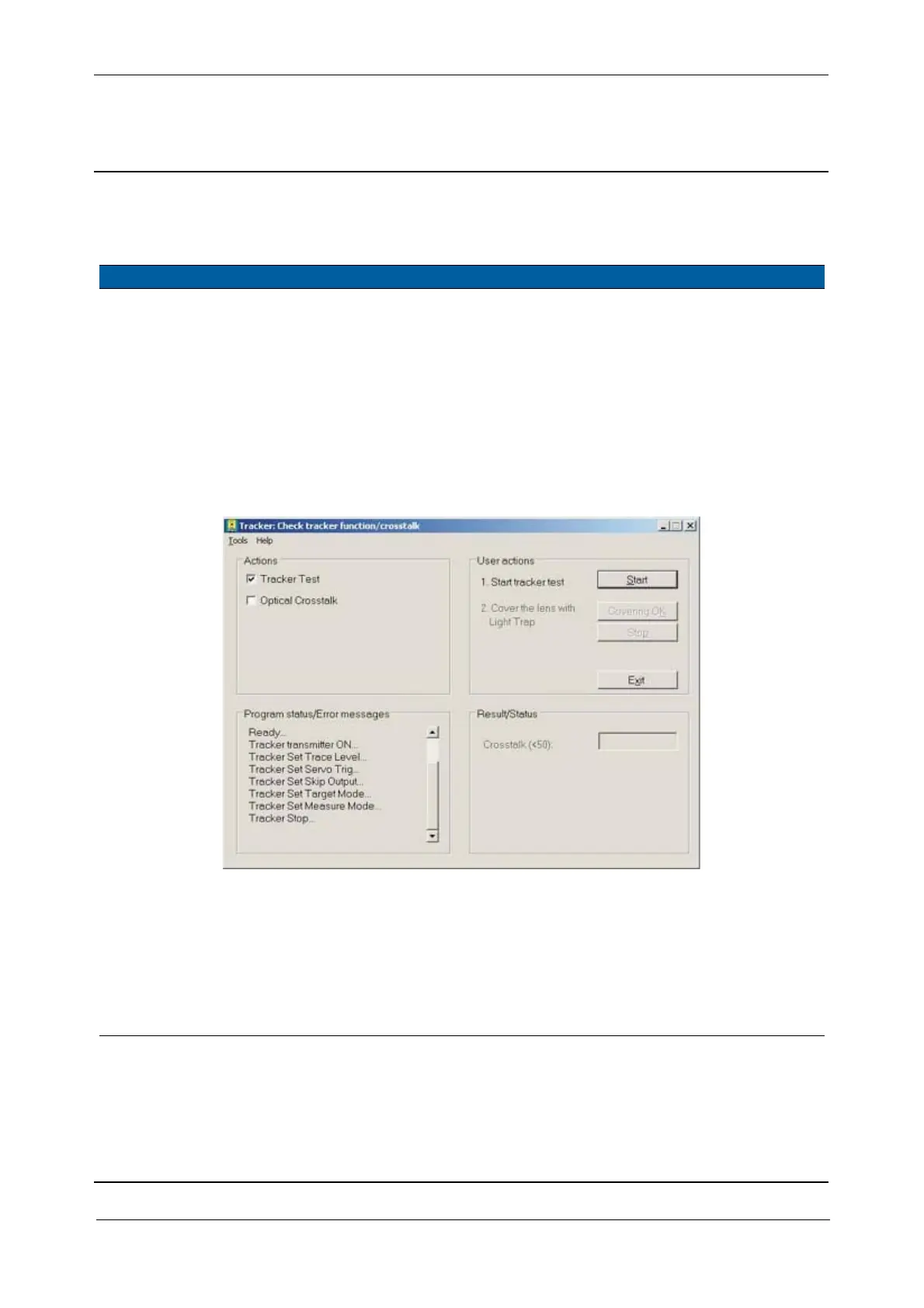

Fig. 6-149 Verify tracker repair
3 Prepare check of
optical crosstalk
Cover the lens with the
light trap
Light trap tool,
79700001
4 Measure optical
crosstalk
Select optical crosstalk
check box and click
Start.
If tolerance is not reached
go to chapter
troubleshooting.
50
