Trimble S - Handle; Replacement of locking screw

Chapter 5
Maintenance and Repair
Trimble S, VX, SPS & RTS Service Manual5 - 8 P/N 57150002, Revision 5.0
F
Handle
• Replacement of locking screw
• Replacement of handle parts
Tools and equipment
Replacement of locking screw
Performance
Description Part number
Torque wrench 120 Ncm T71600280
Torx T10& T30 bit Local tool
Item Performance Action Results Notes
1 Remove handle.
2 Remove screws A. Remove the two
locking washers.
B. Remove the two
screws.
Use Torx T30 bit or
the tool in the
carrying case.

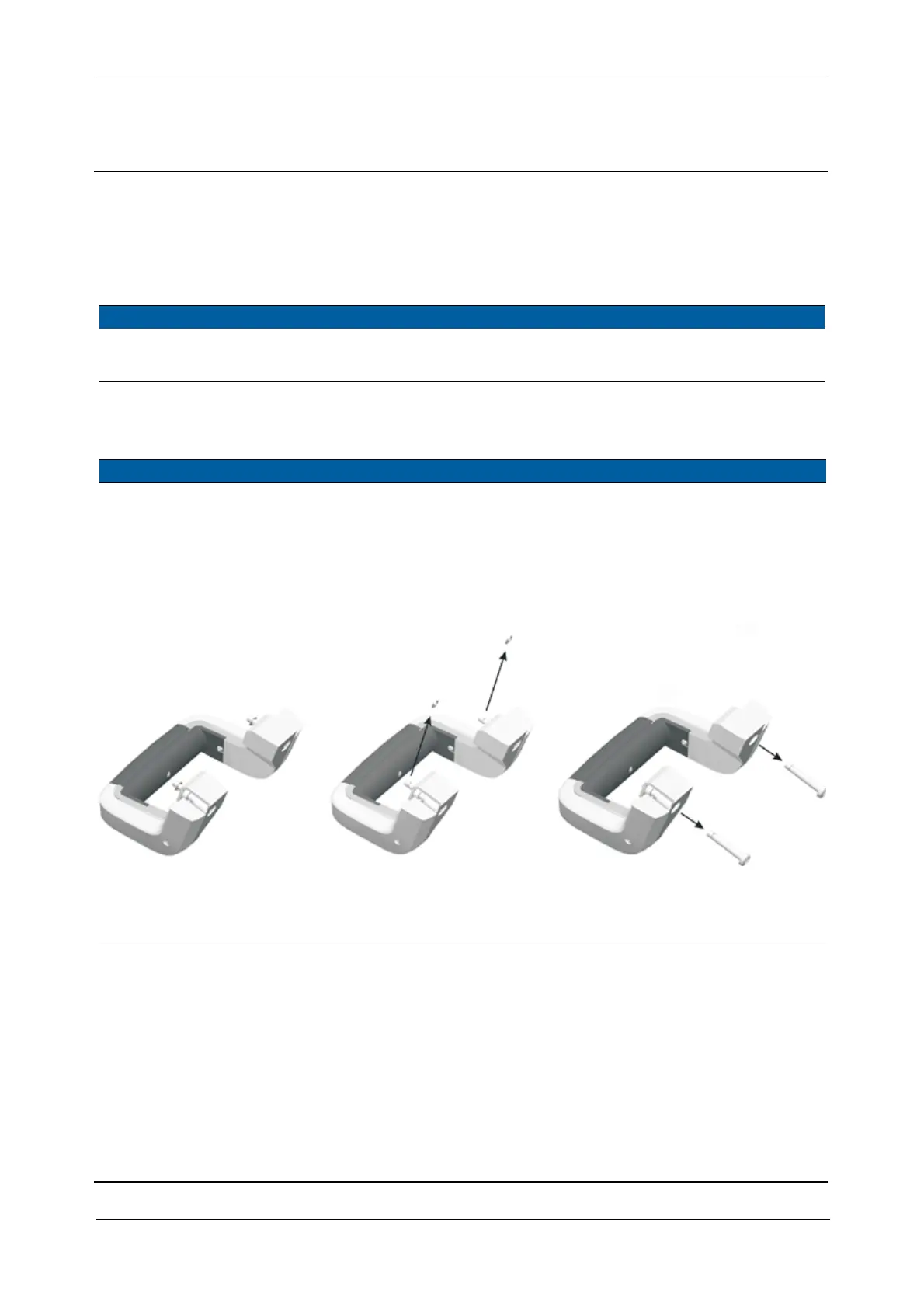

Fig. 5-10 Remove Torx screws
3 Mount new screw. A. Mount the two screws.
B. Mount the two locking
washers.
AB
