Chapter 3
Theory of Operation
P/N 57150002, Revision 5.0 3 - 9 Trimble S, VX, SPS & RTS Service Manual
F

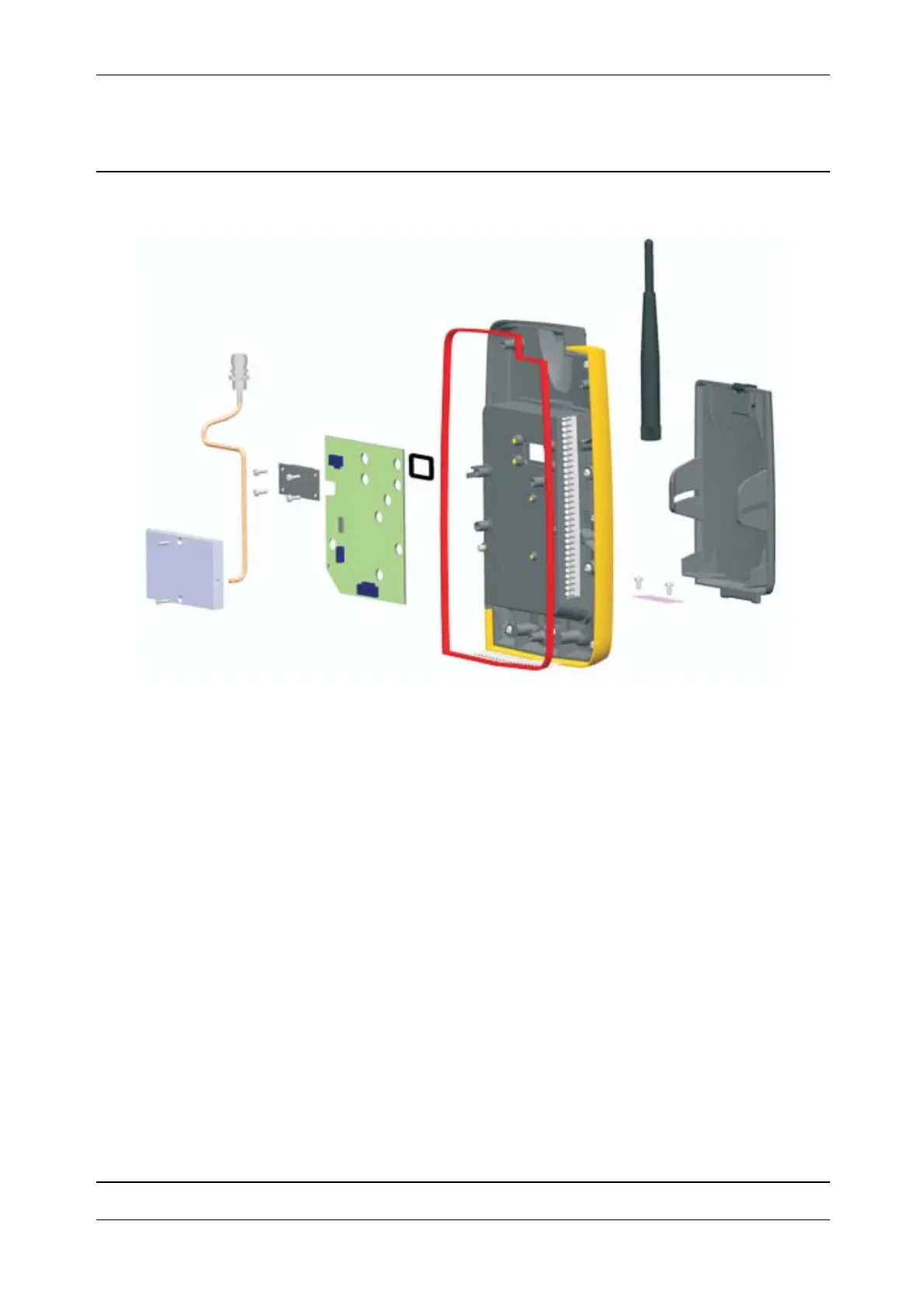

Fig. 3-8 Battery / radio side cover exploded
Internal battery compartment
One function of the side cover is to carry the internal battery unit that support the instrument. This
battery unit slides inside the battery lid and when the cover is closed and locked by Snap lock it will
make contact to the connector on the BRC board mounted in the side cover.
