Trimble S User Manual

Chapter 5
Maintenance and Repair
Trimble S, VX, SPS & RTS Service Manual5 - 64 P/N 57150002, Revision 5.0
F
Accelerometer replacement
Performance
Item Performance Action Results Notes
1 Remove radio / battery
side cover.
See page 5-10.
2 Remove TCU
attachment.
See page 5-20.
3 Replace
accelerometer.
A. Remove the four
screws and remove the
cable.
B. Replace accelerometer
and mount screws and
cable.
35 Ncm. Use a torque wrench
with a torx T10 bit.

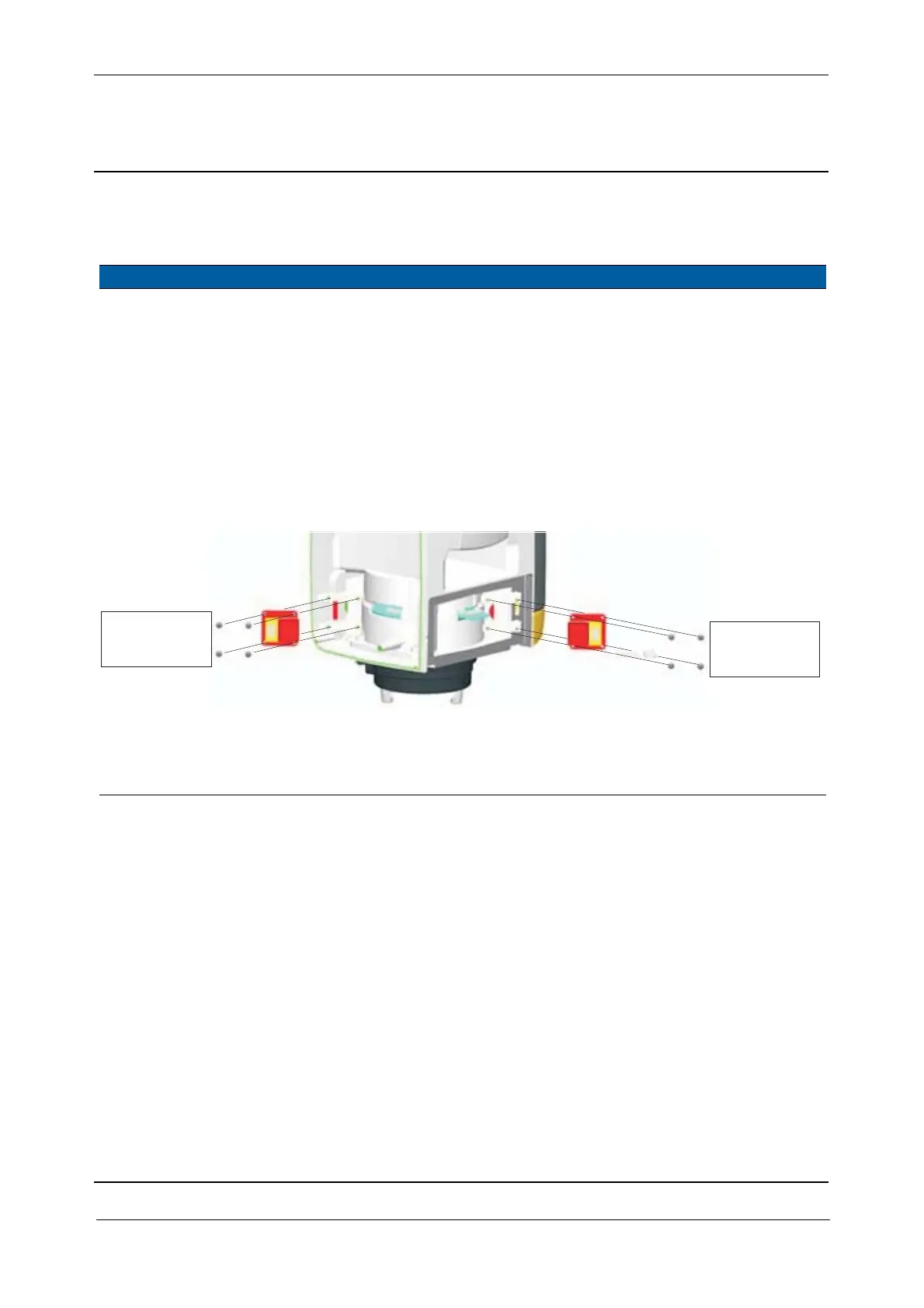

Fig. 5-62 Accelerometer replacement
4 Mount TCU
attachment.
See page 5-20.
5 Mount side cover. See page 5-15.
Front accelerometer
Side accelerometer
35 Ncm /
3.1 lbfin
35 Ncm /
3.1 lbfin
No 1
No 2
