Trimble S User Manual

Chapter 8
Replacement Parts & Tooling
Trimble S, VX, SPS & RTS Service Manual8 - 12 P/N 57150002, Revision 5.0
F

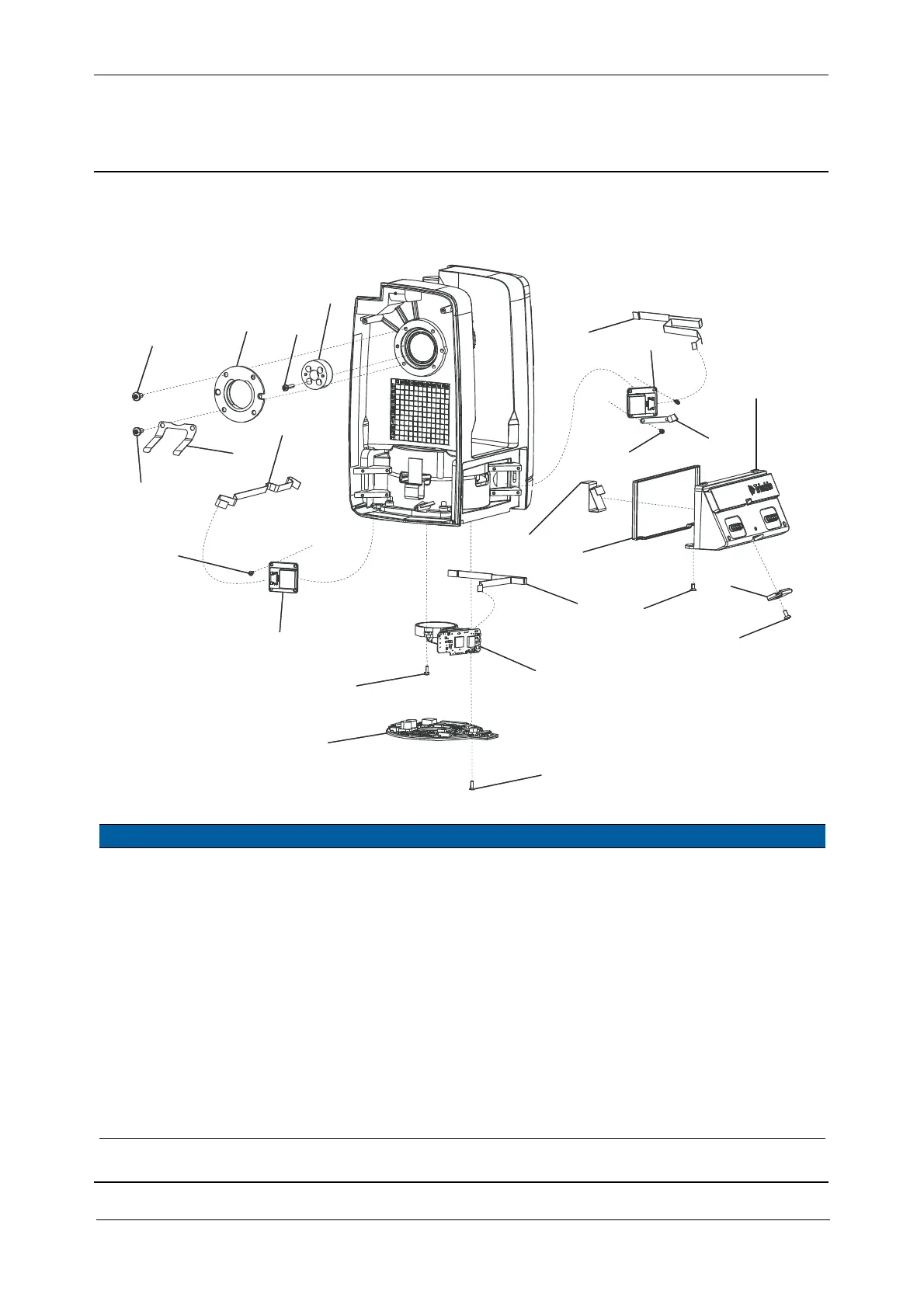

Alidade Left incl. TCU Attachment
Alidade Left
Item Description Part number Qty
1 Package screw M4 x 8 A2-70, 20p 59000175 4
2 Spring flat BRC 59055002 1
3 Bearing for v-axis NA 1
4 Package screw M3 x 14 A2-70, 20p 59000173
5 v-axis battery side NA 1
6 Package cable IPC - Accelerometer, 5p 59031002 2
7 Package screw M2 x 6 A2-70, 20p 59000179 8
8 Accelerometer - RoHS 59030019 2
9 Package cable tilt sensor - IPC, 5p 59183001 1
10 Tilt sensor - RoHS 79900019 1
11 Package screwM2,5 x 6 A2-70, 20p 59000169 3
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
17
18
19
20
7
6
8
15
