Chapter 6
Adjustment and verification
P/N 57150002, Revision 5.0 6 - 15 Trimble S, VX, SPS & RTS Service Manual
F
TCU connection
Performance
Fig. 6-10 USB Memory stick - Hard Disk
4 Copy file from USB
Memory stick to TCU
or vice versa.
A. Use Copy/Paste
function from the Edit
tool bar to copy a file.
B. Verify the file transfer.
Use any file or create
a text file for the file
trashiness test.

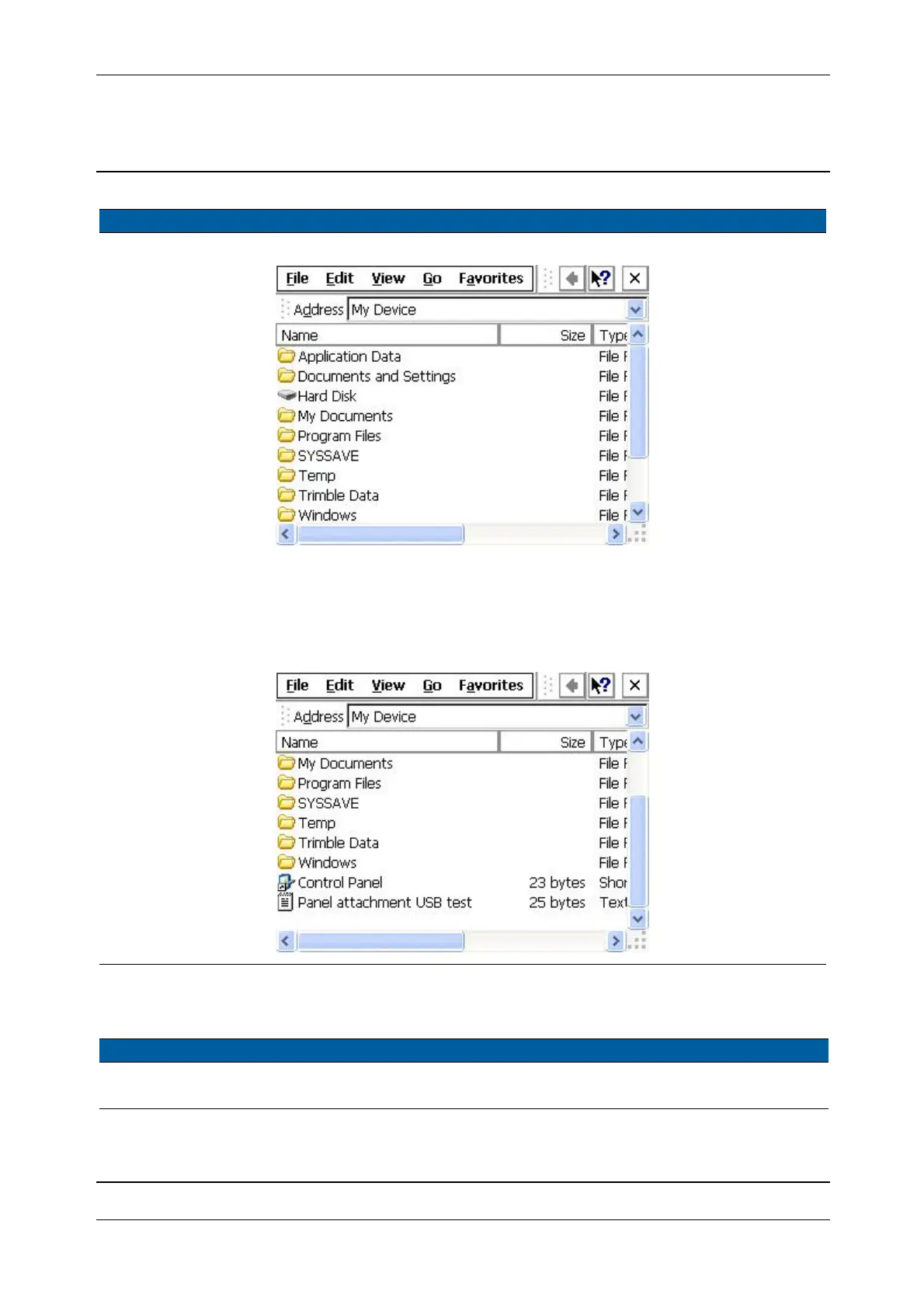

Fig. 6-11 Windows Explorer in TCU Controller
Item Performance Description Result Notes
1 Start up instrument /
PASS.
See page 7-3 how to set-up
the instrument.
