Chapter 6
Adjustment and verification
P/N 57150002, Revision 5.0 6 - 109 Trimble S, VX, SPS & RTS Service Manual
F
Adjustment of reference fibre

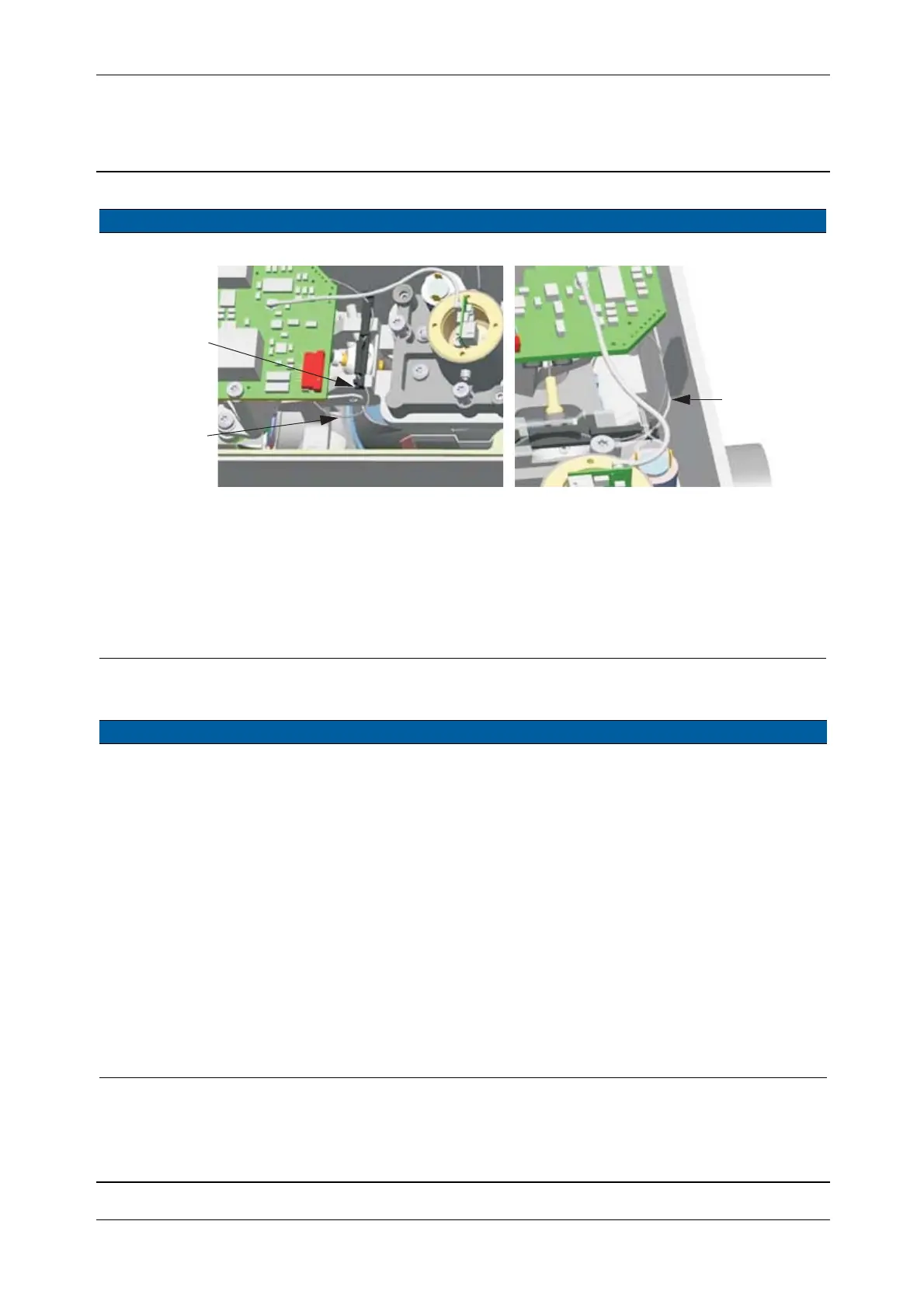

Fig. 6-123 Receiver fibre and receiver fibre holder position
7 Exit software. A. Remove Scattered light
device with adapter.
B. Click
Exit.
8 Adjust reference fibre. See page 6-109, item. 4 for
instructions.
9 Perform offset
determination.
See page 6-120.
Item Performance Description Result Notes
1 Prepare instrument. Mount the instrument on
the Collimator bench or
on a stable base.
2 Start up instrument /
PASS.
See page 7-3 how to set-
up the instrument.
3 Start service software. Select
Reference fibre
adjustment
from EDM
High Precision
in
Maintenance & Service.
4 Mount tools. A. Click
Holding Mode
ON.
B. Mount Adapter S6
EDM High Precision
and Scattered light
device on the front
lens.
Item Performance Description Result Notes
Receiver
fibre holder
receiver
fibre
underneath
pad
Position
in line
with EDM
frame
A
B
C
Min. 15mm
radius
