Trimble S - Angle unit; Servo and angle sensor calibration; Set MSB board version

Chapter 6
Adjustment and verification
Trimble S, VX, SPS & RTS Service Manual6 - 28 P/N 57150002, Revision 5.0
F
Angle unit
• Servo and angle sensor calibration
• Set MSB board version
Tools and equipment
Servo and angle sensor calibration
See “Servo unit” on page 6-25. for instruction.
Set MSB board version
For information about MSB board compatibility see page 3-38.
Performance
Description Part number
PASS service software
Item Performance Description Result Notes
1 Start up instrument /
PASS.
See page 7-3 how to set-
up the instrument.
2 Run the software. A. Select
MSB board
version update
from
Servo & Angle unit in
Maintenance & service.
B. Follow instructions:
Enter MSB board
versions.

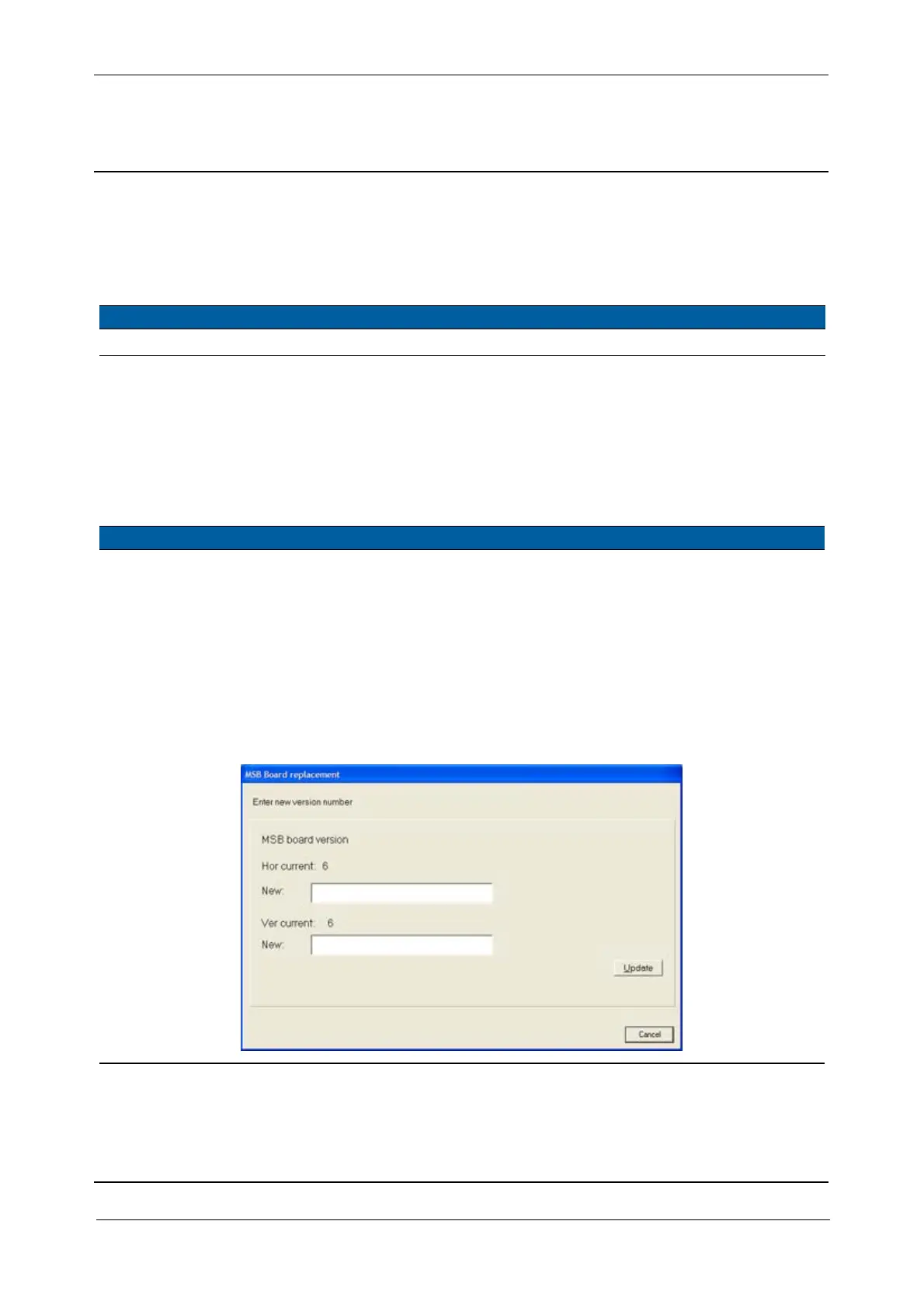

Fig. 6-19 Set correct version of MSB board
